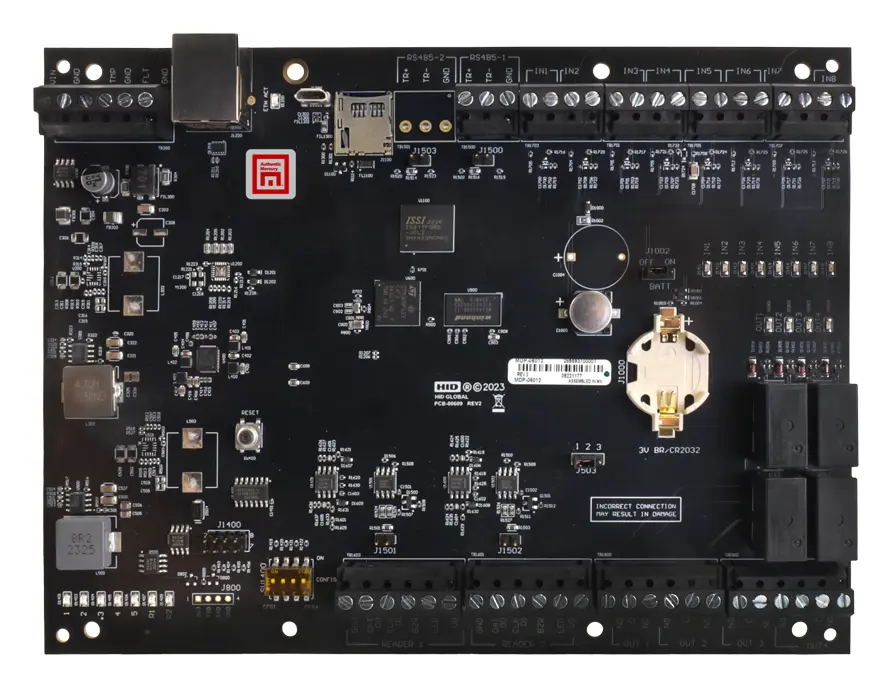

Avigilon AC-MER-CONT-LP4502 Geçiş Kontrol Paneli

ModelAC-MER-CONT-LP4502

Avigilon AC-MER-CONT-LP4502 geçiş kontrol paneli: Browser-based to manage anytime, anywhere, Automate responses with global actions, Security tailored to what you need most, End-to-end Motorola Solutions ecosystem, Build end-to-end responses.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Browser-based to manage anytime, anywhere
Automate responses with global actions
Security tailored to what you need most
End-to-end Motorola Solutions ecosystem
Build end-to-end responses
Invest in a secure future
See door events in one place
Simplify your security install

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 3 satır

Parça Numarası	AC-MER-CONT-LP4502
Ürün Ailesi	Mercury MP Intelligent Controller
Açıklama	Avigilon Unity - LP Series 4502 - Intelligent Controller

Teknik Özellikler 8 satır

Primary Power	12-24 Vdc +/- 10%, 550mA maximum (reader and USB current not included)
Reader Ports	600mA maximum (add 600 mA to primary power current)
Micro USB Port	5 Vdc, 500 mA maximum (add 270 mA to primary power current)
Battery	Memory/ Clock Backup: 3 Volt Lithium, type BR2330 or CR2330
Host Comm.	Ethernet: 10-BaseT/100Base-TX
Serial I/O Device	Two each: 2-wire RS-485, 2,400 to 115,200 bps, asynchronous, half-duplex, 1 start bit, 8 data bits, and 1 stop bit
Girişler	Eight unsupervised/supervised, standard EOL: 1k/1k ohm, 1%, ¼ watt. Two unsupervised dedicated for cabinet tamper and UPS fault monitoring
Output Relays	Four relays, Form C, NO 5 A @ 30 Vdc resistive, NC 3 A @ 30 Vdc resistive

Okuyucu Arayüzü 5 satır

Reader Power	12-24 Vdc +/- 10%, 300 mA maximum for each reader
Data Inputs	TTL compatible inputs, F/2F or 2-wire RS-485 standards supported
RS-485 Mode	9,600 to 115,200 bps, asynchronous, half-duplex, 1 start bit, 8 data bits, and 1 stop bit. Maximum cable length: 2000 ft. (609.6 m)
LED Output	TTL levels, high>3 V, Low
Buzzer Output	Open collector, 12 Vdc open circuit maximum, 40 mA sink maximum

Kablo Gereksinimleri 7 satır

Power and Relays	1 twisted pair, 18 to 16 AWG
Ethernet	CAT-5, minimum
Reader TTL	6-conductor, 18 AWG, 500 feet (150 m) maximum
Reader F/2F	4-conductor, 18 AWG, 500 feet (150 m) maximum
Reader RS-485	1 twisted pair, shielded. 24 AWG, 120 ohm impedance, 2,000 feet (610 m) maximum
RS-485 I/O Devices	1 twisted pair, shield. 120 ohm impedance, 24 AWG, 4,000 ft. (1,219 m) maximum
Alarm Input	1 twisted pair, 30 ohms maximum, typically 22 AWG @ 1000 ft. (304.8 m)

Çevresel 2 satır

Sıcaklık	55 to 85 °C storage, 0 to 70 °C, operating
Nem	5 to 95% RHNC

Mekanik 2 satır

Boyutlar	8.0 in. (203mm) W x 6.0 in. (152mm) L x 1.0 in. (25mm) H
Ağırlık	10.65oz (302 g) nominal, board only

Uyumluluk 1 satır

Product Compliance	UL294 Recognized*, FCC Part 15 Class A, CE Compliant, RoHS, NIST Certified Encryption

Genel bakış

Avigilon AC-MER-CONT-LP4502 kullanım alanları ve özellikleri.

Secure spaces smarter with Avigilon & Mercury, where powerful access meets top-tier reliability with integrated, end-to-end security.

Build end-to-end responses: Have a door event send alerts to your team’s radios with Orchestrate.
Invest in a secure future: Grow with confidence, and connect the pieces today for a safer tomorrow.
See door events in one place: View what’s happening at your door from anywhere with video integrations.
Simplify your security install: Avigilon hardware connects to Mercury controllers wirelessly for seamless deployments.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet – Avigilon Unity - LP Series 4502 - Intelligent Controller DatasheetPDF · AC-MER-CONT-LP4502

Sık sorulanlar

AC-MER-CONT-LP4502 hakkında kısa yanıtlar.

AC-MER-CONT-LP4502 fiyatı ne kadar?

AC-MER-CONT-LP4502 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
