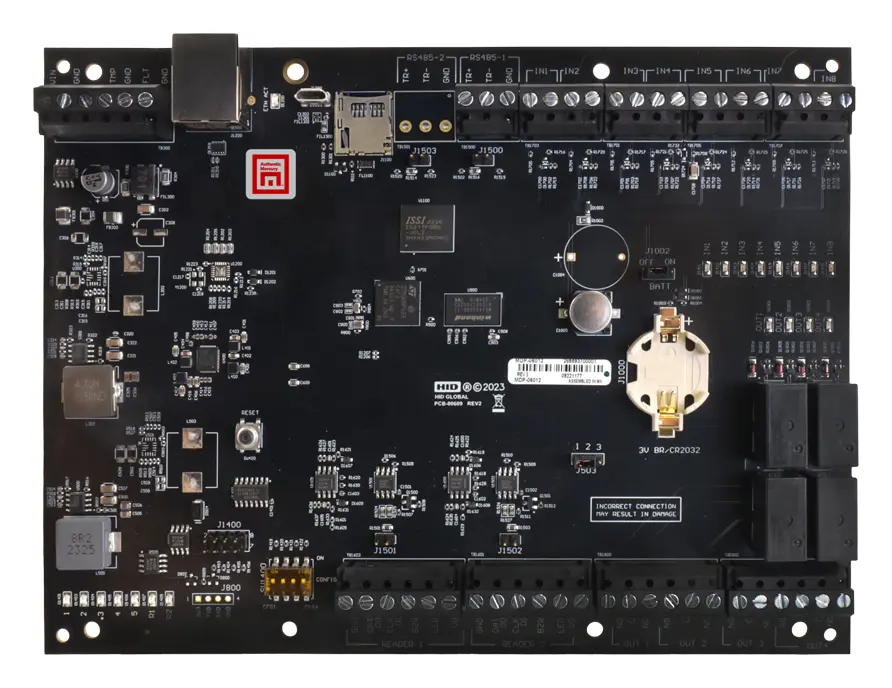

Avigilon AC-MER-CONT-MP2500 Geçiş Kontrol Paneli

ModelAC-MER-CONT-MP2500

Avigilon AC-MER-CONT-MP2500 geçiş kontrol paneli: Browser-based to manage anytime, anywhere, Automate responses with global actions, Security tailored to what you need most, End-to-end Motorola Solutions ecosystem, Build end-to-end responses.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Browser-based to manage anytime, anywhere
Automate responses with global actions
Security tailored to what you need most
End-to-end Motorola Solutions ecosystem
Build end-to-end responses
Invest in a secure future
See door events in one place
Simplify your security install

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 10 satır

Parça Numarası	AC-MER-CONT-MP2500
Ürün Ailesi	Mercury MP Intelligent Controller
Açıklama	Avigilon Alta - MP2500 Intelligent Controller
Geçiş Kontrolü	Supports total of 1 RS-485 IO protocol Activation/deactivation If/Then rule capabilities
Primary Power	12 to 24 VDC ± 10 %, 500 mA maximum (reader and USB ports not included)
Micro USB Port	5 VDC, 500 mA maximum (add 270 mA to primary power current)
Battery	Memory/Clock Backup: Super Capacitor (10 days). 3 Volt Lithium, type BR2330 or CR2330 slot available for additional capacity
Host Communication	Ethernet: 10-BaseT/100Base-TX and Micro USB port (2.0) with optional adapter: pluggable model USB2-OTGE100
Serial I/O Device	Two each: 2-wire RS-485, 2,400 to 115,200 bps, asynchronous, half-duplex, 1 start bit, 8 data bits, and 1 stop bit
Girişler	2 unsupervised dedicated for cabinet tamper and UPS fault monitoring

Kablo Gereksinimleri 5 satır

Header	Alarm Input
Data	1 twisted pair, 30 ohms maximum
Güç	1 twisted pair, 18 to 16 AWG
Ethernet	CAT-5, minimum
I/O Devices RS-485	1 twisted pair, shield, 120 ohm impedance, 24 AWG. 4,000 ft. (1,219 m) maximum cable length

Çevresel 2 satır

Sıcaklık	Storage: -55° to 85° C Operating: 0° to 70° C
Nem	5 to 95% RHNC

Mekanik 2 satır

Boyutlar	5 in. (127 mm) W x 6 in. (152.4 mm) L x 1 in. (25 mm) H
Ağırlık	4.1 oz. (115 gm) nominal, board only

Uyumluluk ve Garanti 1 satır

Product Compliance	UL 294 Recognized, FCC Part 15 Class A, CE Compliant, RoHS (2011/65/EU & 2015/863), EU REACH (1907/2006), California Proposition 65, NIST Certified Encryption (in process)

Genel bakış

Avigilon AC-MER-CONT-MP2500 kullanım alanları ve özellikleri.

Secure spaces smarter with Avigilon & Mercury, where powerful access meets top-tier reliability with integrated, end-to-end security.

Build end-to-end responses: Have a door event send alerts to your team’s radios with Orchestrate.
Invest in a secure future: Grow with confidence, and connect the pieces today for a safer tomorrow.
See door events in one place: View what’s happening at your door from anywhere with video integrations.
Simplify your security install: Avigilon hardware connects to Mercury controllers wirelessly for seamless deployments.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet – Avigilon Alta - MP2500 Intelligent Controller Datasheet - EnglishPDF · AC-MER-CONT-MP2500

Sık sorulanlar

AC-MER-CONT-MP2500 hakkında kısa yanıtlar.

AC-MER-CONT-MP2500 fiyatı ne kadar?

AC-MER-CONT-MP2500 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
