Hanwha Vision
XRP-4310DB4
Hanwha Vision
1 / 3

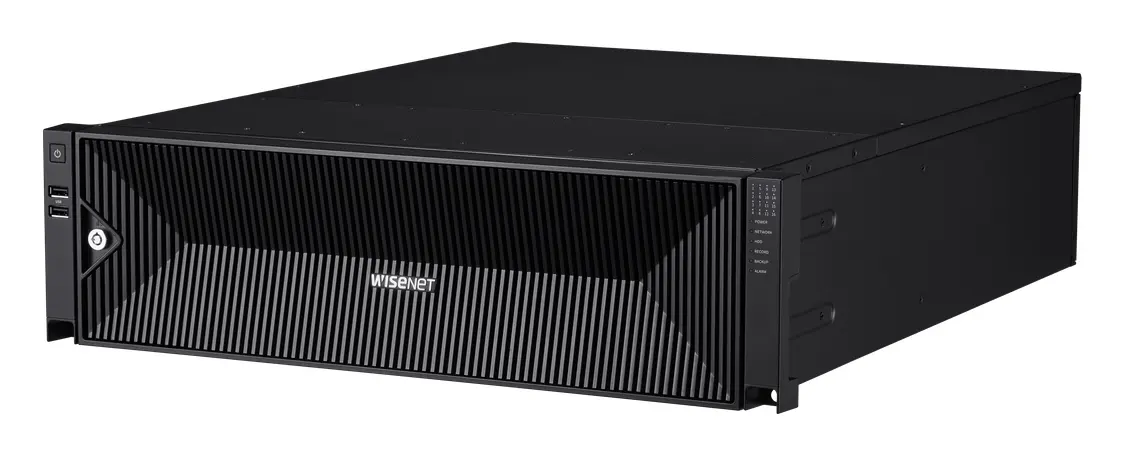

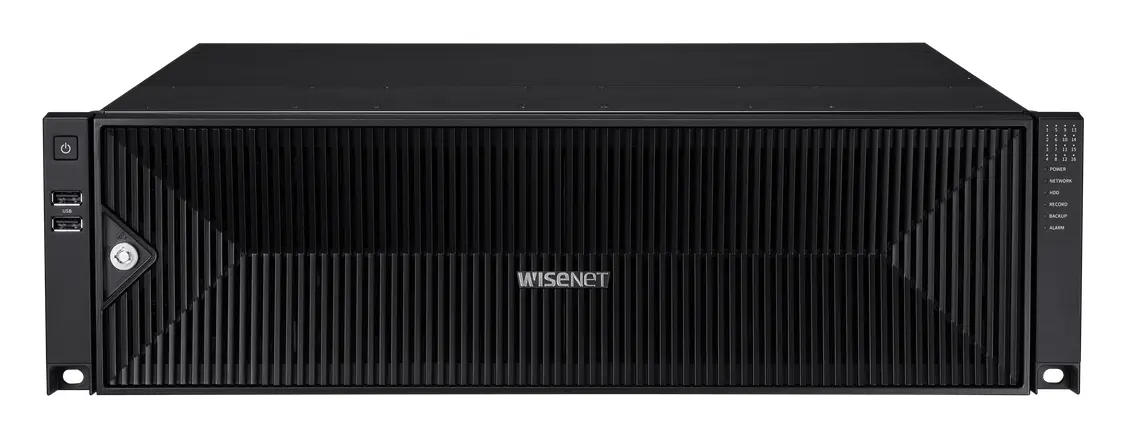

Hanwha Vision XRP-4210B4 72 Kanal Video Kayıt Sunucusu
Model
XRP-4210B4Hanwha Vision XRP-4210B4 video kayıt sunucusu: Intel Core i7-8700T, SSM Preinstalled, Up to 32MP Camera supported, Server Clustering Support - Max. 132CH, Recording Bandwidth: Max. 400Mbps.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Intel Core i7-8700T
- SSM Preinstalled
- Up to 32MP Camera supported
- Server Clustering Support - Max. 132CH
- Recording Bandwidth: Max. 400Mbps
- Playback/Search Bandwidth: Max. 150Mbps
- 16 Bay Support – Enterprise HDD
- Hot Swap Support - Volume 2ea
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Ekran 6 satır
| Network Camera - Inputs | Max. 72CH(※ If clustering, 132CH) |
|---|---|
| Network Camera - Çözünürlük | CIF ~ 32MP |
| Network Camera - Protokoller | Wisenet, ONVIF |
| Kod Çözme - Local Display | Dual if Full HD monitor Single if UHD monitor |
| Kod Çözme - Multi Screen Display | 1/4/9/16/25/36/49/64/72/81/100/121/132/Custom/Auto Mode |
| Kod Çözme - Çözünürlük | 1920fps@640x360 (128 division) ; 2160fps@720p (72 division) ; 1080fps@1080p (36 division) |
Performans 16 satır
| İşletim Sistemi | Windows 10 IoT Enterprise LTSC (SSM preinstalled) |
|---|---|
| Record - Compression | H.265, H.264, MJPEG, WiseStream(H.264, H.265) |
| Record - Recording Bandwidth | Max 400Mbps |
| Record - Çözünürlük | CIF ~ 32MP |
| Record - Mode | Normal, Schedule (Continuous / Event), Event (Pre / Post), Event Profile, ARB, Dual-Track |
| Record - Event Trigger | Video loss, Camera event(Sensor, MD, Passing, Entering, Exiting, Disappearing (Appearing), Tampering, Tracking, Face Detection, Audio Detection, ANPR, Bestshot), AI Event (Face, Appearance, Face mask, Vehicle) |
| Record - Event Action | Instant Viewer, Preset, Alarm Out, Pop-up, Sound and E-mail notification |
| Search & Play - Playback Bandwidth | Max. 150Mbps |
| Search & Play - User | Max. 1024 Users (132Ch concurrently) |
| Search & Play - Simultaneous Playback | Max 72ch(1080p/720p)(*if Clustering, 132ch) |
| Search & Play - Fisheye Dewarping | Console |
| Depolama - Supported HDD | Up to 16TB |
| Depolama - HDD Slot | SATA 16ea (3.5" 16ea Hot Swap - Volume 2ea) ; Enterprise HDD (6TB,8TB,10TB) |
| Depolama - RAID | 1/5/6/10/50 |
| Backup - File backup | AVI, SEC |
| Backup - İşlev | Manual Backup, Onetime Schedule Backup , Schedule Backup , Privacy Masking Backup |
Ağ 8 satır
| Protokol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF (Profile-S), SUNAPI(Client) |
|---|---|
| DDNS | Wisenet DDNS |
| Ses - Input/Output | 72CH(network) |
| Ses - Compression | G.711 u-law(PCM), G723, G726(ADPCM), AAC |
| Ses - Audio Communication | 2-Way |
| Max Remote Users | 1024(Tested) |
| Güvenlik | HTTPS(SSL) Login Authentication, ; Digest Login Authentication, ; IP Address Filtering, ; User access log, ; Device Certificate(Hanwha Techwin Root CA) |
| Viewer Software | SSM Client, Wisenet Mobile |
İşlevler 9 satır
| Camera Setup - Item | Automatic device IP scanning, Add profile edit, Resolution, Fisheye dewarping mode, Hallway View Setup, Brightness/Contrast, Viewing the device settings(Device webpage), Exporting/Importing devices settings,, Updating the device firmware |
|---|---|
| PTZ - Control | Via GUI, Controller(SPC-2000, SPC-7000) |
| PTZ - Ön Ayar | 300 |
| Smart phone - Support Model | iOS, Android |
| Smart phone - Protocol Support | RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI) |
| Smart phone - Control | Live(Multi-Profile Support), Playback |
| Smart phone - Max. Remote Users | Max. 1024 Users (132Ch concurrently) |
| Redundancy - Failover | Active&Active, Active-Standby |
| Redundancy - ARB | Support |

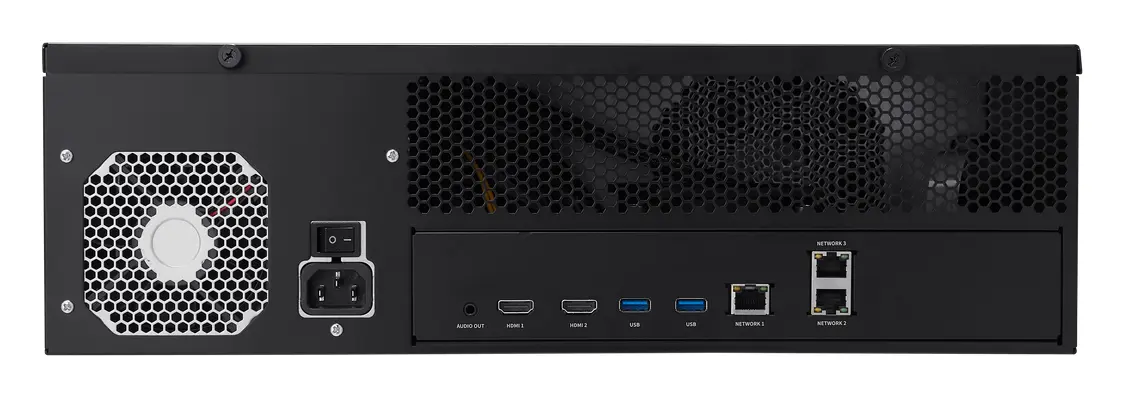

Arayüz 7 satır
| Front | LED(Status Display) ; Power, Network, HDD, Save, Backup, Alarm |
|---|---|
| HDD Key Lock | Yes |
| HDMI | 2EA |
| Ses | Audio Out 1EA(3.5mm Audio jack), Audio In(USB Mic) |
| Ethernet | Gigabit Ethernet RJ-45 (1000 Base-T) 3ea |
| USB | 4EA(USB 3.0 2ea, USB 2.0 2EA) |
| Power inlet | AC 1EA |
Sistem 2 satır
| System Control | Mouse, Keyboard |
|---|---|
| Dil | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Çevresel 5 satır
| CPU | Intel Core i7-8700T |
|---|---|
| Bellek | 16GB RAM |
| OS HDD | M.2 SSD 128Gb |
| Çalışma Sıcaklığı | +0°C to +40°C(+32℉ to +104℉) |
| Çalışma Nemi | Less or equal to 80% |
Elektriksel 2 satır
| Güç Girişi | 100 ~ 240V AC, 50 ~ 60Hz |
|---|---|
| Güç Tüketimi | 285W Single |
Mekanik 3 satır
| Renk / Malzeme | Black/Metal |
|---|---|
| Dimension(WxHxD) | 440.0x132.0x548.1mm(Including Cover: 571.1mm) |
| Ağırlık | 13.30kg (w/o HDD) |
Genel bakış
Hanwha Vision XRP-4210B4 kullanım alanları ve özellikleri.
Hanwha Vision XRP-4210B4 72 Kanal Video Kayıt Sunucusu.
72CH SSM Recording Server
• Intel Core i7-8700T
• SSM Preinstalled
• Up to 32MP Camera supported
• Server Clustering Support - Max. 132CH
• Recording Bandwidth: Max. 400Mbps
• Playback/Search Bandwidth: Max. 150Mbps
• 16 Bay Support – Enterprise HDD
• Hot Swap Support - Volume 2ea
• 2 HDMI port Support
• RAID 1 / 5 / 6 / 10 / 50 Support
• Windows 10 IoT Enterprise on LTSC M.2 SSD
• AI Event (Face, Appearance, Face mask, Vehicle) Trigger
Tüm özellikler
- Intel Core i7-8700T
- SSM Preinstalled
- Up to 32MP Camera supported
- Server Clustering Support - Max. 132CH
- Recording Bandwidth: Max. 400Mbps
- Playback/Search Bandwidth: Max. 150Mbps
- 16 Bay Support – Enterprise HDD
- Hot Swap Support - Volume 2ea
- 2 HDMI port Support
- RAID 1 / 5 / 6 / 10 / 50 Support
- Windows 10 IoT Enterprise on LTSC M.2 SSD
- AI Event (Face, Appearance, Face mask, Vehicle) Trigger
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
XRP-4210B4 hakkında kısa yanıtlar.
XRP-4210B4 fiyatı ne kadar?
XRP-4210B4 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, XRP-4210B4 için fiyat ve teslim süresini iletelim.
