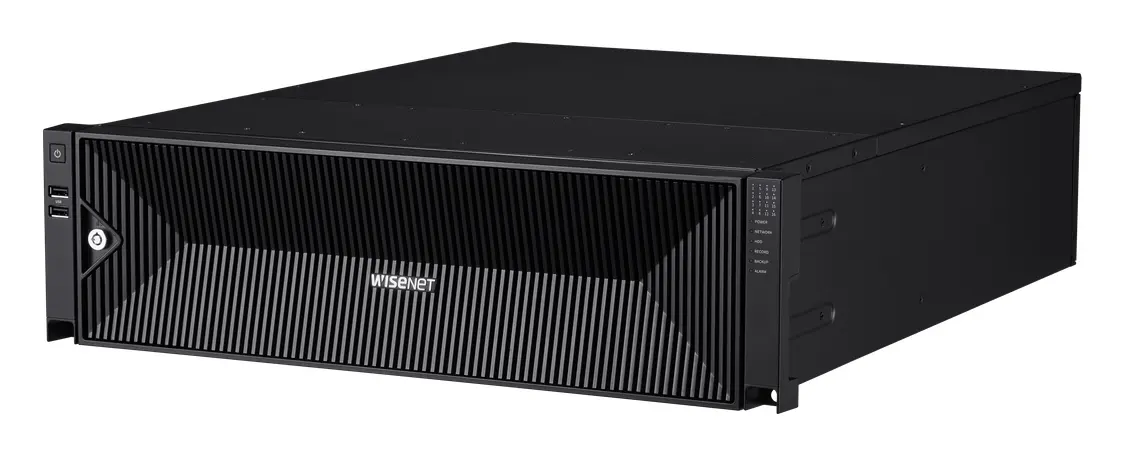

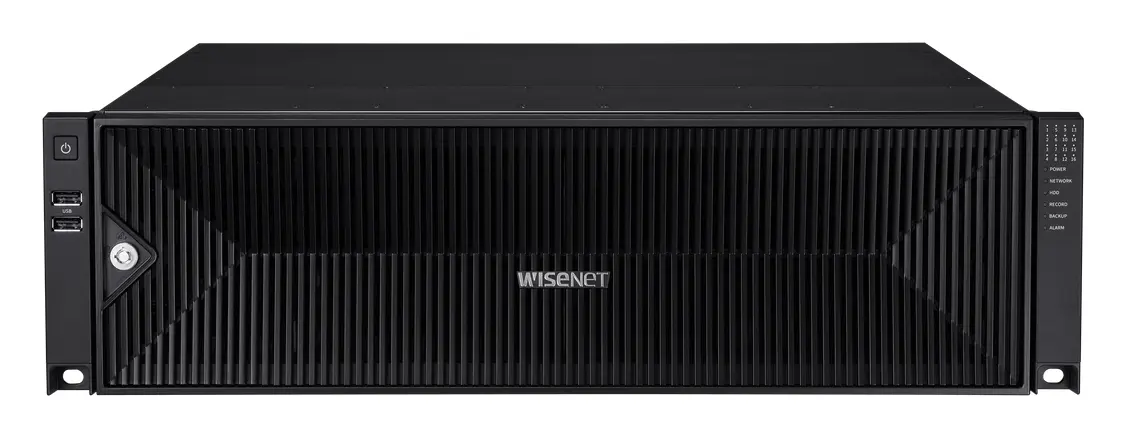

Hanwha Vision XRP-4310DB4 128 Kanal Video Kayıt Sunucusu

ModelXRP-4310DB4

Hanwha Vision XRP-4310DB4 video kayıt sunucusu: Intel Core i7-8700T, SSM Preinstalled, Up to 32MP Camera supported, Server Clustering Support - Max. 132CH, Recording Bandwidth: Max. 400Mbps.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Intel Core i7-8700T
SSM Preinstalled
Up to 32MP Camera supported
Server Clustering Support - Max. 132CH
Recording Bandwidth: Max. 400Mbps
Playback/Search Bandwidth: Max. 150Mbps
16 Bay Support – Enterprise HDD
Hot Swap Support - Volume 2ea

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Ekran 6 satır

Network Camera - Inputs	Max. 128CH(※ If clustering, 132CH)
Network Camera - Çözünürlük	CIF ~ 32MP
Network Camera - Protokoller	Wisenet, ONVIF
Kod Çözme - Local Display	Dual if Full HD monitor Single if UHD monitor
Kod Çözme - Multi Screen Display	1/4/9/16/25/36/49/64/72/81/100/121/132/Custom/Auto Mode
Kod Çözme - Çözünürlük	1920fps@640x360 (128 division) ; 2160fps@720p (72 division) ; 1080fps@1080p (36 division)

Performans 16 satır

İşletim Sistemi	Windows 10 IoT Enterprise LTSC (SSM preinstalled)
Record - Compression	H.265, H.264, MJPEG, WiseStream(H.264, H.265)
Record - Recording Bandwidth	Max 400Mbps
Record - Çözünürlük	CIF ~ 32MP
Record - Mode	Normal, Schedule (Continuous / Event), Event (Pre / Post), Event Profile, ARB, Dual-Track
Record - Event Trigger	Video loss, Camera event(Sensor, MD, Passing, Entering, Exiting, Disappearing (Appearing), Tampering, Tracking, Face Detection, Audio Detection, ANPR, Bestshot), AI Event (Face, Appearance, Face mask, Vehicle)
Record - Event Action	Instant Viewer, Preset, Alarm Out, Pop-up, Sound and E-mail notification
Search & Play - Playback Bandwidth	Max. 150Mbps
Search & Play - User	Max. 1024 Users (132Ch concurrently)
Search & Play - Simultaneous Playback	Max 128ch(*if clustering, 132ch)
Search & Play - Fisheye Dewarping	Console
Depolama - Supported HDD	Up to 16TB
Depolama - HDD Slot	SATA 16ea (3.5" 16ea Hot Swap - Volume 2ea) ; Enterprise HDD (6TB,8TB,10TB)
Depolama - RAID	1/5/6/10/50
Backup - File backup	AVI, SEC
Backup - İşlev	Manual Backup, Onetime Schedule Backup , Schedule Backup , Privacy Masking Backup

Ağ 8 satır

Protokol	IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF (Profile-S), SUNAPI(Client)
DDNS	Wisenet DDNS
Ses - Input/Output	128CH(network)
Ses - Compression	G.711 u-law(PCM), G723, G726(ADPCM), AAC
Ses - Audio Communication	2-Way
Max Remote Users	1024(Tested)
Güvenlik	HTTPS(SSL) Login Authentication, ; Digest Login Authentication, ; IP Address Filtering, ; User access log, ; Device Certificate(Hanwha Techwin Root CA)
Viewer Software	SSM Client, Wisenet Mobile

İşlevler 9 satır

Camera Setup - Item	Automatic device IP scanning, Add profile edit, Resolution, Fisheye dewarping mode, Hallway View Setup, Brightness/Contrast, Viewing the device settings(Device webpage), Exporting/Importing devices settings,, Updating the device firmware
PTZ - Control	Via GUI, Controller(SPC-2000, SPC-7000)
PTZ - Ön Ayar	300
Smart phone - Support Model	iOS, Android
Smart phone - Protocol Support	RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI)
Smart phone - Control	Live(Multi-Profile Support), Playback
Smart phone - Max. Remote Users	Max. 1024 Users (132Ch concurrently)
Redundancy - Failover	Active&Active, Active-Standby
Redundancy - ARB	Support

Arayüz 7 satır

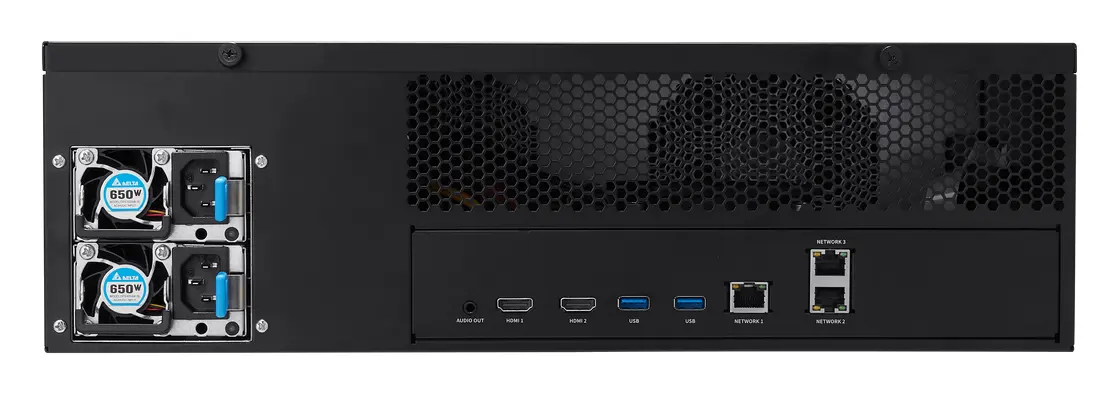

Front	LED(Status Indicator) ; Power, Network, HDD, Record, Backup, Alarm
HDD Key Lock	Yes
HDMI	2EA
Ses	Audio Out 1EA(3.5mm Audio jack), Audio In(USB Mic)
Ethernet	Gigabit Ethernet RJ-45 (1000 Base-T) 3ea
USB	4EA(USB 3.0 2ea, USB 2.0 2EA)
Power inlet	AC 2EA

Sistem 2 satır

System Control	Mouse, Keyboard
Dil	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Çevresel 5 satır

CPU	Intel Core i7-8700T
Bellek	16GB RAM
OS HDD	M.2 SSD 128Gb
Çalışma Sıcaklığı	+0°C to +40°C(+32℉ to +104℉)
Çalışma Nemi	Less or equal to 80%

Elektriksel 2 satır

Güç Girişi	100 ~ 240V AC, 50 ~ 60Hz
Güç Tüketimi	285W Dual

Mekanik 3 satır

Renk / Malzeme	Black/Metal
Dimension(WxHxD)	440.0x132.0x548.1mm(Including Cover: 571.1mm)
Ağırlık	14.05kg (w/o HDD)

Genel bakış

Hanwha Vision XRP-4310DB4 kullanım alanları ve özellikleri.

Hanwha Vision XRP-4310DB4 128 Kanal Video Kayıt Sunucusu.

128CH SSM Recording Server

Intel Core i7-8700T
SSM Preinstalled
Up to 32MP Camera supported
Server Clustering Support - Max. 132CH
Recording Bandwidth: Max. 400Mbps
Playback/Search Bandwidth: Max. 150Mbps
16 Bay Support – Enterprise HDD
Hot Swap Support - Volume 2ea
2 HDMI port Support
RAID 1 / 5 / 6 / 10 / 50 Support
Redundant Power Support
Windows 10 IoT Enterprise LTSC on M.2 SSD
AI Event (Face, Appearance, Face mask, Vehicle) Trigger

Tüm özellikler

Intel Core i7-8700T
SSM Preinstalled
Up to 32MP Camera supported
Server Clustering Support - Max. 132CH
Recording Bandwidth: Max. 400Mbps
Playback/Search Bandwidth: Max. 150Mbps
16 Bay Support – Enterprise HDD
Hot Swap Support - Volume 2ea
2 HDMI port Support
RAID 1 / 5 / 6 / 10 / 50 Support
Redundant Power Support
Windows 10 IoT Enterprise LTSC on M.2 SSD
AI Event (Face, Appearance, Face mask, Vehicle) Trigger

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Veri Sayfası) (EN)PDF · XRP-4310DB4 Kullanım Kılavuzu (EN)PDF · XRP-4310DB4 Hızlı Kurulum Kılavuzu (EN)PDF · XRP-4310DB4

Sık sorulanlar

XRP-4310DB4 hakkında kısa yanıtlar.

XRP-4310DB4 fiyatı ne kadar?

XRP-4310DB4 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
