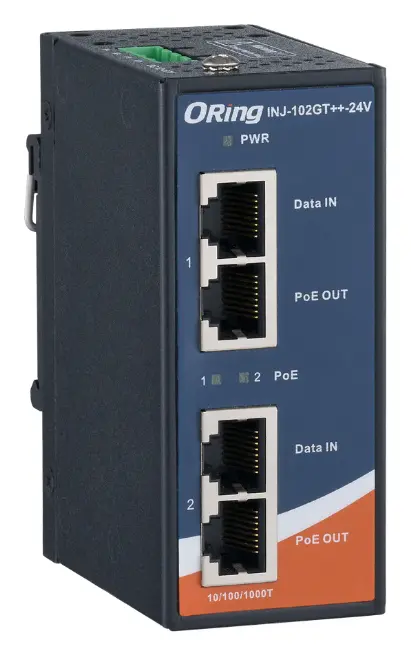

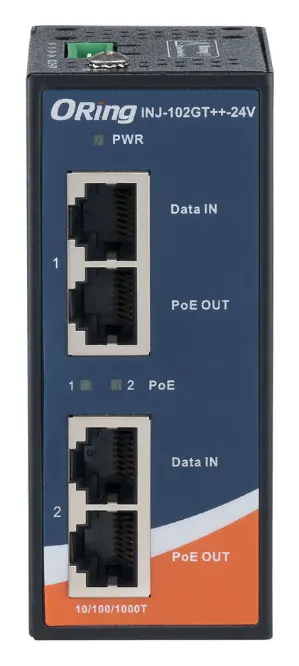

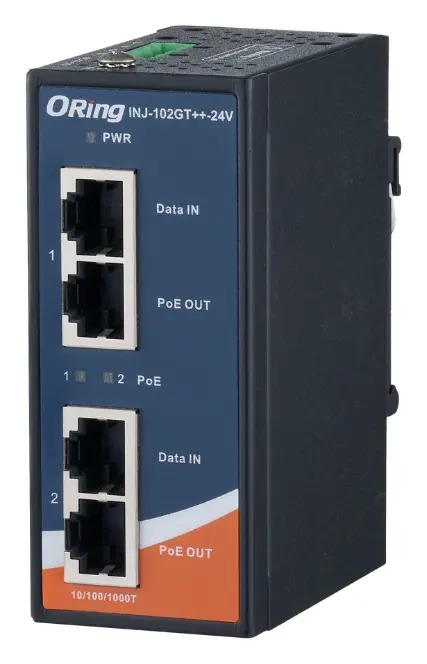

ORing INJ-102GT++-24V 2 Port Gigabit Yüksek Güçlü PoE++ Enjektör, IEEE 802.3af/at, 24VDC Endüstriyel PoE Enjektör

ORing INJ-102GT++-24V – 2-port Gigabit High Power PoE++ Injector, IEEE 802.3af/at, 24VDC. Bu ürün ORing Industrial Networking'in Endüstriyel PoE Enjektör ailesinde yer alır.

Temel Özellikler (Features)

• PoE+ Injector for 1x10/100/1000 Base-T(X)
• Fully compliant with IEEE 802.3at/802.3af
• Auto protection for over voltage power input and over current output
• Supports totally power output up to 90/180Watts for all ports usage
• High reliability and rigid IP-30 housing
• DIN-Rail and wallmount design

Genel Bakış (Description)

The INJ-102GT++ PoE Injector series is not only an IEEE802.3at compliant device but also an advanced high power PoE injector. It is intelligent detection that provided 2-ports 10/100/1000Base-T (X) PoE outputs. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Therefore, only an IEEE 802.3at/802.3af compliant device can be powered with the INJ-102GT++ PoE Injector. Typically in gigabit networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. The INJ-102GT++ PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3at/802.3af PoE standards. Note:The equipment being powered must be fully IEEE 802.3at/802.3af compliant in order for the power supply to be able to sense the PoE devices signature and apply power. Power is supplied on Ethernet pins 1/2 (V+)
