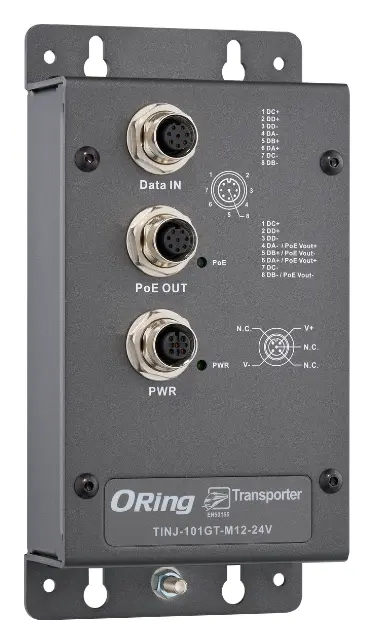

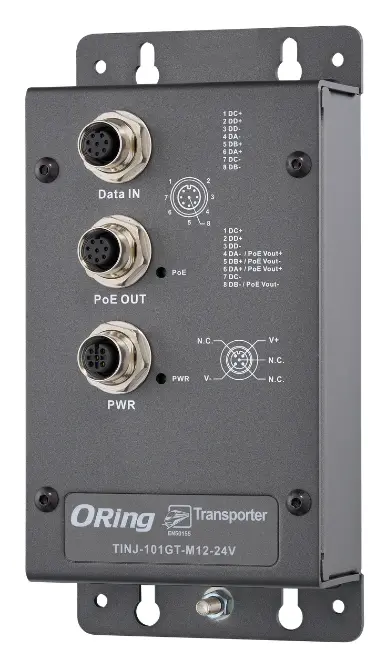

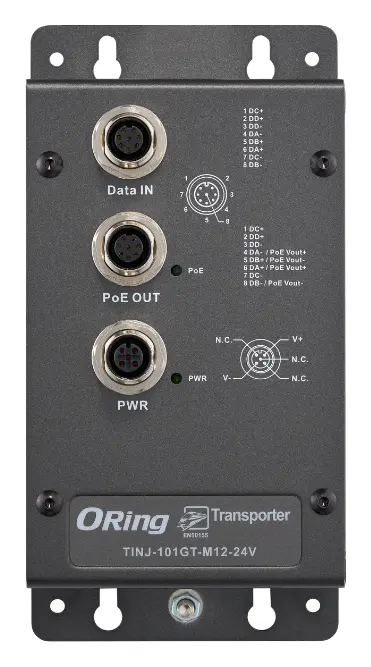

ORing TINJ-101GT-M12-24V EN50155 1 Port Gigabit PoE Enjektör, M12 konnektör, IEEE 802.3af/at, 24VDC Endüstriyel PoE Enjektör

ORing TINJ-101GT-M12-24V – EN50155 1-port Gigabit PoE Injector, M12 connector, IEEE 802.3af/at, 24VDC. Bu ürün ORing Industrial Networking'in Endüstriyel PoE Enjektör ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Yedekli Güç Girişi: Railway 24VDC (12 ~ 57VDC) on 5-pin M12 female A-coding
• Kasa: IP-40, Iron
• Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
• Garanti: 5 years
• MTBF: 2502228 hrs.

Temel Özellikler (Features)

• Supports 1x10/100/1000 Base-T(X) for power and data Output
• Fully compliant with IEEE802.3at/802.3af
• Auto protection for over voltage power input and over current output
• Up to 30Watts power output
• Power input range from 12VDC to 57VDC
• Ultra-rugged enclosure M12 connector for toughest industrial usages
• Wall mounting enabled

Genel Bakış (Description)

ORing TINJ-101GT-M12-24V is an IEEE 802.3at compliant PoE injector from ORing's Transporter™ series, fully compliant with the EN50155 standard for railway and transportation applications including rolling stock and in-vehicle networks. It provides one 10/100/1000Base-T(X) PoE output port and uses M12 industrial-grade connectors to withstand vibration and shock in harsh environments. The device features intelligent detection that activates power only upon detecting a valid PoE signature from a connected downstream device, protecting non-PoE equipment from damage and ensuring compatibility exclusively with IEEE 802.3at/802.3af compliant powered devices. With a 50V insertion design, the injector compensates for voltage drops over cable length, supporting standard CAT5 runs up to 100 meters without performance degradation.
