Rosslare

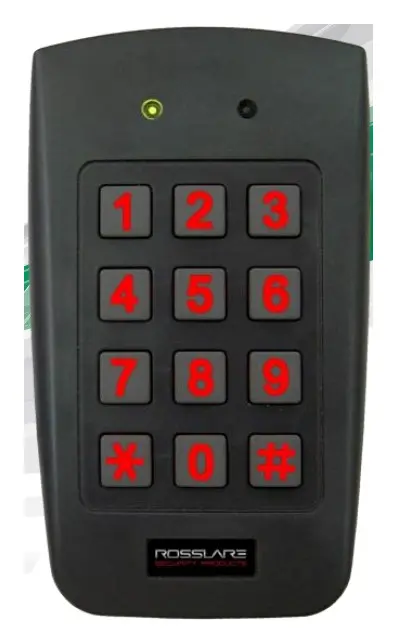

Rosslare AC-F43 Outdoor Backlit PIN Standalone Controller Bağımsız Geçiş Kontrol Ünitesi
Aksesuar

Rosslare AC-F43 Outdoor Backlit PIN Standalone Controller Bağımsız Geçiş Kontrol Ünitesi

ModelAC-F43

Rosslare AC-F43 bağımsız geçiş kontrol ünitesi: Up to 500 users can be coded using Smart enroll and delete technology, A mounting template and installation kit are provided, Three user levels:, Normal – Requires single PIN code, Secure – Requires dual PIN codes.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Up to 500 users can be coded using Smart enroll and delete technology
  • A mounting template and installation kit are provided
  • Three user levels:
  • Normal – Requires single PIN code
  • Secure – Requires dual PIN codes
  • Master User controller, the AC-F43, is a cost- systems where PIN credentials are programmed with up to 500 users on a
  • Three access levels:
  • Normal

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 5 satır
Çalışma Gerilimi Aralığı12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer
Giriş AkımıStandby: 75 mA at 12 VDC Maximum: 125 mA at 12 VDC
Relay OutputsLock Strike: 2 A Form C, N.O. and N.C. Auxiliary: 2 A Form C, N.O. and N.C.
TamperOptical back tamper sensor
GirişlerREX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
Çalışma Özellikleri 6 satır
Kapasite500 users, single/dual code each
Tuş Takımı3x4 keys for local programming and 4- to 8-digit PIN code entry
Kullanıcı SeviyeleriNormal, Secure, Master
Güvenlik ModlarıNormal, Bypass, Secure
Sesli / Görsel GöstergeInterface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder
TasarımEpoxy potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.
Çevresel Özellikler 3 satır
Kullanım OrtamıWater resistant, suitable for outdoor use (IP65)
Çalışma Sıcaklığı-30 C to 65 C (-22 F to 150 F)
Çalışma Nemi0 to 95% (non-condensing)
Fiziksel Özellikler 2 satır
Dimensions (L x W x H)121 x 71 x 30 mm (4.7 x 2.8 x 1.2 in.)
Ağırlık244 g (0.5 lb)
Genel 2 satır
Sistem BileşenleriThe AC-F43 is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.
Garanti5-Year Limited Product Warranty

Genel bakış

Rosslare AC-F43 kullanım alanları ve özellikleri.

Rosslare’s newest standalone backlit PIN controller, the AC-F43, is a cost- effective solution for indoor and outdoor systems where PIN credentials are required. This durable model can be easily programmed with up to 500 users on a single door.

For greater peace of mind, this sturdy access control unit provides three levels of security that can be assigned to as many as 500 users.

The AC-F43 offers automatic mode recognition and a user-friendly setup menu, simplifying configuration and use. Extra features such as various door alarms, LED control input, and tamper detection provide extra security and flexibility.

Come rain or shine, this controller can handle the challenge, with its rugged UV-resistant housing and water-resistant enclosure for maximum durability.

The backlit keypad is clearly visible day or night, making these units ideal for residential, commercial and industrial applications.

Main Features

  • Up to 500 users can be coded using Smart enroll and delete technology
  • A mounting template and installation kit are provided
  • Three user levels:
  • Normal – Requires single PIN code
  • Secure – Requires dual PIN codes
  • Master User controller, the AC-F43, is a cost- systems where PIN credentials are programmed with up to 500 users on a
  • Three access levels:
  • Normal
  • Bypass
  • Secure
  • Suitable for Gang Box installations
  • Programmable PIN code length between 4 digits and 8 digits
  • Powered either by transformer (AC) or regulated power supply (DC)
  • Water-resistant and UV-resistant, meets IP65
  • Internal buzzer
  • Two inputs: REX and Auxiliary
  • Two Form C, 2 Amp outputs: Lock Strike and Auxiliary
  • Two tri-colored status/programming LEDs
  • Ten programmable auxiliary behavior modes including Door Ajar, Forced Door, Alarm Shunt, and Door Monitor
  • Programmable chime and siren when using BL-D40 and '' bell button

Tüm özellikler

  • Up to 500 users can be coded using Smart enroll and delete technology
  • A mounting template and installation kit are provided
  • Three user levels:
  • Normal – Requires single PIN code
  • Secure – Requires dual PIN codes
  • Master User controller, the AC-F43, is a cost- systems where PIN credentials are programmed with up to 500 users on a
  • Three access levels:
  • Normal
  • Bypass
  • Secure
  • Suitable for Gang Box installations
  • Programmable PIN code length between 4 digits and 8 digits
  • Powered either by transformer (AC) or regulated power supply (DC)
  • Water-resistant and UV-resistant, meets IP65
  • Internal buzzer

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AC-F43

Sık sorulanlar

AC-F43 hakkında kısa yanıtlar.

AC-F43 fiyatı ne kadar?
AC-F43 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
