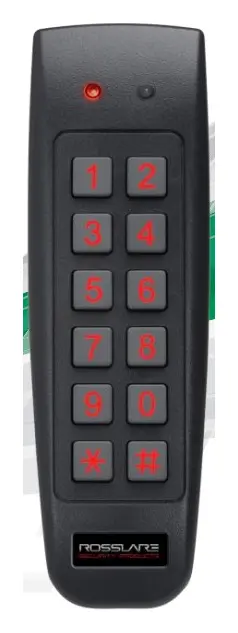

Rosslare AC-G44 Outdoor Mullion Backlit PIN & Proximity Standalone Controller Bağımsız Geçiş Kontrol Ünitesi
Aksesuar

Rosslare AC-G44 Outdoor Mullion Backlit PIN & Proximity Standalone Controller Bağımsız Geçiş Kontrol Ünitesi

ModelAC-G44

Rosslare AC-G44 bağımsız geçiş kontrol ünitesi: Up to 500 users can be coded using Smart enroll and delete technology, Mounting template and installation kit are provided, Three user levels:, Normal – Requires single PIN code or PROX card, Secure – Requires both PIN and PROX card.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Up to 500 users can be coded using Smart enroll and delete technology
  • Mounting template and installation kit are provided
  • Three user levels:
  • Normal – Requires single PIN code or PROX card
  • Secure – Requires both PIN and PROX card
  • Master User CONTROLLER, THE AC-G44, IS A COST - EFFECTIVE
  • Water-resistant and UV-resistant, meets IP65
  • Internal buzzer

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 6 satır
Çalışma Gerilimi Aralığı12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer
Giriş AkımıStandby: 95 mA at 12 VDC Maximum: 160 mA at 12 VDC
Relay OutputsLock Strike: 2 A Form C, N.O. and N.C. Auxiliary: 2 A Form C, N.O. and N.C.
TamperOptical back tamper sensor
GirişlerREX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
Proximity Kart OkuyucuMaximum read range*: 80 mm (3.15 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-bit EM cards * Measured using Rosslare Prox Card AT-R14 or equivalent. Range also depends on electrical environment and proximity to metal.
Çalışma Özellikleri 6 satır
Kapasite500 users, dual code/card or code + card each
Tuş Takımı2x6 keys for local programming and 4- to 8-digit PIN code entry
Kullanıcı SeviyeleriNormal, Secure, Master
Güvenlik ModlarıNormal, Bypass, Secure
Sesli / Görsel GöstergeInterface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder
TasarımEpoxy potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.
Çevresel Özellikler 4 satır
Kullanım OrtamıWater resistant, suitable for outdoor use (IP65)
Çalışma Sıcaklığı-30 C to 65 C (-22 F to 150 F)
Çalışma Nemi0 to 95% (non-condensing)
RFI Protection> 20 V/m up to 1000 MHz
Fiziksel Özellikler 2 satır
Dimensions (L x W x H)135.4 x 44.2 x 28.5 mm (5.33 x 1.74 x 1.12 in.)
Ağırlık178 g (0.39 lbs)
Genel 2 satır
Sistem BileşenleriThe AC-G44 is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.
Garanti5-year Limited Product Warranty

Genel bakış

Rosslare AC-G44 kullanım alanları ve özellikleri.

For greater peace of mind, this sturdy access control unit provides three levels of security that can be assigned to as many as 500 users.

The AC-G44 offers automatic mode recognition and a user-friendly setup menu, simplifying configuration and use. Extra features such as various door alarms, LED control input, and tamper detection provide extra security and flexibility.

Come rain or shine, this reader can handle the challenge, with its rugged UV-resistant housing and water-resistant enclosure for maximum durability.

The backlit keypad is clearly visible day or night, making these units ideal for residential, commercial and industrial applications.

Main Features

  • Up to 500 users can be coded using Smart enroll and delete technology
  • Mounting template and installation kit are provided
  • Three user levels:
  • Normal – Requires single PIN code or PROX card
  • Secure – Requires both PIN and PROX card
  • Master User CONTROLLER, THE AC-G44, IS A COST - EFFECTIVE
  • Water-resistant and UV-resistant, meets IP65
  • Internal buzzer
  • Two inputs: REX and Auxiliary
  • Two Form C, 2 Amp outputs: Lock Strike and Auxiliary
  • Two tri-colored status/programming LEDs
  • 10 auxiliary modes including: Door Ajar, Forced Door, Alarm Shunt, and Door Monitor
  • Programmable chime and siren when using BL-D40 and '' bell button
  • Built-in optical back tamper detection

Tüm özellikler

  • Up to 500 users can be coded using Smart enroll and delete technology
  • Mounting template and installation kit are provided
  • Three user levels:
  • Normal – Requires single PIN code or PROX card
  • Secure – Requires both PIN and PROX card
  • Master User CONTROLLER, THE AC-G44, IS A COST - EFFECTIVE
  • Water-resistant and UV-resistant, meets IP65
  • Internal buzzer
  • Two inputs: REX and Auxiliary
  • Two Form C, 2 Amp outputs: Lock Strike and Auxiliary
  • Two tri-colored status/programming LEDs
  • 10 auxiliary modes including: Door Ajar, Forced Door, Alarm Shunt, and Door Monitor
  • Programmable chime and siren when using BL-D40 and '' bell button
  • Built-in optical back tamper detection

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AC-G44

Sık sorulanlar

AC-G44 hakkında kısa yanıtlar.

AC-G44 fiyatı ne kadar?
AC-G44 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
