Rosslare

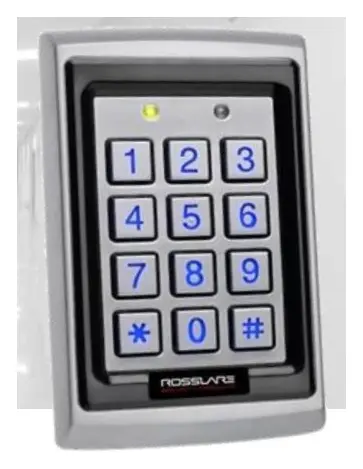

Rosslare AC-Q42 Standalone Controller Bağımsız Geçiş Kontrol Ünitesi
Aksesuar

Rosslare AC-Q42 Standalone Controller Bağımsız Geçiş Kontrol Ünitesi

ModelAC-Q42

Rosslare AC-Q42 bağımsız geçiş kontrol ünitesi: Optical tamper detection, An automatic internal heater prevents key freeze at -20 °C (4 °F)., 10 programmable modes for auxiliary input and output (2 Amp Form C Relay), 2 Amp Form C Lock Strike Relays, for fail-safe and fail-secure, with input for REX, Support.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Optical tamper detection
  • An automatic internal heater prevents key freeze at -20 °C (4 °F).
  • 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
  • 2 Amp Form C Lock Strike Relays, for fail-safe and fail-secure, with input for REX
  • Supports: Door Ajar, Forced, Shunt, Monitor, and Secure modes
  • Doorbell key feature operation (from the '*' key), with Rosslare's BL-D40 accessory

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 22 satır
ElectricityAC-Q42HB AC-Q42SB
Çalışma Gerilimi Aralığı12 to 24 VDC, from a regulated power supply
Input Current: Heater Off Standby85 mA, Maximum: 145 mA, at 12 VDC
Input Current: Heater On Standby565 mA, Maximum: 625 mA, at 12 VDC
Relay OutputsLock Strike: 2 A, N.O. and N.C. Auxiliary: 2 A, N.O. and N.C.
TamperOptical back tamper sensor, O.C. active low 32 mA max sink current
GirişlerREX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes
Proximity Kart OkuyucuMaximum read range 65 mm (2.5 in.) Modulation: ASK at 125 kHz
OperationsCompatible cards: All 26-bit EM cards AC-Q42HB AC-Q42SB
Kapasite500 users, single/dual code each
Tuş Takımı3x4 keys for local programming and 4-to-8-digit PIN code entry
Kullanıcı SeviyeleriNormal, Secure, Master
Güvenlik ModlarıNormal, Bypass, Secure
Sesli / Görsel GöstergeInterface for BL-D40 (bell, chime, and siren annunciator) Two tri-color LED indicators, built-in sounder
TasarımSuitable for extremely harsh environments. Rugged metal enclosure, Epoxy potted, fully sealed in a highly strong construction, rugged metal slim enclosure, highly blue backlit metallic keys. strong construction, blue backlit metallic keys.
EnvironmentAC-Q42HB AC-Q42SB
Kullanım OrtamıIP54 IP65
Çalışma SıcaklığıBuilt-in heater to prevent key freezing: -20 °C to 60 °C (-4 °F to 140 °F)
Çalışma Nemi0 to 95 % (non-condensing)
HardwareAC-Q42HB AC-Q42SB
Boyutlar (Y x G x D)120 x 76 x 27 mm 120 x 76 x 22 mm (4.72 x 3 x 1.06 in.) (4.72 x 3 x 0.85 in)
Ağırlık440 g (1 lb) 521 g (1.18 lb)
Genel 1 satır
Garanti2 yıl sınırlı garanti

Genel bakış

Rosslare AC-Q42 kullanım alanları ve özellikleri.

The AC-Q42 series represents advanced anti-vandal standalone access control technology with dual credential capabilities. These controllers support up to 500 users and feature illuminated blue metal keys for PIN code entry combined with a built-in proximity reader for RFID user credentials. Both models in the series offer all-weather operation, flexible programming capabilities including a unique code search function for simplified user management, and non-volatile memory that protects the storage of the user database, modes, and parameters.

The series combines large backlit metal keys with built-in heaters, providing enhanced accessibility in low-light conditions and cold temperatures. The controllers feature attractive profiles with no sharp edges. Available in two versions to suit different installation requirements, the AC-Q42 series delivers robust performance with advanced programming options where reliability and durability are essential.

The AC-Q42HB features a rugged metal construction ideal for high-traffic environments. This model includes removable terminal blocks for quick installation.

The AC-Q42SB features a slim, rugged metal construction suitable for high-traffic environments. The fully sealed design is epoxy-filled for enhanced durability in outdoor conditions.

Main Features

  • Optical tamper detection
  • An automatic internal heater prevents key freeze at -20 °C (4 °F).
  • 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
  • 2 Amp Form C Lock Strike Relays, for fail-safe and fail-secure, with input for REX
  • Supports: Door Ajar, Forced, Shunt, Monitor, and Secure modes
  • Doorbell key feature operation (from the '*' key), with Rosslare's BL-D40 accessory

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AC-Q42

Sık sorulanlar

AC-Q42 hakkında kısa yanıtlar.

AC-Q42 fiyatı ne kadar?
AC-Q42 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
