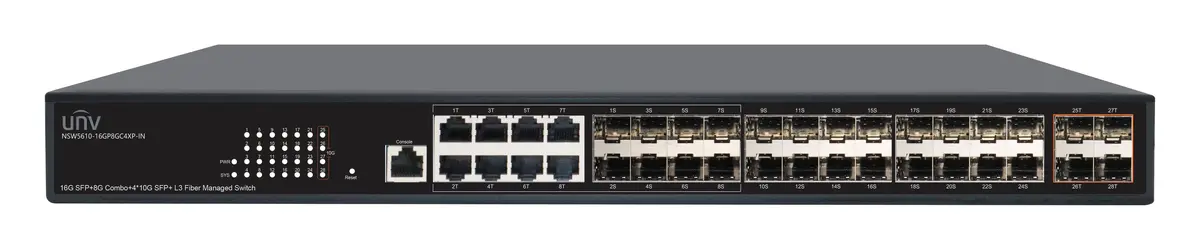

Uniview NSW5610-16GP8GC4XP-IN Omurga (Core) Switch

ModelNSW5610-16GP8GC4XP-IN

Uniview NSW5610-16GP8GC4XP-IN gigabit bir yönetilebilir switch'tir.

Port hızı: Gigabit
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control
Panel indicators monitor working status and assist in fault analysis
Support for dynamic routing protocols
Highly reliable design, supporting traditional STP/MSTP/RSTP 2-layer link protection technology
Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup
Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH
Support WEB management, simple and efficient, convenient for installation and debugging of engineering and maintenance personnel

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	NSW5610-16GP8GC4XP-IN
Ürün Tanımı (Üretici)	Ethernet Switch Host

Donanım Özellikleri 12 satır

Port Tipi	161000Mbps SFP Ports; 81000Mbps Combo Ports; 4* 10Gbps SFP+ Slots; 1*Console Port
İletim Performansı	95.23Mpps
Anahtarlama Kapasitesi	128Gbps
Paket Tamponu	16M bits
Jumbo Frame	12K
Maks. Güç	90W
Güç Kaynağı	100~240V AC, 50/60Hz
Boyutlar (G×D×Y)	44026044mm
Çalışma Sıcaklığı	0°C to 40°C
Depolama Sıcaklığı	-40°C to 70°C
Çalışma Nemi	10% to 90% (noncondensing)
Depolama Nemi	5% to 90% (noncondensing)

Yazılım Özellikleri 12 satır

MAC Adres Tablosu	16K, Auto-learning, Auto-aging
Ethernet	Support MRPP,ULPP, ULSM, port mirror.; Support Link Aggregation, LLDP, port config
VLAN	VLAN(802.1Q 4K); Access/Trunk/Hybrid; Private VLAN; VLAN Filter; MAC-based VLAN; Protocol-based VLAN; IP Subnet-based VLAN; Voice VLAN; GVRP/GMRP; QinQ/Selective-QinQ/Flexible QinQ; VLAN Translation/N:1 VLAN Translation; Guest VLAN
ARP	Static ARP; ARP Scanning Prevention; ARP Spoofing Prevention; ARP Guard; Gratuitous ARP; Dynamic ARP Inspection; ARP Quantity Control
IP Route	Static Route(IPV4/IPV6); Route Aggregation, RIP v1/v2/RIPng,; OSPF v2/v3,; BGP4/BGP6,; IPv4/IPv6 VRRP,; IPv4/IPv6 PIM,; Stacking VSF
Maintenance	Console/Telnet/SSH; Http/Https, SSL/TLS; FTP/TFTP; Syslog; SNMP(v1/v2c/v3) , SNMP Trap; RMON; SNTP/NTP; CPU protect; Software/Hardware watchdog; Firmware Upgrade/Backup; Ping/Traceroute
Güvenlik	802.1x: Port Based Authentication,; Support EAPoR,; MAC based Authentication,; Guest VLAN.; MAB: Based on Port Authentication,; Based on MAC Authentication.; MAC Address Count limit:; Based on Port,; Based on VLAN.; IP Address Count Limit: Based on Port,; Based on VLAN.; Access Management: Based on source mac and IP address.; Deny DoS Attack: TCP Flag,; TCP Flagment,; IP Segment,; ICMP.; TACACS+: Standard Support.; Radius: Standard Support, Client, Support MD5.; SSL: Openssl 1.1.0.
QoS	Support SP, WRR, WDRR queue scheduling.; Support Trust COS/DSCP,; Trust Port.; Support Based on VLAN,; Based on COS/DSCP,; Aggregate Policy-Map,; Ingress Policy-Map.; Policing: CAR Stream Shaping(leak algorithm),; Ingress Policing.; Rewrite: COS/802.1p Priority,; IP Precedence,; IPv4 DSCP/IPv6 DSCP,; drop-precedence,; internal-priority,; Ingress/Egress Rewrite.; Queuing: DSCP to DSCP mapping,; DSCP to DP mapping,; DSCP to Queue mapping,; COS to DP mapping,; COS to Queue mapping.
ACL	IP-ACL: SIP/DIP,; IP Protocol,; IP Priority(DSCP,TOS, Precedence),; TCP,UDP src,dst Port.; MAC-ACL: SRC/DST MAC,; VLAN,; COS,; Tag/Untag.; IP-MAC ACL: MAC-ACL and IP-ACL.; User-defined ACL: Base on user defined profile.; ACL Features: Based on time period ACL,; ACL on VLAN,; Based on ACL Stream.
Reliability	Support Loopback Detection,; ERPS,; STP/RSTP/MSTP,; MSTP Support 64 instance,; BPDU Guard/Root, Guard/BPDU Tunnel
DHCP	DHCP Client/BOOTP,; DHCP Relay,; DHCP Snooping,; DHCP Option 82/43/60/61/67,; DHCP Server,; DHCPv6 Server
Multicast	Multicast VALN,; IGMP SNOOPING, V1/V2/V3,; Fast Leave,; IGMP Proxy

Genel bakış

Uniview NSW5610-16GP8GC4XP-IN kullanım alanları ve özellikleri.

Uniview NSW5610-16GP8GC4XP-IN, omurga (core) switch modelidir. Öne çıkanlar: portlar 16*1000Mbps SFP Ports; 8*1000Mbps Combo Ports; 4* 10Gbps SFP+ Slots; 1*Console Port.

Üretici tanımı: Ethernet Switch Host

Öne Çıkan Özellikler

IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control
Panel indicators monitor working status and assist in fault analysis
Support for dynamic routing protocols
Highly reliable design, supporting traditional STP/MSTP/RSTP 2-layer link protection technology
Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup
Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH
Support WEB management, simple and efficient, convenient for installation and debugging of engineering and maintenance personnel

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NSW5610-16GP8GC4XP-IN Managed Ethernet Switch.pdfPDF · NSW5610-16GP8GC4XP-IN

Sık sorulanlar

NSW5610-16GP8GC4XP-IN hakkında kısa yanıtlar.

NSW5610-16GP8GC4XP-IN fiyatı ne kadar?

NSW5610-16GP8GC4XP-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
