Uniview

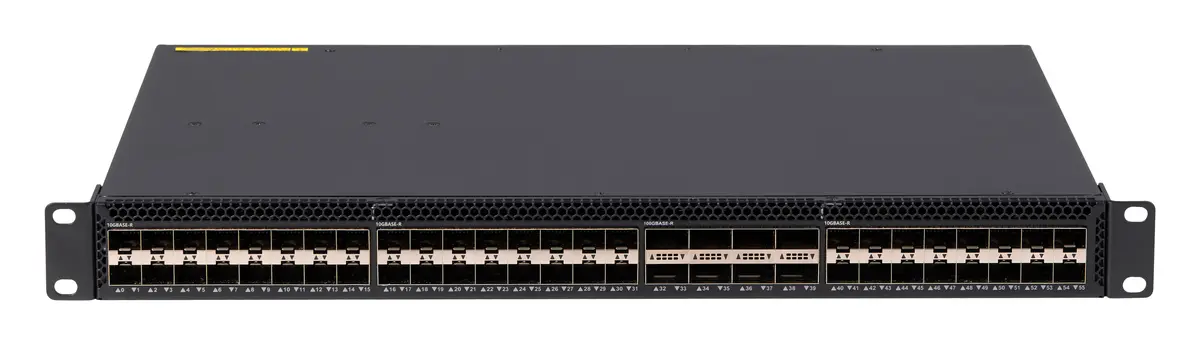

Uniview NSW6630-48XP8CQ-IN 48 Port Gigabit L3 Omurga (Core) Switch

ModelNSW6630-48XP8CQ-IN

Uniview NSW6630-48XP8CQ-IN, 48 portlu gigabit bir yönetilebilir switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High-capacity high-density 10G interface. It is the industry’s first-class 1U cassette switch, with up to 80x10G interfaces capability, meeting the challenge of high density and high bandwidth access in next-generation c
Virtual Switching Matrix (VSM). NSW6630 Series adopts Virtual Switching Matrix (VSM) technology, which performs virtualization of multiple physical devices into a single logical device for unified configuration and manag
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, NSW6630 Series provides CLI command lines and a Web management interface.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	NSW6630-48XP8CQ-IN
Ürün Tanımı (Üretici)	48 Port Full 10 Gigabit Optical Layer 3 Switch

Donanım Özellikleri 14 satır

Port Tipi	481G/10G BASE-R SFP+ ports ;; 8100GE QSFP28 ;; 1RJ45 management port ;; 1RJ45 Console port;; 1*USB
Paket Tamponu	72M bits
Anahtarlama Kapasitesi	2.56Tbps
İletim Performansı	1012Mpps
Jumbo Frame	9K
Güç Kaynağı	AC: 100-240V, 50/60Hz ;; Dual Power Supply with Hot Swap Function
Soğutma Fanı	4
Boyutlar (G×D×Y)	444mm×375mm×44mm
Çalışma Sıcaklığı	0°C to 45°C (32°F to 113°F)
Çalışma Nemi	10% to 90% (noncondensing)
Ağırlık	7.65
Maks. Güç	288W
Depolama Sıcaklığı	-40°C to 70°C (-40°F to 158°F)
Depolama Nemi	5% to 90% (noncondensing)

Yazılım Özellikleri 13 satır

MAC Adres Tablosu	Static :4K; ALL :72K
Ethernet	Support Port trunk, basic port functions, LACP, etc.
DHCP	Support DHCP Client, DHCP Server, DHCP Relay, DHCP Snooping
VLAN	Support Mac-VLAN; Support Subnet-VLAN; Support Protocol VLAN; Support VLAN Mapping; QinQ /Flexible QinQ
Reliability	Support STP, RSTP, MSTP, FRRP, ERPS Ethernet ring protection protocol (G.8032); Support STP Root Guard, BPDU Guard; Supports FLRP Fast Link Recovery Protocol
ARP	Support static table entry, gratuitous ARP; Supports standard proxy ARP and local proxy ARP; Support Dynamic ARP Inspection; Support ARP anti-attack; Support ARP source suppression, ARP source address check, ARP one-key binding, authorized ARP; Static Port Access Control
IP Route	IPv4: Static routing, RIP v1/2, OSPF, BGP, ISIS, policy-go-together, etc.
Multicast	Support IGMP Snooping v2/v3, IGMP Snooping Fast-leave, IGMP Snooping Group-policy; Support PIM-SM, PIM-SSM, PIM-DM
Maintenance	Support RMON; Support debug information output; Supports virtual cable detection; Support real-time temperature detection and alarm; Support NTP, uninterrupted service upgrade; Support power supply, fan, temperature alarm; Support Ping, Tracert, Track; Support NetStream traffic statistics function; Support Ethernet OAM (802.1ag and 802.3ah); Support SNMP, CLI, Web management; Support local and remote output of system logs, operation logs, debugging information
Güvenlik	Support local and centralized authentication based on MAC address; Support local and centralized authentication based on 802.1x; Support local and centralized authentication based on Portal; Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection; Support port isolation, Static Port Access Control; Support broadcast storm suppression; Support SSH2.0
QoS	Support traffic classification based on 802.1p/DSCP/TOS; Support speed limit on ports and streams; Support SP, WRR, SP + WRR queue scheduling
Virtualization	Support VSM virtualization
Data Center	Layer-2 VxLAN; Layer-3 VxLAN; Support 802.1Qbg, TRILL, EVPN; Supports OpenFlow 1.3 etc.

Genel bakış

Uniview NSW6630-48XP8CQ-IN kullanım alanları ve özellikleri.

Uniview NSW6630-48XP8CQ-IN, 48 Port Gigabit L3 omurga (core) switch modelidir.

Üretici tanımı: 48 Port Full 10 Gigabit Optical Layer 3 Switch

Öne Çıkan Özellikler

High-capacity high-density 10G interface. It is the industry’s first-class 1U cassette switch, with up to 80x10G interfaces capability, meeting the challenge of high density and high bandwidth access in next-generation cloud computing data centers.
Virtual Switching Matrix (VSM). NSW6630 Series adopts Virtual Switching Matrix (VSM) technology, which performs virtualization of multiple physical devices into a single logical device for unified configuration and management.
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, NSW6630 Series provides CLI command lines and a Web management interface.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NSW6630-48XP8CQ-IN Managed Ethernet Switch.pdfPDF · NSW6630-48XP8CQ-IN

Sık sorulanlar

NSW6630-48XP8CQ-IN hakkında kısa yanıtlar.

NSW6630-48XP8CQ-IN kaç portlu?

NSW6630-48XP8CQ-IN 48 porta sahiptir.

NSW6630-48XP8CQ-IN fiyatı ne kadar?

NSW6630-48XP8CQ-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
