Uniview

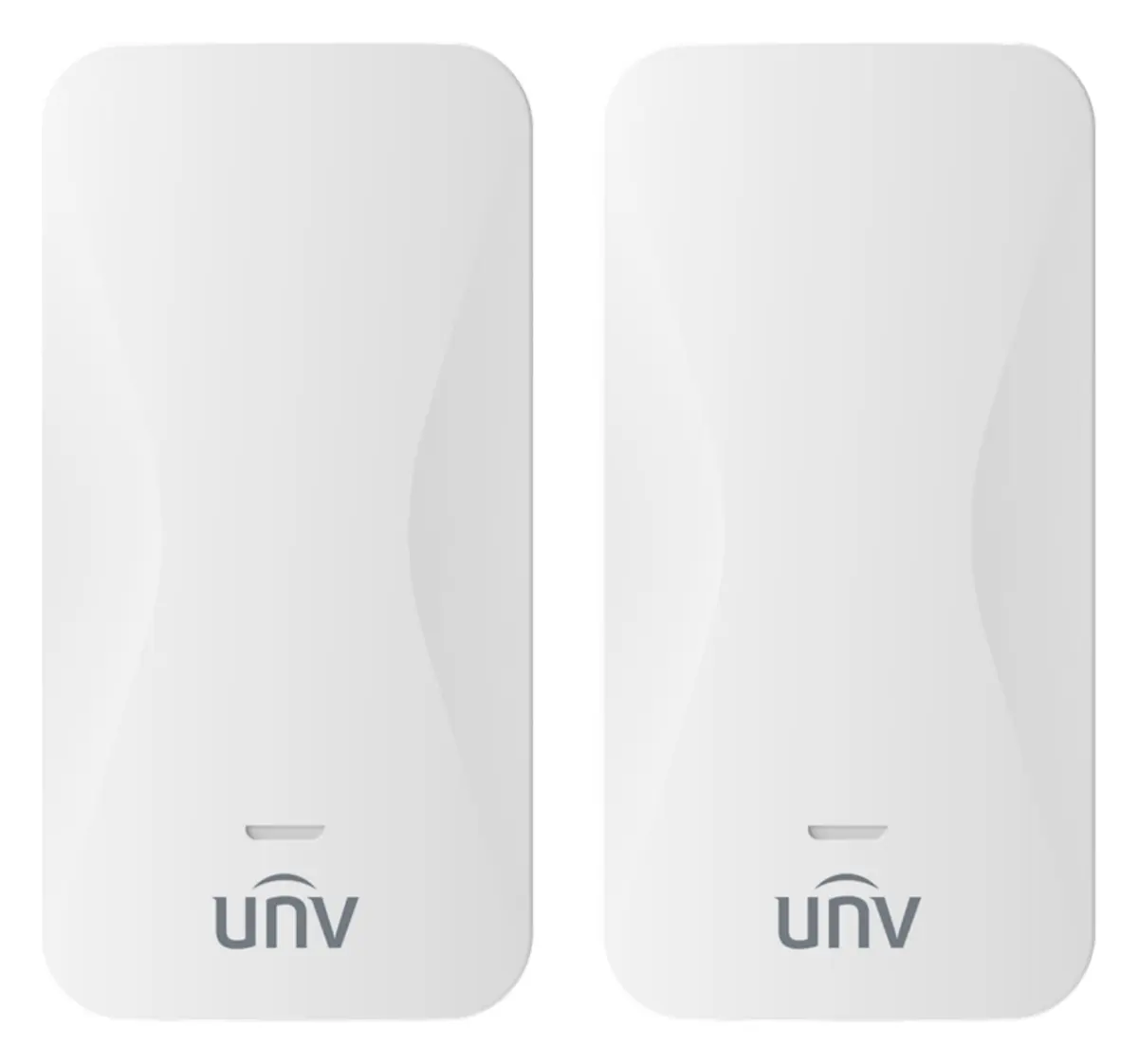

Uniview WB-500I-5AC-KIT-IN Kablosuz Köprü (Bridge)

ModelWB-500I-5AC-KIT-IN

Uniview WB-500I-5AC-KIT-IN kablosuz köprü (bridge): Supports 802.11a/n/ac standard (2*2 MIMO), The highest transmission rate of air interface is 867Mbps., Outdoor transmission distance: 0~500m, Support maximum 4*4MP cameras loading at 500m., Integrated antenna, quick installation.

Kablosuz standart: Wi-Fi 5

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Supports 802.11a/n/ac standard (2*2 MIMO)
The highest transmission rate of air interface is 867Mbps.
Outdoor transmission distance: 0~500m
Support maximum 4*4MP cameras loading at 500m.
Integrated antenna, quick installation
Shipped in pairs, no configuration required
Support one-click pairing. Press and hold the Reset button for 1 seconds to activate the automatic pairing mode.
Support intelligent channel analysis and automatic optimal channel selection

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	WB-500I-5AC-KIT-IN
Ürün Tanımı (Üretici)	500m Elevator Wireless Bridge(Wi-Fi5)

Donanım Özellikleri 20 satır

Dimensions(mm)	168×86×39mm
Weight(kg)	0.5kg
Montaj	Pole mounting, Wall mounting
Koruma Seviyesi	IP65
Anten Kazancı	8dBi
Beam Width	H：30°，V：30°
Max Power Consumption(W)	5W
Physical Interface	110/100Mbps RJ45,; 110/100Mbps RJ45 PoE in
Gösterge Işığı	1Power Indicator; 1WLAN Indicator; 1LAN Indicator; 4 Signal strength indicator; 1* 5G WiFi indicator
Maximum Transmitted Power	16±[email protected] VHT20 MCS0
Çalışma Sıcaklığı	-10℃ to 55℃
Çalışma Nemi	-40℃ to 70℃
İletim Mesafesi	500 meters
Transmission Capability	90Mbps/500m @AC40; 50Mbps/500m @AC20; 4×channels×4MP@AC40
Sıfırlama Butonu	Press and hold for 10 seconds to restore factory default settings, short press for 1 second to start pairing
Rx Sensitivity	-73±2dBm@AC80-MCS0; -55±2dBm@AC80-MCS9
Channels Width	20/40/80MHz, Auto/manual selection
ESD Protection	Contact 6KV , Air 8KV
Aşırı Gerilim Koruması	POE/GE: CM 2KV , DM 1KV
Güç Kaynağı	ModeA: powered by 12V passive POE injector; ModeB: Powered by DC12V adapter

Yazılım Özellikleri 8 satır

Protokol	IEEE 802.11a/n/ac
Frekans	5.150GHz～5.850GHz (Note: Available channel may vary with local regulations.)
Network Mode	Bridge
Yönetim	Web
Ethernet	IPv4 static, GHCP, VLAN, IGMP Snooping, Multicast Acceleration
Wi-Fi	Relay, User Isolation, Transmitted Power set
System and Maintaince	Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software.; Support system log and remote log.; Support NTP.
Güvenlik	WPA2-PSK, Hidden SSID, MAC Filtering

Genel bakış

Uniview WB-500I-5AC-KIT-IN kullanım alanları ve özellikleri.

Uniview WB-500I-5AC-KIT-IN, kablosuz köprü (bridge) modelidir.

Üretici tanımı: 500m Elevator Wireless Bridge(Wi-Fi5)

Öne Çıkan Özellikler

Supports 802.11a/n/ac standard (2*2 MIMO)
The highest transmission rate of air interface is 867Mbps.
Outdoor transmission distance: 0~500m
Support maximum 4*4MP cameras loading at 500m.
Integrated antenna, quick installation
Shipped in pairs, no configuration required
Support one-click pairing. Press and hold the Reset button for 1 seconds to activate the automatic pairing mode.
Support intelligent channel analysis and automatic optimal channel selection
Supports AP and relay modes.
Supports DC12V and 12V POE power supply.
IP65

Tüm özellikler

Supports 802.11a/n/ac standard (2*2 MIMO)
The highest transmission rate of air interface is 867Mbps.
Outdoor transmission distance: 0~500m
Support maximum 4*4MP cameras loading at 500m.
Integrated antenna, quick installation
Shipped in pairs, no configuration required
Support one-click pairing. Press and hold the Reset button for 1 seconds to activate the automatic pairing mode.
Support intelligent channel analysis and automatic optimal channel selection
Supports AP and relay modes.
Supports DC12V and 12V POE power supply.
IP65

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV WB-500I-5AC-KTT-IN 5G High-performance Bridge.pdfPDF · WB-500I-5AC-KIT-IN Hızlı Kurulum Kılavuzu - Quick Guide.pdfPDF · WB-500I-5AC-KIT-IN

Sık sorulanlar

WB-500I-5AC-KIT-IN hakkında kısa yanıtlar.

WB-500I-5AC-KIT-IN fiyatı ne kadar?

WB-500I-5AC-KIT-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
