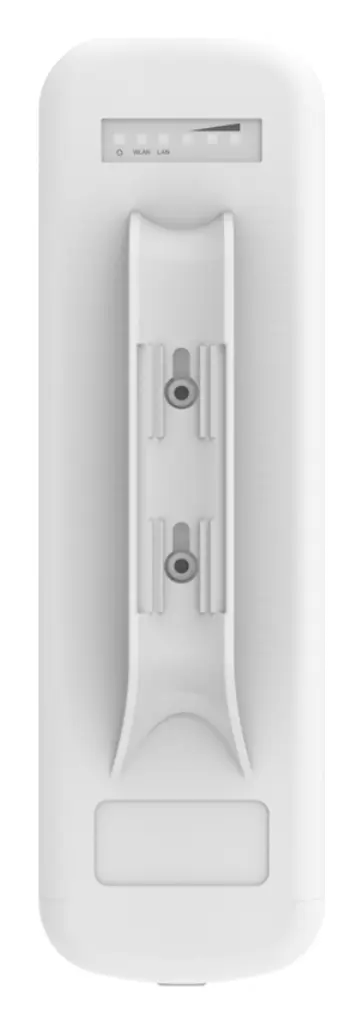

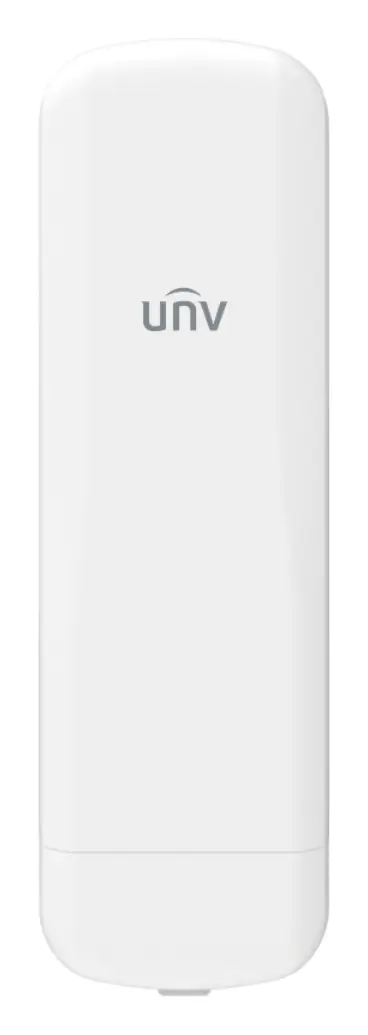

Uniview WLN-EB5E-IN Dış Mekan Kablosuz Köprü (Bridge)

ModelWLN-EB5E-IN

Uniview WLN-EB5E-IN kablosuz köprü (bridge): Supports 802.11a/n standard, The highest transmission rate is 90Mbps, Outdoor transmission distance: 0~3km, Integrated antenna, quick installation., Shipped in pairs, no configuration required.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Supports 802.11a/n standard
The highest transmission rate is 90Mbps
Outdoor transmission distance: 0~3km
Integrated antenna, quick installation.
Shipped in pairs, no configuration required
Built-in VTrans technology, including
1) TDMA: eliminate the performance degradation caused by hidden terminals and maximize the wireless transmission efficiency
2) Frequency (channel) expansion function: eliminate interference caused by the same frequency and adjacent frequency through more frequency selection

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	WLN-EB5E-IN
Ürün Tanımı (Üretici)	Outdoor 3KM Long-Distance Wireless Bridge

Donanım Özellikleri 20 satır

Dimensions(mm)	288x88x45mm
Weight(kg)	0.3kg
Montaj	Pole mounting; Diameter≤75mm
Koruma Seviyesi	IP65
Anten Kazancı	15dBi
Beam Width	H：40°，V：15°
Max Power Consumption(W)	8W
Average Power Consumption(W)	5W
İşlemci	AR9344
DDR \ Memory	64MB DDR2, 8MB Flash
Physical Interface	2*10/100Mbps
Gösterge Işığı	1Power Indicator; 1WLAN Indicator; 1LAN Indicator; 3 Signal strength indicator
Maximum Transmitted Power	27dBm
Çalışma Sıcaklığı	-40℃~65℃
Çalışma Nemi	5%~95%RH Non-condensing
Aşırı Gerilim Koruması	POE/GE: CM 1KV , DM 1KV
ESD Protection	Contact 6KV , Air 8KV
Wind Survivability	134km/h
Güç Kaynağı	24V Passive POE
Depolama Sıcaklığı	-40℃~85℃

Yazılım Özellikleri 7 satır

Protokol	802.11a/n
Frekans	5180~5320MHz、5745~5825MHz（China）; 5180~5320MHz、5500~5720MHz、5745~5825MHz（United States）; 5160~5340MHz、5480~5720MHz、5745~5865MHz（India）; 5160~5340MHz、5480~5720MHz、5745~5825MHz（United Arab Emirates）; 5745~5805MHz（Indonesia）; Supported frequency range：4920~6100MHz（should depend on the local regulation.）; * The above frequencies need specific version support
Operating Mode	AP, Station, WDS AP, WDS Station
Network Mode	Bridge/ Router
Yönetim	Support Web/AC/SNMP
Other	Timed restart，Support VLAN，QoS, Watchdog
Güvenlik	WPA2-PSK, Hidden SSID, IP/MAC Filtering

Genel bakış

Uniview WLN-EB5E-IN kullanım alanları ve özellikleri.

Uniview WLN-EB5E-IN, Dış Mekan kablosuz köprü (bridge) modelidir.

Üretici tanımı: Outdoor 3KM Long-Distance Wireless Bridge

Öne Çıkan Özellikler

Supports 802.11a/n standard
The highest transmission rate is 90Mbps
Outdoor transmission distance: 0~3km
Integrated antenna, quick installation.
Shipped in pairs, no configuration required
Built-in VTrans technology, including
1) TDMA: eliminate the performance degradation caused by hidden terminals and maximize the wireless transmission efficiency
2) Frequency (channel) expansion function: eliminate interference caused by the same frequency and adjacent frequency through more frequency selection
3) Band width selection: by adjusting the channel width, the overlapping parts of spectrum can be avoided and the influence of interference by other channels can be reduced
4) AutoAck function: intelligently calculate the ACK value required for long-distance transmission to achieve the optimal performance at this distance
Supports bridge and router modes. Network architecture can be flexibly deployed by adjusting the network mode of devices
Intelligent QoS wireless multimedia optimization technology, providing high priority transmission levels for voice and video
Supports web page management, making installation and maintenance of equipment more convenient
IP65

Tüm özellikler

Supports 802.11a/n standard
The highest transmission rate is 90Mbps
Outdoor transmission distance: 0~3km
Integrated antenna, quick installation.
Shipped in pairs, no configuration required
Built-in VTrans technology, including
1) TDMA: eliminate the performance degradation caused by hidden terminals and maximize the wireless transmission efficiency
2) Frequency (channel) expansion function: eliminate interference caused by the same frequency and adjacent frequency through more frequency selection
3) Band width selection: by adjusting the channel width, the overlapping parts of spectrum can be avoided and the influence of interference by other channels can be reduced
4) AutoAck function: intelligently calculate the ACK value required for long-distance transmission to achieve the optimal performance at this distance
Supports bridge and router modes. Network architecture can be flexibly deployed by adjusting the network mode of devices
Intelligent QoS wireless multimedia optimization technology, providing high priority transmission levels for voice and video
Supports web page management, making installation and maintenance of equipment more convenient
IP65

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV WLN-EB5E-IN Outdoor High-performance Bridge.pdfPDF · WLN-EB5E-IN

Sık sorulanlar

WLN-EB5E-IN hakkında kısa yanıtlar.

WLN-EB5E-IN fiyatı ne kadar?

WLN-EB5E-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
