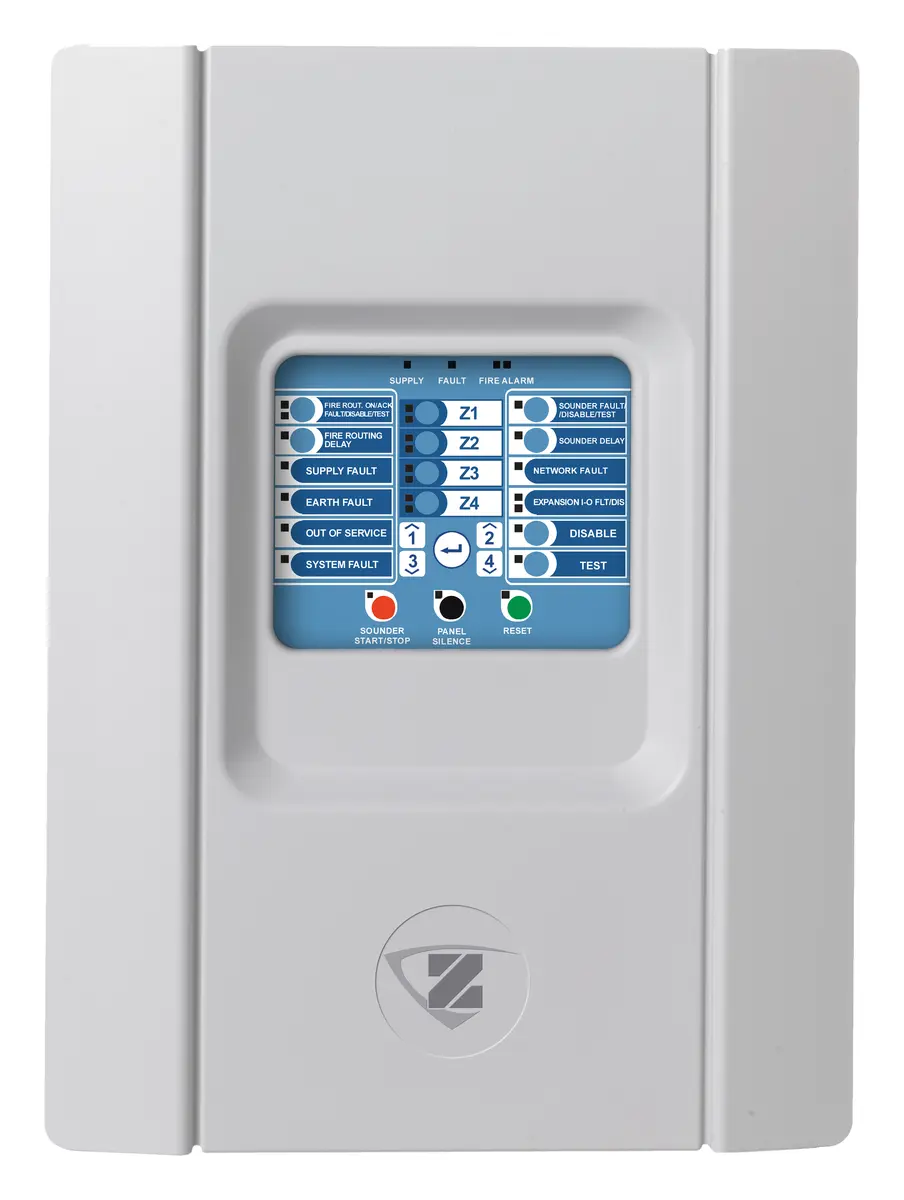

Ziton ZP1-F4 4 Bölge Konvansiyonel Yangın Alarm Paneli

Ziton ZP1-F4 (ZP1 - Panels ailesi), konvansiyonel yangın alarm paneli ürünüdür. EN54-13, EN54-2, EN54-4 standart/onaylarına uygundur.

Overview

ZP1 fire control panels offer state of the art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. They feature an attractive contemporary design that fits with any decor. The gently curved door front offers a distinctive flair. Operator controls are inset in a striking blue lexan.

With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.

The Panel

The ZP1-F4 is a conventional fire alarm control panel. It is supplied in local language with 4 zones that support up to 32 devices per zone, as well as up to 4 supervised relay outputs dedicated to sounder control and fire routing. In addition 2 conventional relay outputs dedicated to common fire and fault conditions, as well as two user configurable inputs for monitoring and control are available.

Options

The panels support 2 types of auxiliary relay boards, one with 4 standard relays, and one with 4 supervised relays. With these boards the panel outputs may be expanded with up to 8 additional outputs.

Approvals & Compliance

The product line carries the following accreditations:

• EN54:2, EN54:4 and CE approved • CPD certified • NEN2535, NBNS21-100 and BS5839-1 compliant

• WEEE compliant • RoHS compliant

Type class conditions: 3K5 of IEC 60721-3-3

Öne Çıkan Özellikler

• Modern, elegant design
• Easy removable parts for quick and clean installation
• Default regional setup modes
• Normal, head-out & intrinsically safe zone support
• Supervised alarm notification & fire protection outputs
• EN54 compliant potential free fire & fault relays
• Class change, day/night, remote reset, extended fire routing delay & fire routing inhibit delay facilities
• Auxiliary 24VDC supply output with reset support
• Default support for special functions such as: - EN54 compliant user access levels - mixed zones - full front panel diagnostics - one-man walk test
• Auxiliary standard & supervised relay output boards
• Networkable up to 64 zones

Nerelerde kullanılır?

Binadaki dedektör, buton ve sirenleri yöneten yangın algılama sisteminin merkezidir; alarmın yerini gösterir, tahliye uyarısını başlatır ve diğer sistemlerle (asansör, havalandırma, kapılar) entegre çalışır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Conventional Fire Panel - 4 Zone
• Modern, elegant design
• Easy removable parts for quick and clean installation
• Default regional setup modes
• Normal, head-out & intrinsically safe zone support
• Supervised alarm notification & fire protection outputs
• EN54 compliant potential free fire & fault relays
• Class change, day/night, remote reset, extended fire routing delay & fire routing inhibit delay facilities
• Auxiliary 24VDC supply output with reset support
• Default support for special functions such as: - EN54 compliant user access levels - mixed zones - full front panel diagnostics - one-man walk test
• Auxiliary standard & supervised relay output boards
• Networkable up to 64 zones
