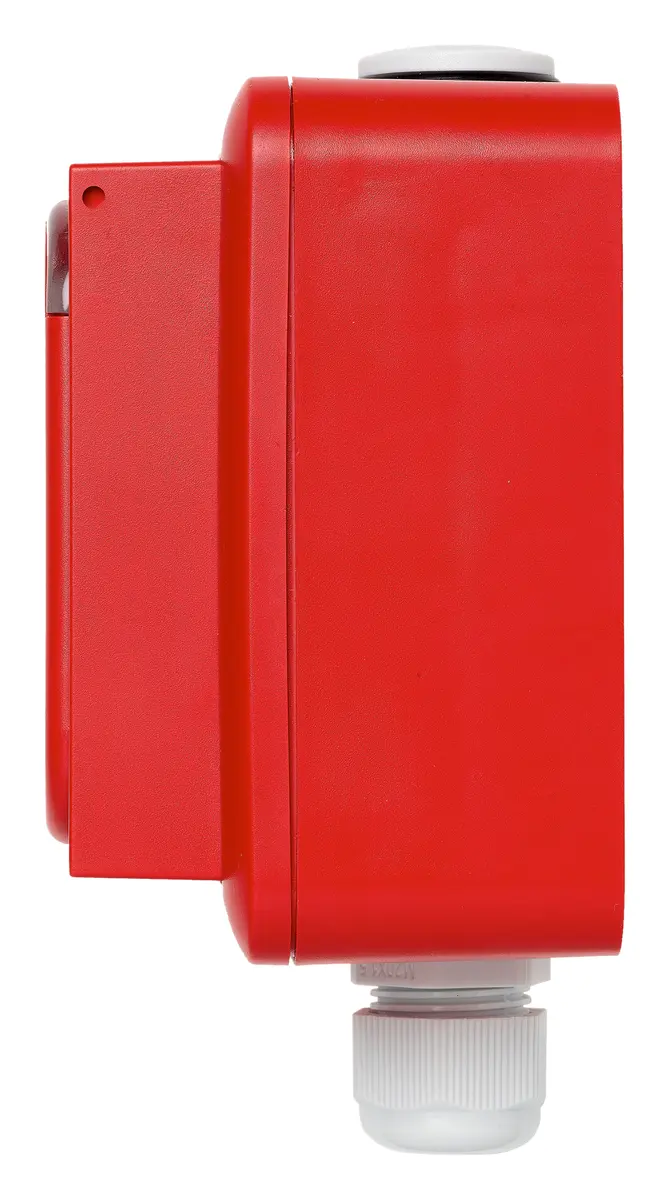

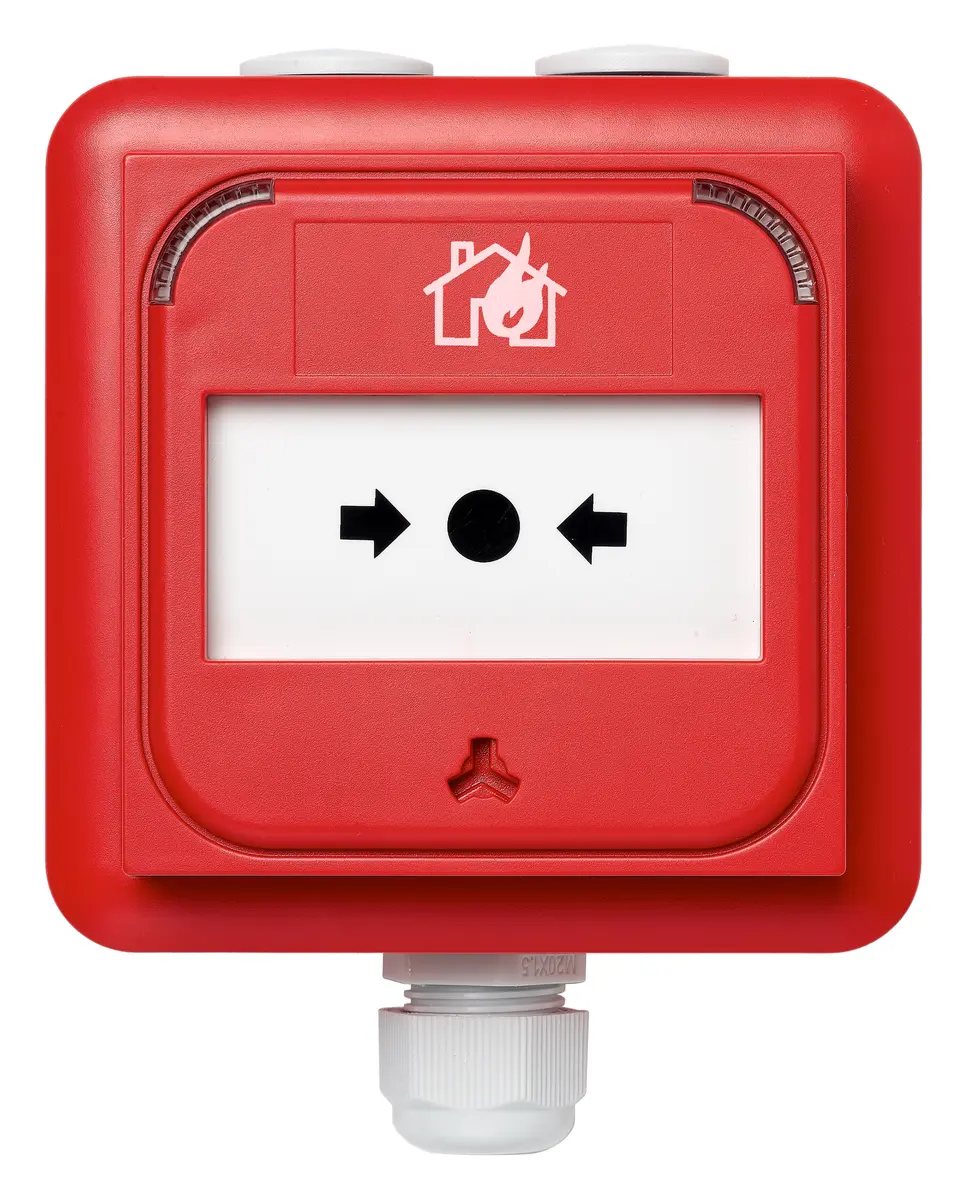

Ziton ZP888R Adresli Dış Ortam Yangın İhbar Butonu

Ziton ZP888R (ZP888 Series (Weatherproof EN) ailesi), adresli dış ortam yangın ihbar butonu ürünüdür. CPR standart/onaylarına uygundur.

General

The ZP880 Series is an intelligent range of addressable manual call points. The ZP888R is a red, single action weatherproof MCP. It is delivered complete with resettable element, test connector and test key. Multiple optional accessories are available to facilitate most outdoor installation requirements.

Aesthetics

This weatherproof single action MCP is a standard profile, outdoor MCP suitable for surface mount installations using the back box supplied with the product. With its designer dual, tricolour LEDs it offers 180°, clear local indication of its operational status, even from a side view. The clean face of the MCP is further enhanced by a front access & test key facility that allows access to the activation element that can be either frangible or resettable.

Installation & maintenance friendly

The front facing access for an aesthetically matching test key allows unhindered access regardless of the installation location. The MCP key doubles as a test and disassembly tool allowing removal of the MCP front cover without the need for additional tools.

Compatibility

The ZP880 range may be used on compatible Ziton fire systems. They can be deployed seamlessly into existing legacy systems without CIE configuration changes.

Öne Çıkan Özellikler

• Reliable single action manual call point for surface mounting
• A dual, tri-colour status indicator offers 180° alarm visibility
• Tamper resistant design with resetable or frangible element
• Unobtrusive front facing test facility
• Outdoor rated, waterproof enclosure

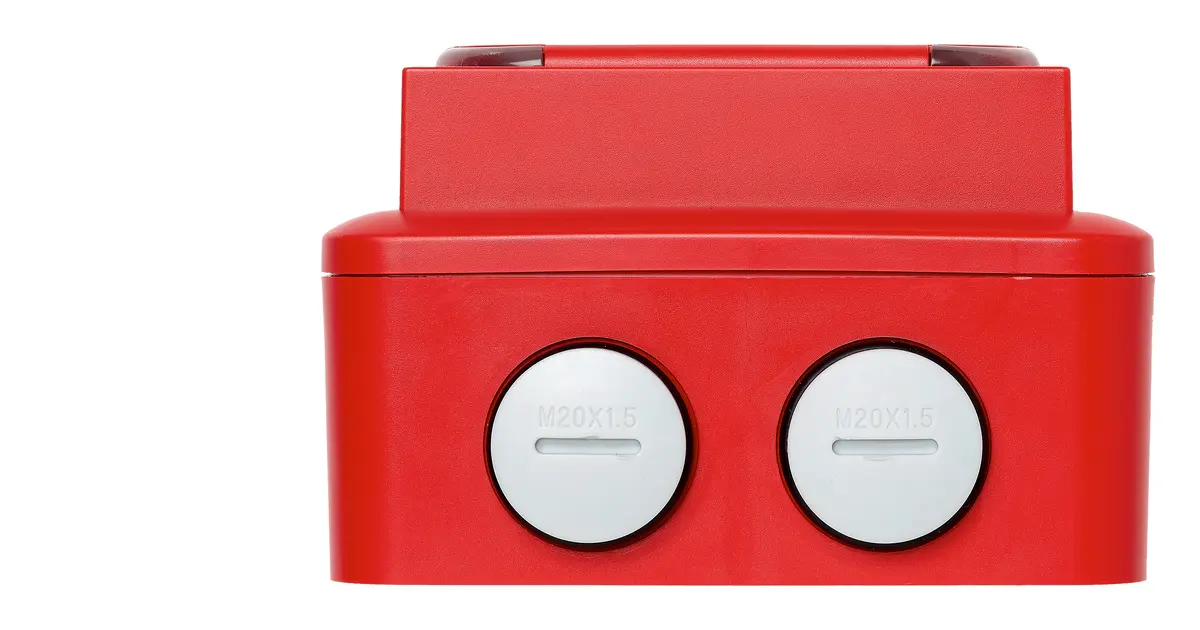

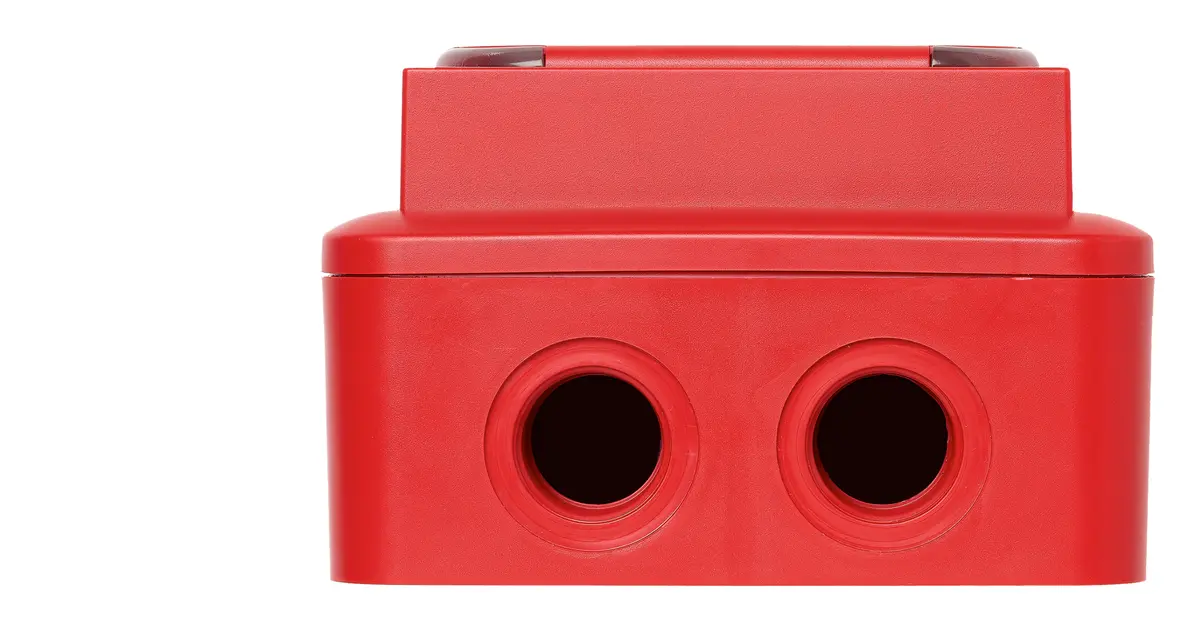

• Back box with top and bottom cable entry
• Screen connection terminal for electrically noisy installations
• Pluggable connector with link through facility for ease of installation and pre-commissioning testing
• Alarm flag on the face of the MCP allows maintenance indication even without alarm indicators
• Fast, no-tools-required maintenance using the test key
• Up to 127 devices per loop

Nerelerde kullanılır?

Yangın anında manuel ihbar ve binadaki kişilerin sesli/ışıklı uyarılması için kaçış yolları ve kat koridorlarında kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Ziton series intelligent addressable manual call point, weatherproof
• Reliable single action manual call point for surface mounting
• A dual, tri-colour status indicator offers 180° alarm visibility
• Tamper resistant design with resetable or frangible element
• Unobtrusive front facing test facility
• Outdoor rated, waterproof enclosure
• Back box with top and bottom cable entry
• Screen connection terminal for electrically noisy installations
• Pluggable connector with link through facility for ease of installation and pre-commissioning testing
• Alarm flag on the face of the MCP allows maintenance indication even without alarm indicators
• Fast, no-tools-required maintenance using the test key
• Up to 127 devices per loop
