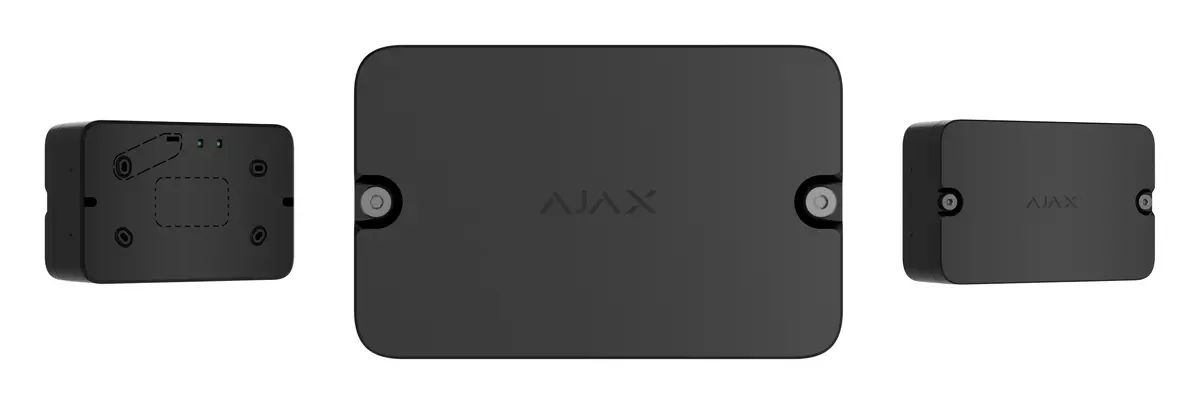

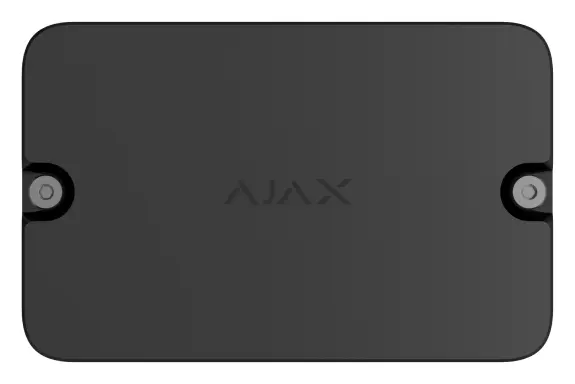

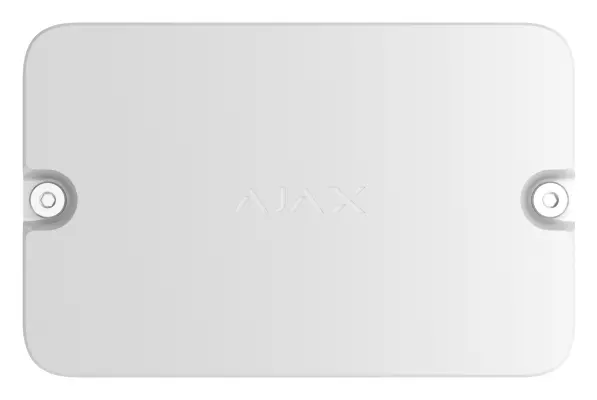

Ajax Type4 I/O Module (2x2) Jeweller Kablosuz Yangın Sistemi Giriş/Çıkış Modülü

Smart Type 4 integration made simple

Type4 I/O Module (2X2) Jeweller blurs the limits for use cases and compatibility in Type 4 setups. The integration module automates emergency responses by connecting third-party sounders through the module outputs. The inputs allow adding manual call points and other alerting devices to trigger the system at the first sign of danger. Designed to deliver an Ajax-level experience, the module offers out-of-the-box communication with the hub, intuitive configuration via Ajax apps, and zero-hassle maintenance.

Learn about the Ajax solution for Type 4 sites in a dedicated webinar for the French market. During the session, Ajax Systems experts will showcase the key features of Type4 Line products, which combine innovation, performance, and full compliance with local standards.

Smart integration of third-party devices

Type4 I/O Module (2X2) Jeweller expands the capabilities of a Type 4 fire alarm system. It features two inputs supporting the most common connection types, including 3EOL. The module uses them to integrate third-party manual call points and other alerting devices that instantly trigger system response. And with two outputs, the setup allows adding sounders, beacons, or status indicators to enhance on-site awareness. This combined solution ensures coordination across the entire fire alarm system, saving valuable seconds for safe evacuation.

Installation experience beyond standards

With Ajax, technological excellence is not only about compliance — it is about design that cuts down on the installer workload and makes system setup pleasant, intuitive, and error-free. Type4 I/O Module (2X2) Jeweller offers installation as it should be — complete in just minutes.

Unique wireless technology

When every second counts, there's no room for delays or a dropped connection. That's why Type4 I/O Module (2X2) Jeweller uses the onboard Jeweller two-way radio communication protocol. The device maintains a stable connection to the hub at distances of up to 1,700 m out of the box — no external communicators required. For sites with obstacles, an Ajax range extender can double the coverage or use an Ethernet connection to create a separate radio network.

Up to 1,700 m of radio communication with the hub or range extender

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Compliance with standards
• Configuration and testing in Ajax apps on-site or remotely
• 2 galvanically isolated outputs each supporting AC or DC
• 2 inputs supporting NC, NO, EOL, 2EOL, and 3EOL connection types
• Quick battery replacement
• Hassle-free installation with the bundled SmartBracket mounting panel and in-app setup
• 5 years of operation with pre-installed CR123A batteries and no external power supply
• Built-in Jeweller communication up to 1,700 m of wireless communication range with the hub or range extender
• Thoughtful design for cable routing from the back, sides, top, or bottom
• Damage prevention with a protective housing for the module board
