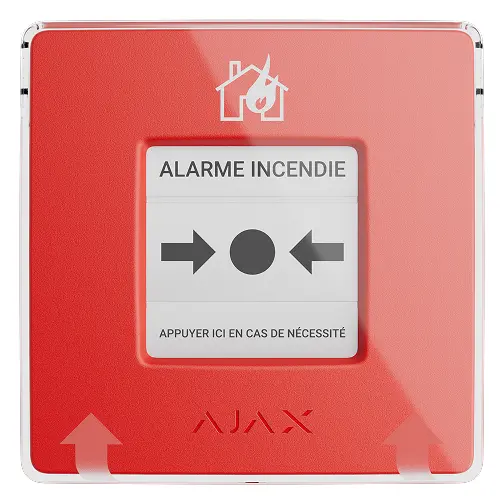

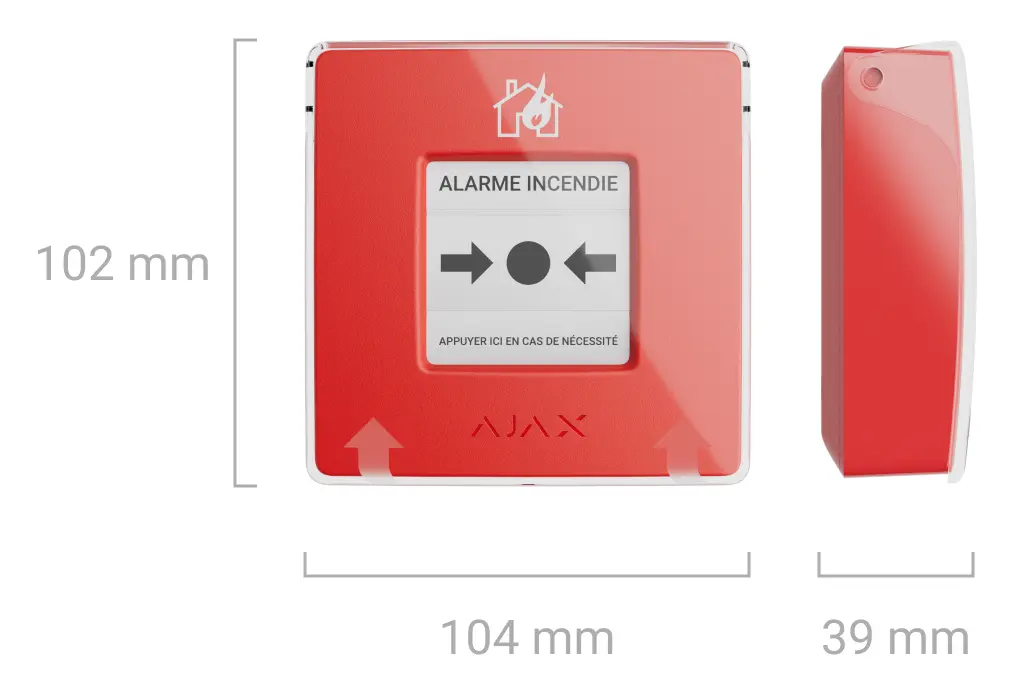

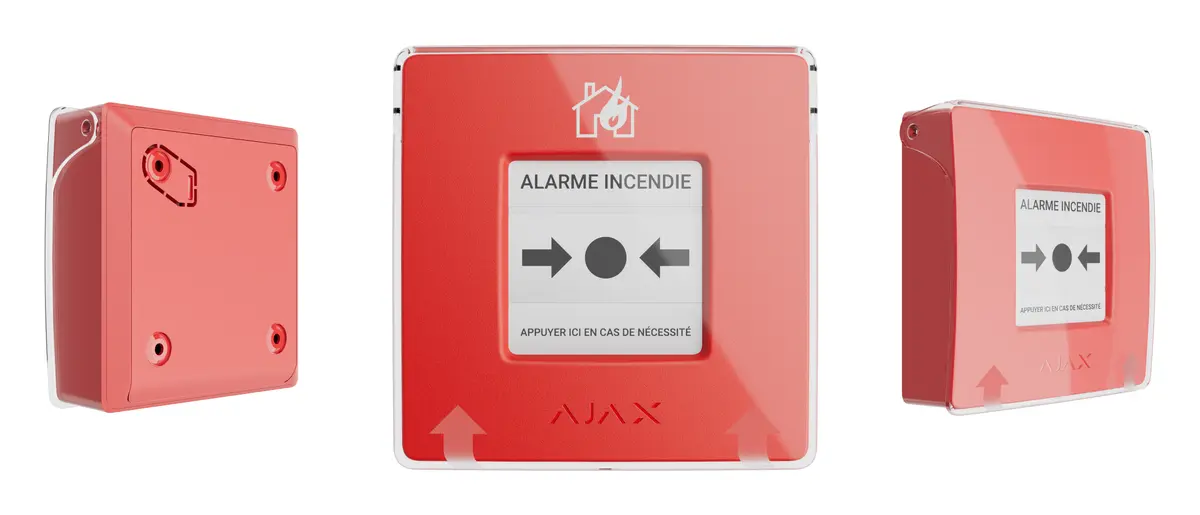

Ajax Type4 ManualCallPoint Jeweller Kablosuz Yangın İhbar Butonu

Fail-safe alarm activation

Type4 ManualCallPoint Jeweller is built for Type 4 fire detection and alarm systems. Pressing the button activates an alarm, ensuring an instant response and evacuation initiation. Simple to install and highly reliable, the device guarantees fast manual alarm activation when every second counts.

Learn about the Ajax solution for Type 4 sites in a dedicated webinar for the French market. During the session, Ajax Systems experts will showcase the key features of Type4 Line products, which combine innovation, performance, and full compliance with local standards.

Simplified yet flawless hardware

Type4 ManualCallPoint Jeweller features a thoughtful and reliable button-press mechanism. A minor failure can be crucial in a critical situation. The mechanism is simplified to several solid parts. Thus, the button cannot get stuck or fail to activate physically, and the possibility of failure in emergencies is reduced.

The button is designed for more than 500 presses throughout its lifecycle. If the button has triggered once, it will reliably continue to do so. Ajax rigorously tests 100% of the production during manufacturing. If the button passes testing upon installation, it will definitely raise an alarm when needed.

Unique wireless technology

When every second counts, there's no room for delays or a dropped connection. That's why Type4 ManualCallPoint Jeweller uses the onboard Jeweller two-way radio communication protocol. This proprietary Ajax technology goes beyond the standard and helps activate sounders and VADs in as little as three seconds after a fire alarm is triggered by pressing Type4 ManualCallPoint Jeweller.

The device maintains a stable connection to the central unit at a distance of up to 1,700 m out of the box — no external communicators required. For sites with obstacles, a Type4 range extender can double the coverage or use an Ethernet connection to create a separate radio network.

Stable performance for years

Type4 ManualCallPoint Jeweller combines wireless connectivity, data-rich notifications, and supervision capabilities with outstanding longevity. The device operates for up to seven years on the pre-installed batteries. When the time comes, the Ajax system will notify you in advance about the need for battery replacement.

Effortless installation and maintenance

Type4 ManualCallPoint Jeweller is ready to operate straight out of the box. There is no need to disassemble the button during installation. Ajax apps help quickly integrate the device into the ecosystem. The parameters from a device profile are always up-to-date and instantly available via Ajax apps. All settings are configured via toggles in an intuitive interface, eliminating the risk of human error.

The button does not require regular manual testing. A self-test system automatically reports the device's state to the central unit. A key for after-press reset is included in the complete set.

Nerelerde kullanılır?

Yangın anında manuel ihbar ve binadaki kişilerin sesli/ışıklı uyarılması için kaçış yolları ve kat koridorlarında kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Alarm activation when pressing the button
• Resilient button mechanism with minimum agile components to reduce the risk of failure
• Up to 1,700 m wireless communication range with central unit or range extender
• Up to 7 years
• Informative push notifications
• Transparent front lid to prevent accidental alarm activation
• Configuration and testing in Ajax apps
• Tamper button to detect dismantling or detachment
• Built for various conditions with 0 °C to +50 °C operating temperature
• Device compatibility
