Ajax Type4 Fire Hub Jeweller Kablosuz Yangın Alarm Paneli

Type 4 protection for the IoT era

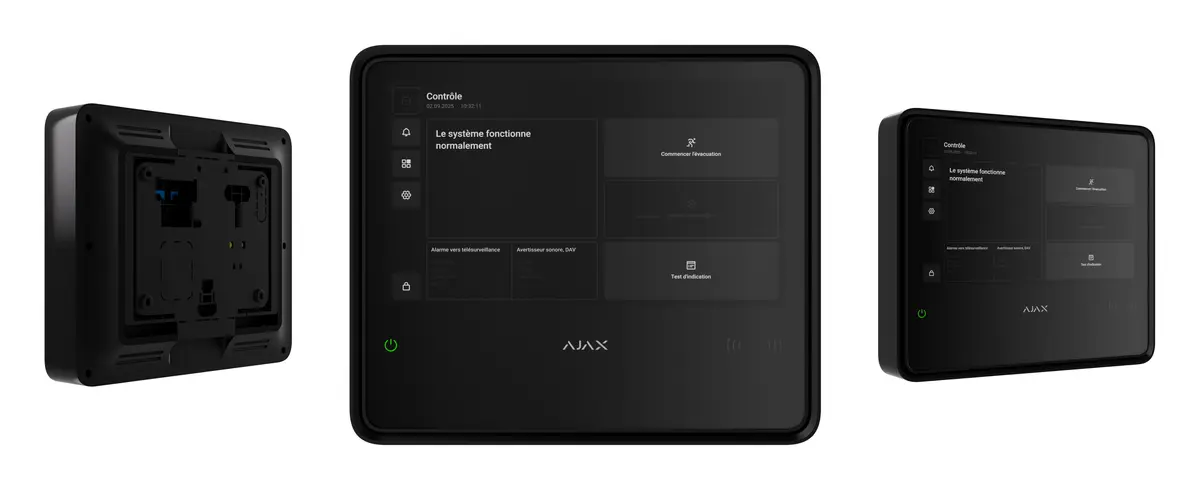

Meet Type4 Fire Hub Jeweller — the touchscreen central unit designed for all-around management of fire alarm equipment. It's easy to install, simple to use, and doesn't require much upkeep. It is engineered specifically for Type 4 sites and features built-in Ethernet, cellular, and radio communicators for seamless connectivity across the system. With its large touch screen and intuitive interface, the central unit provides detailed system status and alarm notifications, ensuring that staff are immediately aware of any situation.

Learn about the Ajax solution for Type 4 sites in a dedicated webinar for the French market. During the session, Ajax Systems experts will showcase the key features of Type4 Line products, which combine innovation, performance, and full compliance with local standards.

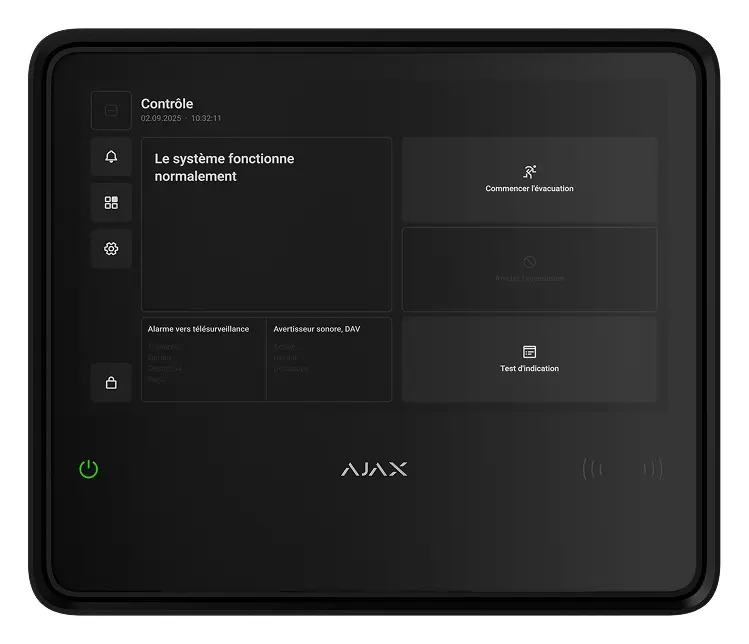

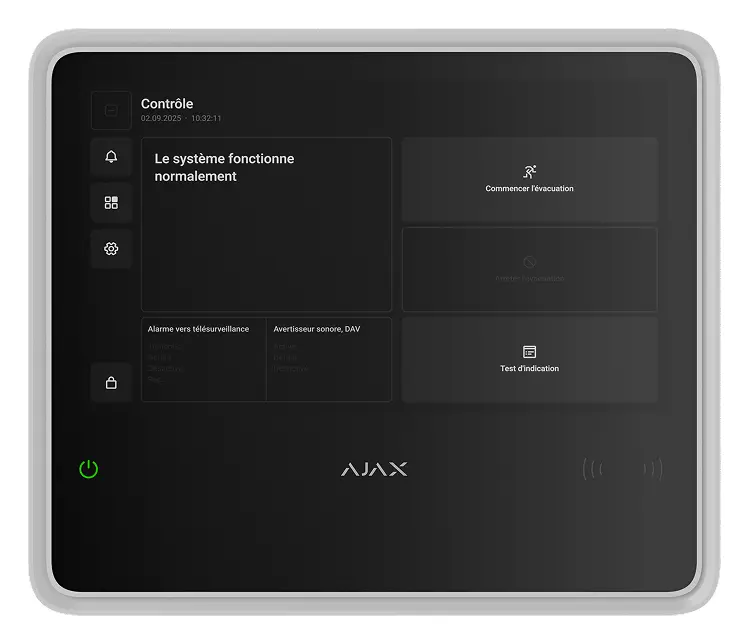

Big screen. Even bigger control.

All mandatory controls are just a tap away. The large, ultra-responsive touch screen is designed for effortless navigation and control of the entire fire alarm system. Built-in LED indicators and a buzzer provide instant alerts for alarms, faults, and system status updates. On-screen event log shows exactly which device and zone need attention — nothing gets missed.

The Evacuation control tab provides authorized users with instant access to critical evacuation management features, ensuring compliance with EN 54. With just a tap, users can:

Breaking old ways with powerful apps

Type4 Fire Hub Jeweller works in synergy with free mobile and desktop Ajax apps that seamlessly integrate into security professionals' workflow. No programming, no outdated configuration tools — just an intuitive interface for faster installations, easier facility management, and efficient remote service.

Maintain Ajax systems, monitor alarms, and confirm them using a visual verification feature

All communicators built-in

Type4 Fire Hub Jeweller is fully equipped with all necessary communicators, so there is no need to install additional modules. Communicators provide seamless connectivity between the central unit and sounders, VADs, I/O modules, manual call points, and other system devices. When the manual call point is pressed, the alarm is spread to the sounders and VADs in just 3 seconds. At the same time, the fire alarm event is sent to the monitoring station via Wi-Fi, Ethernet, or 2G/4G (LTE).

Transmits the real-time device statuses, alarms, events, and all measured readings to the Ajax apps.

Quick installation and easy setup

Ajax Systems redefines how easy and fast a fire alarm can be installed in the industry known for its complexity. Type4 Fire Hub Jeweller comes fully assembled and ready to operate right out of the box. The central unit can be installed in minutes without opening the enclosure. Insert the internal battery into a compartment and provide either 24 or 72 hours of the central unit's backup runtime (depending on the battery version).

All system devices can be added and configured via mobile or desktop Ajax apps, so getting started is as efficient as it gets. There's no need to program complex logic manually — configure the system following clear instructions through an intuitive, self-explanatory interface.

Flexible controls and maintenance safety

The Ajax system allows installers to disable individual devices for maintenance or testing without affecting the rest of the system. The central unit displays each device, indicating which ones are active and which are under maintenance. Alarm and fault transmissions can also be paused to ensure smooth commissioning without unnecessary alerts. To disable or test system devices, the installer must authorize via a central unit using a code or an access device.

Type4 Fire Hub Jeweller supports up to 200 personal access codes. Each user's code and access rights can be managed remotely in real time via Ajax apps — there is no need to visit the site. If a code is compromised, it can be removed in seconds.

Safety without obstacles

Type4 Line is suitable for a wide range of facilities, from small restaurants to schools and municipal buildings. With a wireless communication range of up to 1,800 meters between the central unit and system devices, it offers reliable performance even across large premises.

To extend coverage even further, the Type4 Fire ReX Jeweller range extender connects to the central unit wirelessly and via Ethernet. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big. It's the perfect solution for multi-story buildings or facilities with thick walls, allowing devices to operate at greater distances without compromising reliability.

Nerelerde kullanılır?

Binadaki dedektör, buton ve sirenleri yöneten yangın algılama sisteminin merkezidir; alarmın yerini gösterir, tahliye uyarısını başlatır ve diğer sistemlerle (asansör, havalandırma, kapılar) entegre çalışır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• communication range of up to 1,800 m
• Remote control and configuration via Ajax apps
• Up to 200 devices within one system
• Internet connection
• Communication with devices
• Up to 5 range extenders per central unit
• LED indication on fire alarms and overall system status
• 2 relay outputs for transmitting events to service providers
• Addressability of each system device
• Built-in 60 dB buzzer
