Rosslare

Kartlı & Parmak İzli Geçiş High-end BIO9000

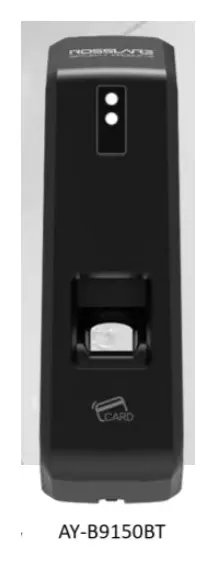

Rosslare AY-B9150BT Professional Fingerprint Biometric Reader Parmak İzi Okuyucu

ModelAY-B9150BT

Rosslare AY-B9150BT parmak izi okuyucu: Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing, Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory, Built-in output relay for controlling a local device, High performance CPU and mem.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory
Built-in output relay for controlling a local device
High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second)
Built-in TCP/IP, RS-485, and Wiegand output connectivity
Non-volatile event log of up to 100,000 entries
IP65 rated for indoor and outdoor use
Wide thermal operating range (-20°C to 60°C)

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 12 satır

Giriş Gerilimi	Regulated adaptor: 12 to 24 VDC ± 5%
Giriş Akımı	Maximum: 300 mA ± 10%, at 12 VDC
Technology	Optical
Image Resolution	500 DPI
Scan Area	15 x 18 mm
Liveness Detection	Yes. Detects and rejects fake fingerprints (silicone, rubber, paper, etc.)
Kapasite	20,000 templates (up to 10,000 users) 1:N matching time: less than 1 second (4,000 templates)
Röle Çıkışı	1 Form C relay (N.O. and N.C.), rated 1 A at 30 V, for lock strike
Girişler	3 inputs (2 door monitor, 1 exit)
Interoperability	ISO 19794-2, ANSI 378 template support
Device Certifications	CE, FCC
All product names, logos, and brands are property of	their respective owners.

RF Özellikleri 3 satır

MIFARE Reader	Built-in 13.56 MHZ RFID card reader for ISO14443A and ISO14443B (CSN only)
Bluetooth Credentials	Supports Bluetooth 4.0 Rosslare BLE-ID™ credentials for iOS and Android
Bluetooth Admin	Supports Bluetooth 4.0 BLE-Admin™ configuration apps for iOS and Android

Çevresel Özellikler 3 satır

Ingress Protection	IP65
Çalışma Sıcaklığı	-20 °C to 60 °C (-4 °F to 140 °F)
Çalışma Nemi	Up to 90% RH

Haberleşme 4 satır

Cpu	ATMEL 400 MHz
Bellek	64 MB DRAM, 256 MB flash
Haberleşme	Wiegand (26-bit / 34-bit), RS-485, TCP/IP (10/100 Mbps), Bluetooth 4.0 (BLE)
LED Indicator / Buzzer	2 RGB LEDs and 1 internal buzzer for audible indication

Donanım Özellikleri 2 satır

Boyutlar (Y x G x D)	58 x 188 x 49.8 mm (2.28 x 7.4 x 1.96 in.)
Ağırlık	700 g (1.54 lb)

Genel bakış

Rosslare AY-B9150BT kullanım alanları ve özellikleri.

The AY-B9150BT professional-grade fingerprint terminal has a high-speed optical sensor with a capacity of 20,000 templates. Powerful algorithms provide liveness check and encrypted data storage.

The terminal has a built-in 13.56 MHz RFID card terminal and an integrated Rosslare BLE-ID™ mobile application.

It supports RS-485, TCP/IP, and Wiegand 26-bit or 34-bit connectivity. The AxTraxPro platform enables easy terminal setup.

The terminal is also compatible with RosslareBio 9000, the Rosslare standalone management software, which is perfect for interfacing with existing third-party systems.

The AY-B9150BT networked fingerprint terminal has a capacity for 20,000 fingerprint credential templates, liveness check, and high-speed operation with a built-in 13.56 MHz RFID card reader.

A built-in Bluetooth 4.0 smartphone interface reads Rosslare BLE-ID™ credentials and works with the Rosslare BLE-Admin™ configuration apps for iOS and Android.

The AxTraxPro platform and the RosslareBio 9000 Client/Server management suite for Windows OS manage up to 2,000 terminals. RosslareBio 9000 supports up to 16 PC clients for enrollment and template distribution, which is ideal for networked fingerprint system operation and deployment.

Main Features

Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory
Built-in output relay for controlling a local device
High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second)
Built-in TCP/IP, RS-485, and Wiegand output connectivity
Non-volatile event log of up to 100,000 entries
IP65 rated for indoor and outdoor use
Wide thermal operating range (-20°C to 60°C)
Built-in tamper and buzzer
Modern design that blends into almost any architectural challenge

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory
Built-in output relay for controlling a local device
High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second)
Built-in TCP/IP, RS-485, and Wiegand output connectivity
Non-volatile event log of up to 100,000 entries
IP65 rated for indoor and outdoor use
Wide thermal operating range (-20°C to 60°C)
Built-in tamper and buzzer
Modern design that blends into almost any architectural challenge

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-B9150BT

Sık sorulanlar

AY-B9150BT hakkında kısa yanıtlar.

AY-B9150BT fiyatı ne kadar?

AY-B9150BT için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
