Rosslare

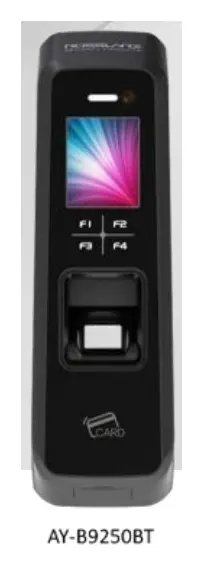

Rosslare AY-B9250BT Professional Fingerprint Biometrics Reader Parmak İzi Okuyucu
Kartlı & Parmak İzli Geçiş High-end BIO9000

Rosslare AY-B9250BT Professional Fingerprint Biometrics Reader Parmak İzi Okuyucu

ModelAY-B9250BT

Rosslare AY-B9250BT parmak izi okuyucu: Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing, Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory, Built-in color LCD, camera for transaction capture, 4 touch buttons, Build in came.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
  • Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory, Built-in color LCD, camera for transaction capture, 4 touch buttons
  • Build in camera for access validation snapshots
  • High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second).
  • Built-in TCP/IP, RS-485, and Wiegand 26- or 34-bit output connectivity
  • IP65 rated for indoor and outdoor use.
  • Support for Rosslare BLE-ID TM smartphone credentials (Both iOS and Android)
  • Built-in tamper and buzzer, output relay for controlling a local device

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 12 satır
Giriş GerilimiRegulated adaptor: 12 to 24 VDC ± 5%
Giriş AkımıMaximum: 400 mA, at 12 VDC
TechnologyOptical
Image Resolution500 DPI
Scan Area15 x 18 mm
Liveness DetectionYes. Detects and rejects fake fingerprints (silicone, rubber, paper, etc.)
Kapasite20,000 templates (up to 10,000 users) 1:N matching time: less than 1 second (4,000 templates)
Röle Çıkışı1 Form C relay (N.O. and N.C.), rated 1 A at 30 V, for lock strike
Girişler4 inputs (3 door monitor, 1 exit)
InteroperabilityISO 19794-2, ANSI 378 template support
Device CertificationsCE, FCC
All product names, logos, and brands are property of theirrespective owners.
RF Özellikleri 3 satır
MIFARE ReaderBuilt-in 13.56MHz RFID card reader for ISO14443A and ISO14443B (CSN only)
Bluetooth CredentialsSupports Bluetooth 4.0 Rosslare BLE-ID™ credentials for iOS and Android
Bluetooth AdminSupports Bluetooth 4.0 BLE-Admin™ configuration apps for iOS and Android
Çevresel Özellikler 3 satır
Ingress ProtectionIP65
Çalışma Sıcaklığı-20 °C to 60 °C (-4 °F to 140 °F)
Çalışma NemiUp to 90% RH
Haberleşme 5 satır
LCD / Camera / KeysFull-color LCD (128 x 160 px), camera for 10,000 image logs, and 4 touch keys
CpuATMEL 400 MHz
Bellek64 MB DRAM, 256 MB flash
HaberleşmeWiegand (26-bit / 34-bit), RS-485, TCP/IP (10/100 Mbps), Bluetooth 4.0 (BLE)
LED Indicator / Buzzer2 RGB LEDs and 1 internal buzzer for audible indication
Donanım Özellikleri 2 satır
Boyutlar (Y x G x D)58 x 191 x 62 mm (2.28 x 7.52 x 2.44 in.)
Ağırlık700 g (1.54 lb)

Genel bakış

Rosslare AY-B9250BT kullanım alanları ve özellikleri.

The AY-B9250BT terminal has 4 touch keys, a full-color LCD, a pinhole camera, and memory that records photo snapshots based on terminal activity.

The AY-B9250BT is a professional-grade fingerprint terminal with a high-speed optical sensor and a capacity of 20,000 templates. Powerful algorithms provide liveness check and encrypted data storage.

The terminal has a built-in 13.56 MHz RFID card reader and an integrated Rosslare BLE-ID™ mobile application.

supports RS-485, TCP/IP, and Wiegand 26-bit or 34-bit connectivity. The AxTraxPro platform software enables easy terminal setup.

The terminal is also compatible with RosslareBio 9000, the Rosslare standalone management software, which is perfect for interfacing with existing third-party systems.

The AY-B9250BT networked fingerprint terminal has a capacity for 20,000 fingerprint credential templates, liveness check, and high-speed operation with a built-in MHz 13.56MHz RFID card reader.

A built-in Bluetooth 4.0 smartphone interface reads Rosslare BLE-ID™ credentials and works with the Rosslare BLE-Admin™ configuration apps for iOS and Android.

The AxTraxPro platform and the RosslareBio 9000 Client/Server management suite for Windows OS manage up to 2,000 terminals. RosslareBio 9000 supports up to 16 PC clients for enrollment and template distribution, which is ideal for networked fingerprint system operation and deployment.

Main Features

  • Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
  • Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory, Built-in color LCD, camera for transaction capture, 4 touch buttons
  • Build in camera for access validation snapshots
  • High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second).
  • Built-in TCP/IP, RS-485, and Wiegand 26- or 34-bit output connectivity
  • IP65 rated for indoor and outdoor use.
  • Support for Rosslare BLE-ID TM smartphone credentials (Both iOS and Android)
  • Built-in tamper and buzzer, output relay for controlling a local device
  • Modern design that blends into almost any architectural challenge

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

  • Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
  • Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory, Built-in color LCD, camera for transaction capture, 4 touch buttons
  • Build in camera for access validation snapshots
  • High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second).
  • Built-in TCP/IP, RS-485, and Wiegand 26- or 34-bit output connectivity
  • IP65 rated for indoor and outdoor use.
  • Support for Rosslare BLE-ID TM smartphone credentials (Both iOS and Android)
  • Built-in tamper and buzzer, output relay for controlling a local device
  • Modern design that blends into almost any architectural challenge

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-B9250BT

Sık sorulanlar

AY-B9250BT hakkında kısa yanıtlar.

AY-B9250BT fiyatı ne kadar?
AY-B9250BT için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

Hızlı teklif

Formu doldurun, AY-B9250BT için fiyat ve teslim süresini iletelim.
