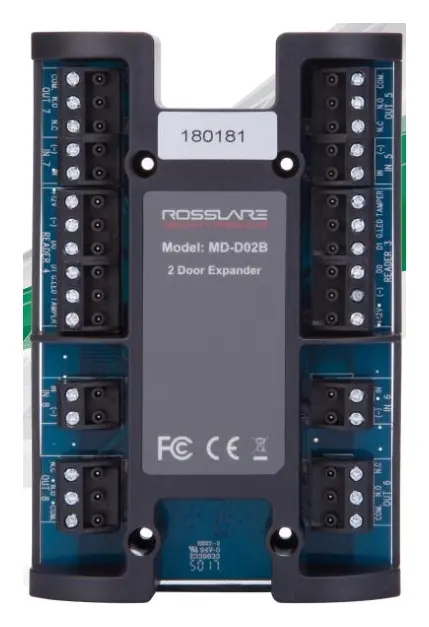

Rosslare MD-D02B 2-Reader Expansion Module for AC-225x-B Control Panel Okuyucu Modülü
Kartlı & Parmak İzli Geçiş Networked Control Panels

Rosslare MD-D02B 2-Reader Expansion Module for AC-225x-B Control Panel Okuyucu Modülü

ModelMD-D02B

Rosslare MD-D02B okuyucu modülü: Additional two proximity readers or keypads, Four relay outputs and four supervised inputs to the access control panel, Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility, LED status feedback for 12 V power and relay activation, Co.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Additional two proximity readers or keypads
  • Four relay outputs and four supervised inputs to the access control panel
  • Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
  • LED status feedback for 12 V power and relay activation
  • Cost effective and modular installation
  • Input and output configurability using Rosslare’s AxTraxNG or AxTraxPro Access Control Management Software

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 6 satır
Giriş Gerilimi12 VDC from host controller
Input Current (not including devices)Standby: 30 mA Maximum: 135 mA
Number of Reader Ports2
Number of Inputs4
Output Relays4 x 5 A with N.O., N.C. and COM contacts Form-C Relays
Inputs Voltage5 VDC maximum voltage
Teknik Özellikler 8 satır
Input Typeresistor (three states, normally open or normally closed), Supervised with two resistors (four states, Normally Open or Normally Closed)
Reader Output Voltage12 VDC
Maximum Reader Current300 mA
LED Control OutputOpen collector, active low
Tamper Input5 VDC maximum voltage
Supported FormatsVarious, please refer to the AxTraxNG User Guide or the AxTraxPro User Guide
Power LEDActive when connected to a power source Four LEDs, each output LED is active when an output relay is activated
Output LEDsand N.O. to COM contacts are shorted
Fiziksel Özellikler 2 satır
Dimensions (L x W x H)100 x 75.9 x 32.5 mm (3.9 x 3.0 x 1.3 in.)
Ağırlık98.2 g (0.2 lb)
Genel 2 satır
Sistem BileşenleriThe MD-D02B is compatible with a variety of Rosslare's single/double/multi-door controllers, any keypad or biometric reader that supports the Wiegand or Clock-and-Data transmission formats, as well as with many third-party access control units.
Garanti2-year limited product warranty

Genel bakış

Rosslare MD-D02B kullanım alanları ve özellikleri.

Rosslare’s MD-D02B is a plug-in expansion module for Rosslare’s AC-225x-B access control panels that provides a 2-reader interface, 4 supervised inputs with end-of-line (EOL) resistor protection, and 4 relay outputs (5 Amp Form-C N.O./N.C.) to the panel. Installation of the module takes under one minute with the tailored expansion port in the panels and auto- recognize by the panel. Once it is installed and the panel is powered on, the expansion is recognized by Rosslare’s AxTraxNG™ or AxTraxPro™ server, and the MD-D02B can be programmed for access control and automation. Advanced communication with the controller allows for firmware update and real-time event logging, with support for full offline operation by the host panel.

Rosslare’s MD-D02B 2-Reader expansion board is designed with a focus on high quality and reliability and is ideal for residential and commercial applications.

Easy to install and operate, the MD-D02B expansion board features supervised communications with the controller.

The expansion board adds two additional readers or keypad inputs, four relay outputs, and four supervised inputs to the access control panel. As a result, an access control panel with the MD-D02B expansion board can support a total of four readers and four doors. In addition, it is possible to add any keypad or biometric reader that supports Wiegand, Clock-and-Data or any other format supported by Rosslare's AxTraxNG or AxTraxPro Access Control Management Software transmission formats.

The host access controller has complete control over the additional readers, inputs, and outputs of the MD-D02B expansion board.

for Rosslare’s AC-225x-B access control supervised inputs with end-of-line (EOL) resistor N.O./N.C.) to the panel. Installation of the expansion port in the panels and auto- the panel is powered on, the expansion is server, and the MD-D02B can be Advanced communication with the controller logging, with support for full offline operation

Main Features

  • Additional two proximity readers or keypads
  • Four relay outputs and four supervised inputs to the access control panel
  • Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
  • LED status feedback for 12 V power and relay activation
  • Cost effective and modular installation
  • Input and output configurability using Rosslare’s AxTraxNG or AxTraxPro Access Control Management Software

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · MD-D02B
