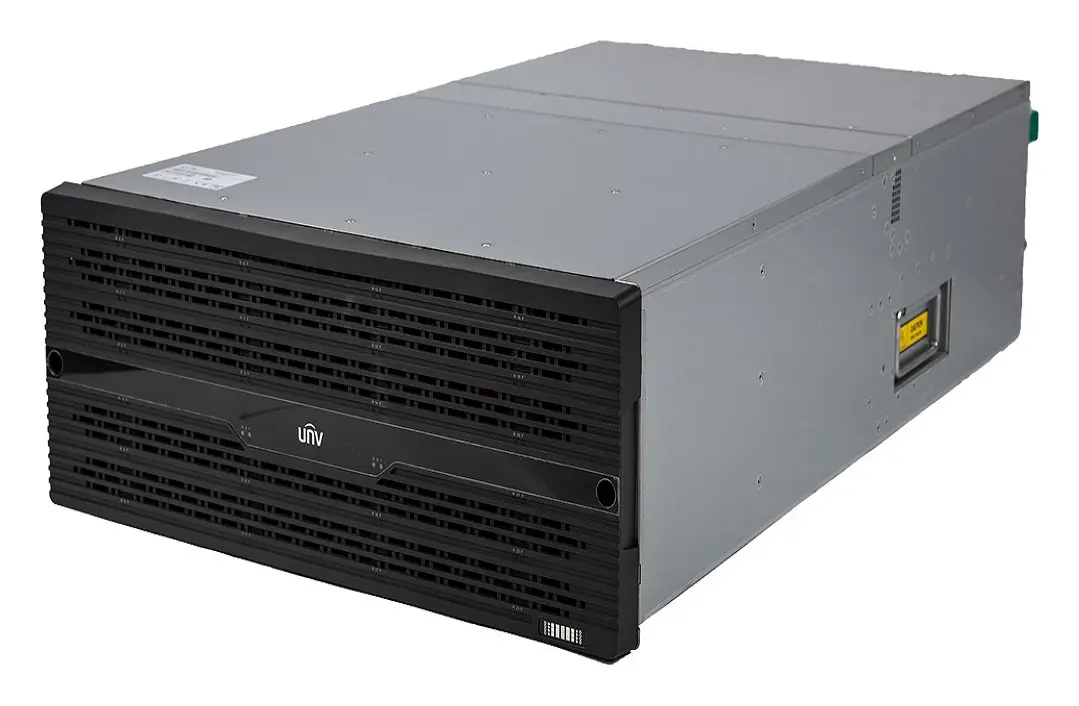

Uniview DE3148-V2 Disk Genişletme Ünitesi
Model
DE3148-V2Uniview DE3148-V2 disk genişletme ünitesi: High-Quality Hardware Design, high performance, 12Gbps SAS-3 technology provides superior performance experience, High density, The innovative enclosure with 981mm depth and4U height that holds up to 60disks, is space-saving and applicable to the standard rack.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- High-Quality Hardware Design
- high performance
- 12Gbps SAS-3 technology provides superior performance experience
- High density
- The innovative enclosure with 981mm depth and4U height that holds up to 60disks, is space-saving and applicable to the standard rack-mounted scenarios.
- Redundant power supplies
- The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.
- Power protection
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 2 satır
| Model | DE3148-V2 |
|---|---|
| Ürün Tanımı (Üretici) | 48 Network Storage Disk Enclosure Unit |
Modül 7 satır
| Controller number | 2 |
|---|---|
| Güç Tüketimi | 450W (fully loaded) |
| Güç Kaynağı | 100V - 127V/200V - 240V AC；60Hz/50Hz |
| Ağırlık | Fully loaded：< 61 kg |
| Boyutlar | 482.0mm × 801.0mm × 178.0 mm; Note：for cabinet with 1000mm depth or above |
| Authentication certificate | CE, FCC, CB，RoHS, WEEE |
| Çalışma Sıcaklığı | 5°C ~ 40°C / 41°F ~ 104°F |
Arayüz 3 satır
| HDD slot | 48 |
|---|---|
| Seri Port | 2 |
| Back-end Expansion Interface | 4-port 4*12Gbps Mini SAS HD |
Genel bakış
Uniview DE3148-V2 kullanım alanları ve özellikleri.
Uniview DE3148-V2, disk genişletme ünitesi modelidir.
Üretici tanımı: 48 Network Storage Disk Enclosure Unit
Öne Çıkan Özellikler
- High-Quality Hardware Design
- high performance
- 12Gbps SAS-3 technology provides superior performance experience
- High density
- The innovative enclosure with 981mm depth and4U height that holds up to 60disks, is space-saving and applicable to the standard rack-mounted scenarios.
- Redundant power supplies
- The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.
- Power protection
- Disk powered on sequentially during system startup, protection from impulse current.
- Multistage fan speed and energy saving
- Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.
Tüm özellikler
- High-Quality Hardware Design
- high performance
- 12Gbps SAS-3 technology provides superior performance experience
- High density
- The innovative enclosure with 981mm depth and4U height that holds up to 60disks, is space-saving and applicable to the standard rack-mounted scenarios.
- Redundant power supplies
- The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.
- Power protection
- Disk powered on sequentially during system startup, protection from impulse current.
- Multistage fan speed and energy saving
- Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DE3148-V2 hakkında kısa yanıtlar.
DE3148-V2 fiyatı ne kadar?
DE3148-V2 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
