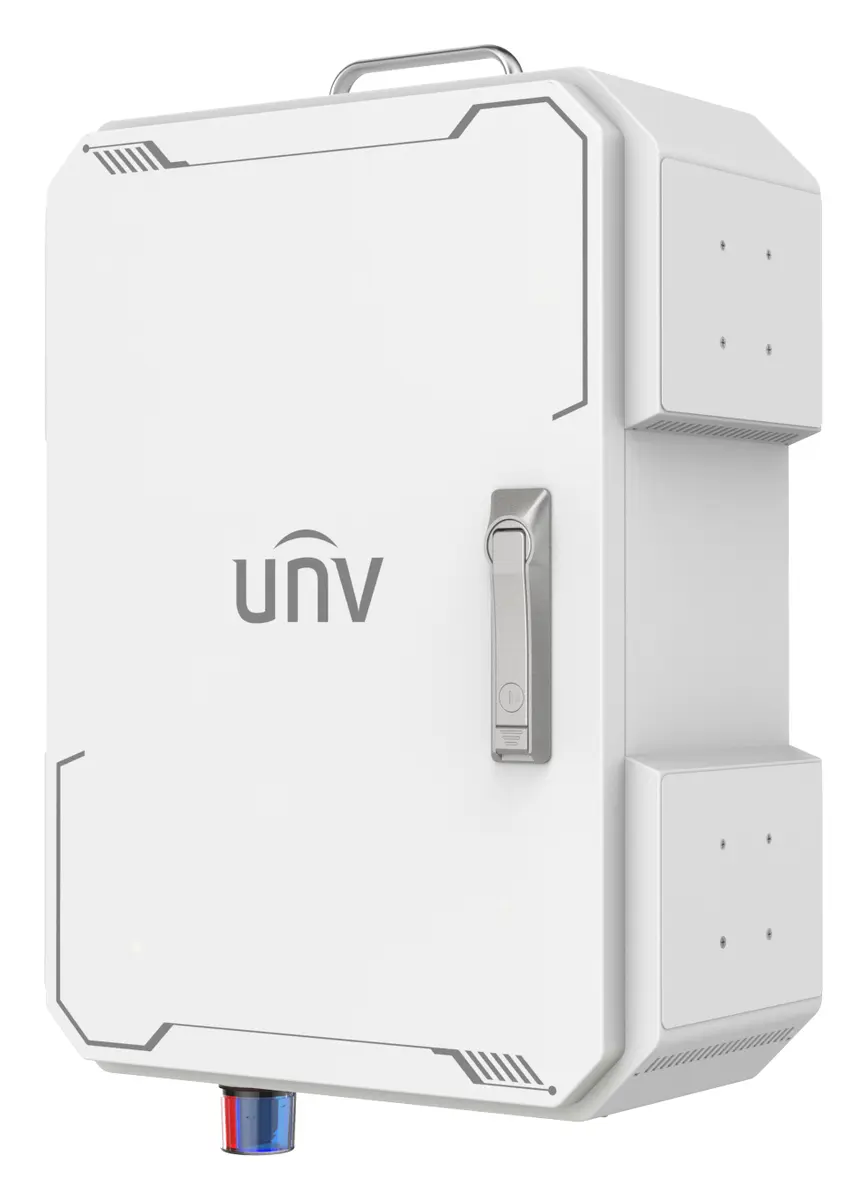

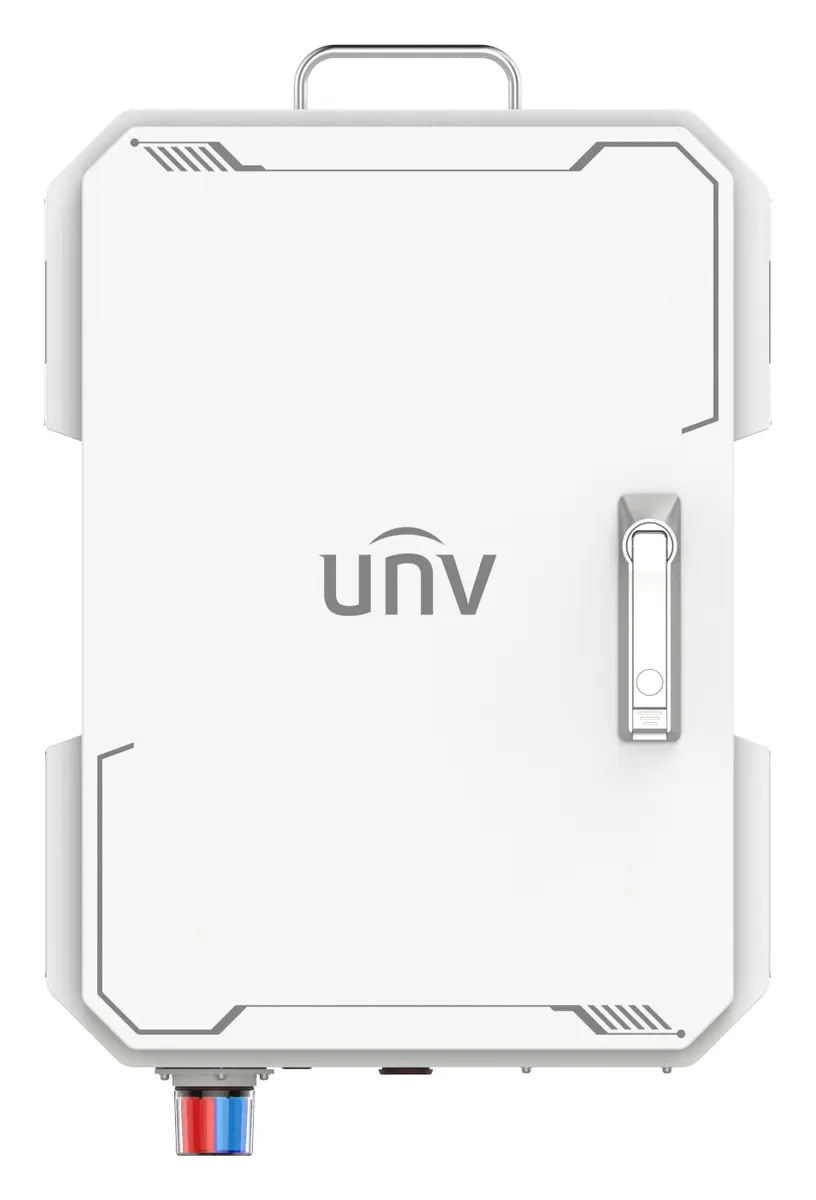

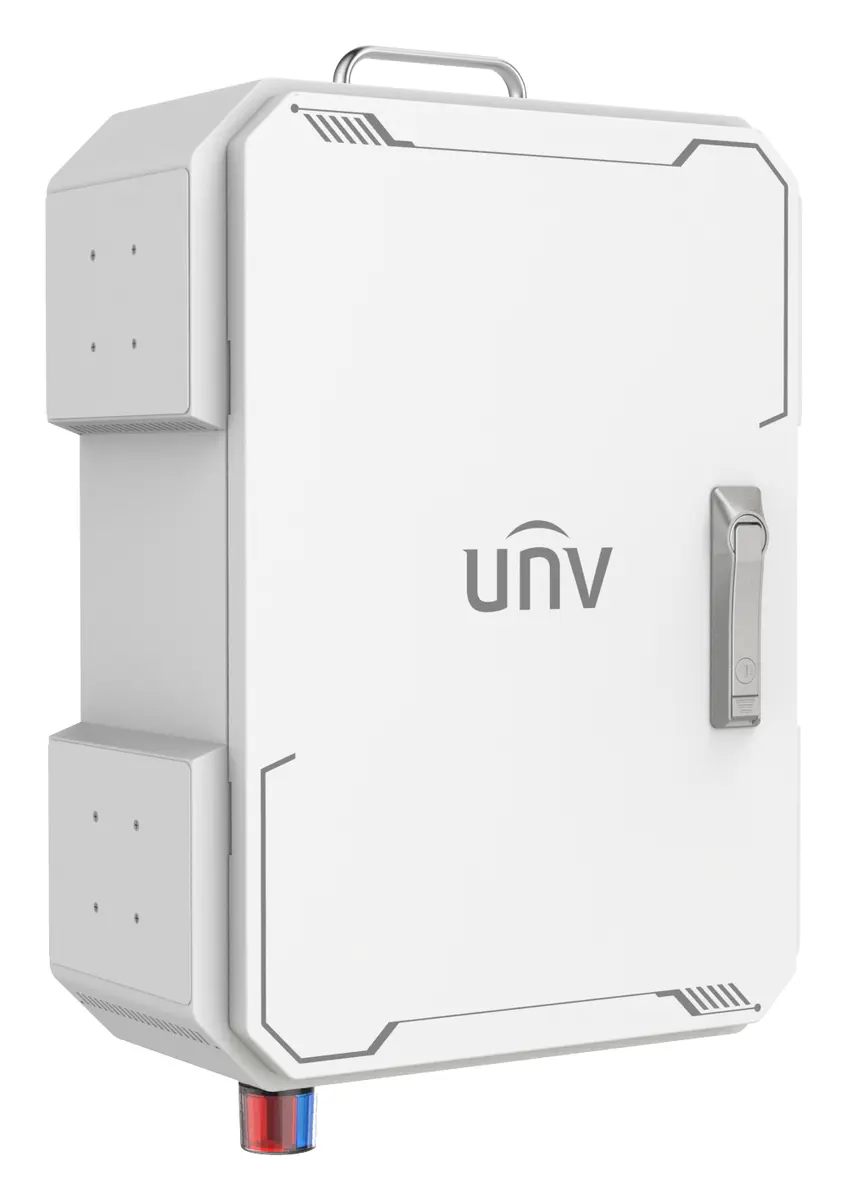

Uniview SMBOX01-EU Akıllı Enerji / Dağıtım Kutusu
Model
SMBOX01-EUUniview SMBOX01-EU akıllı enerji / dağıtım kutusu: Integrated design, combining the smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box, Users can remotely monitor the working status of the smar.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Integrated design, combining the smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box
- Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud
- Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them
- Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent
- Integrated design eliminates the need for manual wiring, simplifying installation for users
- Other available mounting space dimensions (Width 225 mm × Height 185 mm × Depth 63 mm)
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 9 satır
| Model | SMBOX01-EU |
|---|---|
| Aşırı Gerilim Koruması | 6 kV |
| Çalışma Sıcaklığı | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Çalışma Nemi | ≤ 90% RH (non condensing) |
| Weight (Without Camera) | ≤ 15 kg (33.07 lb) |
| Boyutlar | 650 (H) × 424 (W) × 230 (D) mm |
| Slot dimensions | The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 2 LAN ports. |
| Rating | IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements. |
| Sertifikalar | CE-EMC, FCC |
Power Input 2 satır
| Input Type | AC 100 V to 240 V |
|---|---|
| Input Port | 3-pin Connector, For the final installation, a UL 489-certified, 20-ampere circuit breaker must be be installed at the front end. |
Power Output 3 satır
| Socket | 1-ch 5A, EU socket |
|---|---|
| DC 12V | 1-ch 2.5A, DC5521, Used for powering the router |
| DC 48V | AC 100 ~ 240V to DC 48V, 2.3A, 2 Pin Phoenix terminal |
Dedicated Power Interface (Pre-Wired Internal Cabling) 4 satır
| Fan Power Interface | DC12V, 2.5A |
|---|---|
| Heater Power Interface | AC 100 ~ 240V to DC 12V, 8A |
| Router Power Interface | DC12V, 2.5A |
| Warning Light Power Interface | DC12V, 2.5A |
Fonksiyonlar 1 satır
| System Functional Description | Overvoltage and Overload Protection,Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Thermostatic Heater,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis |
|---|
Power Lightning Protector 3 satır
| Maximum discharge current | 40 kA |
|---|---|
| Rated discharge current | 20 kA |
| Response time | L-PE ≤ 25 ns, N-PE ≤ 25 ns |
Consumption 2 satır
| No-load power consumption | At ambient temperature of 25°C: 5.7 W (No HDD heating, No Heater, No Fan, No Alarm Light) |
|---|---|
| Full-load power consumption | At ambient temperature of 25°C: 125W (Heater, Fan, Alarm Light) |
Adaptable Mounting Bracket 4 satır
| Left side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
|---|---|
| Right side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
| Bottom | Up to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ) |
| Top | Support the installation of an IP speaker, no mounting bracket required. |
Genel bakış
Uniview SMBOX01-EU kullanım alanları ve özellikleri.
Uniview SMBOX01-EU, akıllı enerji / dağıtım kutusu modelidir.
Öne Çıkan Özellikler
- Integrated design, combining the smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box
- Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud
- Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them
- Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent
- Integrated design eliminates the need for manual wiring, simplifying installation for users
- Other available mounting space dimensions (Width 225 mm × Height 185 mm × Depth 63 mm)
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
SMBOX01-EU hakkında kısa yanıtlar.
SMBOX01-EU fiyatı ne kadar?
SMBOX01-EU için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
