Uniview

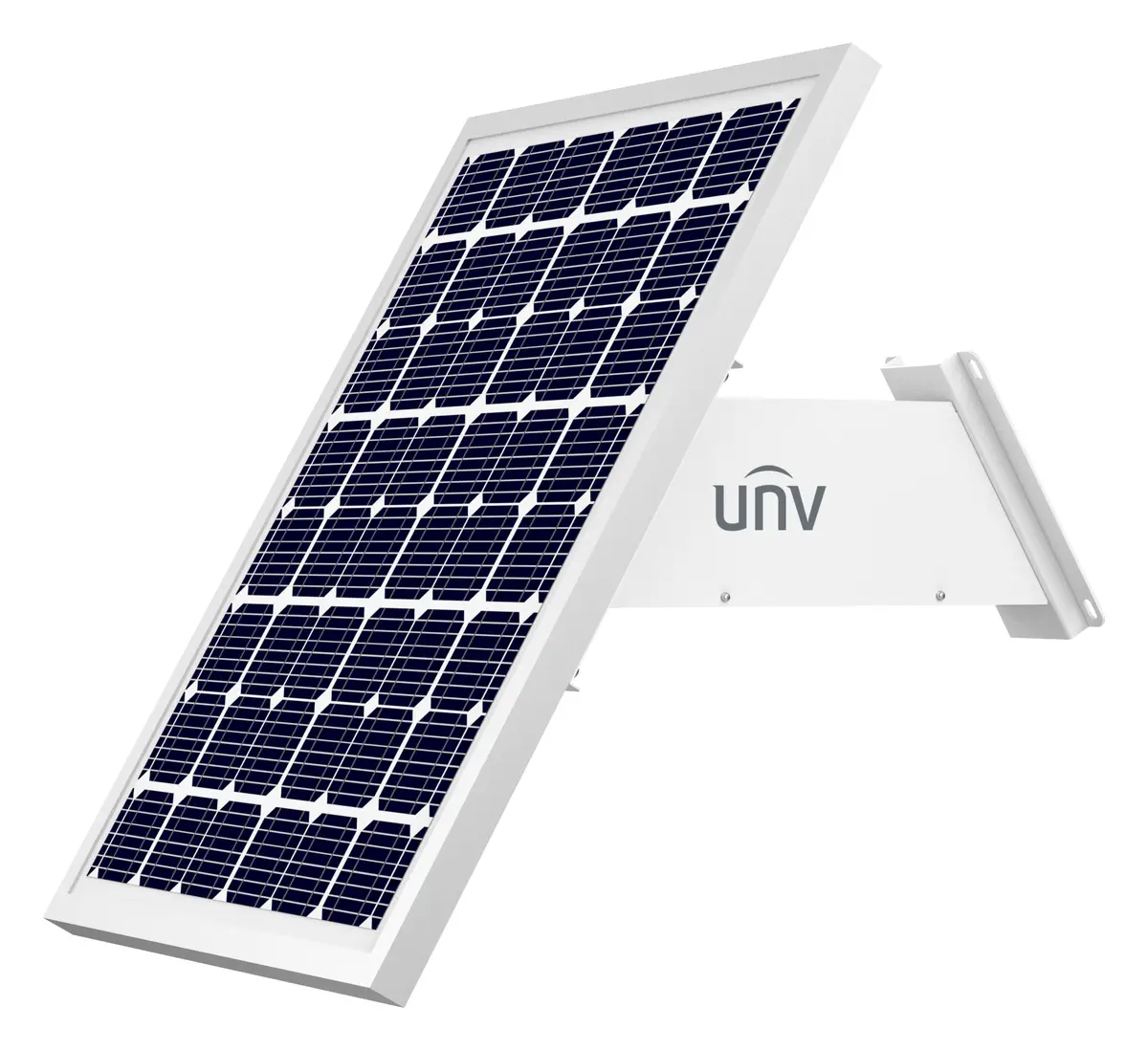

Uniview SLR-B320P60 Solar Güç Sistemi
Model
SLR-B320P60Uniview SLR-B320P60 solar güç sistemi: Modular design for easy battery assembly, hanging design for easy solar panel installation., Built in high safety, high reliability, and long life lithium battery cell is suitable for a wide range of application scenarios., Built in self developed high efficie.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Modular design for easy battery assembly, hanging design for easy solar panel installation.
- Built in high safety, high reliability, and long life lithium battery cell is suitable for a wide range of application scenarios.
- Built in self developed high efficiency solar controller realizes faster charging.
- Visual status indicator allows for easy understanding of the product’s operating status.
- Multiple protection functions such as high and low battery temperature protection, overcharge protection, undervoltage protection, etc.
- Metal casing, windproof and rainproof, capable of withstanding harsh outdoor environments.
- Built in heating module can be turned on in a low temperature environment, effectively protecting the battery life and ensuring the safety of charging.
- Back surface field and electrodes are made of high quality metal pastes, ensuring good conductivity.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Model | SLR-B320P60 |
|---|---|
| Ürün Tanımı (Üretici) | 320Wh/60W Solar Power System(Heating,Operation) |
| Suitable pole diameter | 67mm to 110 mm |
Lithium Battery 11 satır
| Batarya Kapasitesi | 100 Ah |
|---|---|
| Rated energy | 320 Wh |
| Limited charge voltage | 7 V |
| Çıkış Gerilimi | 9 V to 12.6 V |
| Maximum output current | 1.5 A |
| Input interface type | 4-pin quick connector (for battery switch) |
| Output interface type | DC 12 V circular connector |
| RS485 | Support |
| Boyutlar | 419.2 × 118 × 336.5 mm |
| Protection function | High/low temperature protection, overcharge protection, undervoltage protection |
| Sertifikalar | FCC |
Solar Panel 8 satır
| Peak power | 60 W |
|---|---|
| Çalışma Gerilimi | 4.5 V |
| Operating current | 13.33 A |
| Open circuit voltage | 5.4 V |
| Short circuit current | 14.66 A |
| Cell conversion efficiency | ≥ 22% |
| Output interface type | 4-pin quick connector (for battery switch) |
| Boyutlar | 765 × 395 × 25 mm |
Operation and Maintenance Module 11 satır
| Open circuit voltage | 12 V |
|---|---|
| Typical power consumption | 0.84 W |
| Maximum power consumption | 2 W |
| Input interface type | DC 12 V circular connector |
| RS485 | Support |
| Sıfırlama Butonu | Support |
| Gösterge | Blinking green: Normal operation; Steady red: Network error |
| Boyutlar | 90 × 90 × 38.3 mm |
| Koruma Sınıfı (IP) | IPX5 |
| Accessory | One-to-two power cable |
| Sertifikalar | FCC |
Specification 2 satır
| Çalışma Sıcaklığı | -20 ℃ to 55 ℃ (discharge)-20 ℃ to 45 ℃ (charge) |
|---|---|
| Ağırlık | 9.18KG (Lithium Battery : 4.61KG, Solar Panel : 4.42KG, Operation and Maintenance Module : 150g) |
Genel bakış
Uniview SLR-B320P60 kullanım alanları ve özellikleri.
Uniview SLR-B320P60, solar güç sistemi modelidir.
Üretici tanımı: 320Wh/60W Solar Power System(Heating,Operation)
Öne Çıkan Özellikler
- Modular design for easy battery assembly, hanging design for easy solar panel installation.
- Built in high safety, high reliability, and long life lithium battery cell is suitable for a wide range of application scenarios.
- Built in self developed high efficiency solar controller realizes faster charging.
- Visual status indicator allows for easy understanding of the product’s operating status.
- Multiple protection functions such as high and low battery temperature protection, overcharge protection, undervoltage protection, etc.
- Metal casing, windproof and rainproof, capable of withstanding harsh outdoor environments.
- Built in heating module can be turned on in a low temperature environment, effectively protecting the battery life and ensuring the safety of charging.
- Back surface field and electrodes are made of high quality metal pastes, ensuring good conductivity.
- High efficiency monocrystalline silicon cell with high photoelectronic conversion efficiency.
- High transmittance tempered glass and UV resistant EVA backsheet materials further improve the conversion efficiency of photovoltaic modules.
- Anodized aluminum alloy frame improves the corrosion resistance and ensures that the components can withstand harsh outdoor environments.
- Allows to overlay the battery percentage OSD on the camera’s live video.
- Allows to be used with 4G cameras for surveillance applications in scenarios without power and network.
Tüm özellikler
- Modular design for easy battery assembly, hanging design for easy solar panel installation.
- Built in high safety, high reliability, and long life lithium battery cell is suitable for a wide range of application scenarios.
- Built in self developed high efficiency solar controller realizes faster charging.
- Visual status indicator allows for easy understanding of the product’s operating status.
- Multiple protection functions such as high and low battery temperature protection, overcharge protection, undervoltage protection, etc.
- Metal casing, windproof and rainproof, capable of withstanding harsh outdoor environments.
- Built in heating module can be turned on in a low temperature environment, effectively protecting the battery life and ensuring the safety of charging.
- Back surface field and electrodes are made of high quality metal pastes, ensuring good conductivity.
- High efficiency monocrystalline silicon cell with high photoelectronic conversion efficiency.
- High transmittance tempered glass and UV resistant EVA backsheet materials further improve the conversion efficiency of photovoltaic modules.
- Anodized aluminum alloy frame improves the corrosion resistance and ensures that the components can withstand harsh outdoor environments.
- Allows to overlay the battery percentage OSD on the camera’s live video.
- Allows to be used with 4G cameras for surveillance applications in scenarios without power and network.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
SLR-B320P60 hakkında kısa yanıtlar.
SLR-B320P60 fiyatı ne kadar?
SLR-B320P60 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
