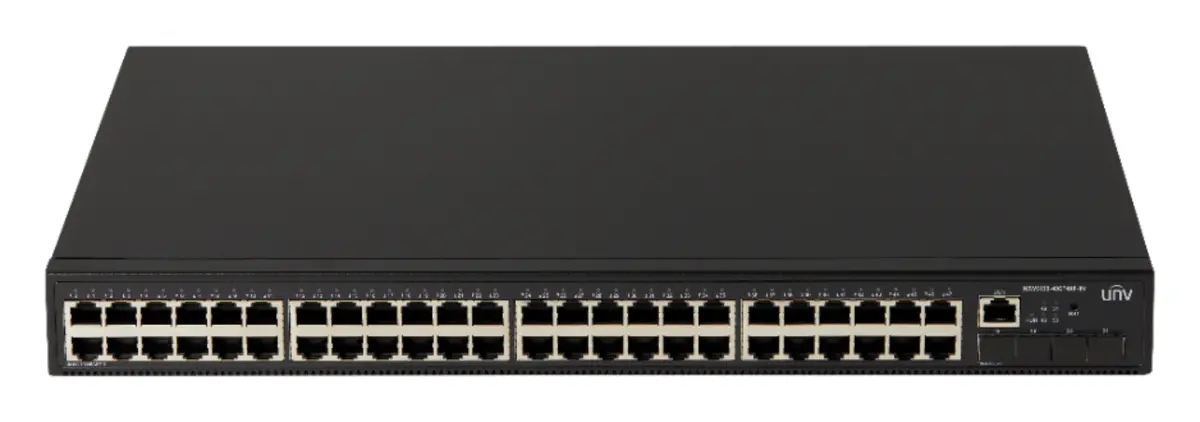

Uniview NSW5130-48GT4XP-IN Switch

ModelNSW5130-48GT4XP-IN

Uniview NSW5130-48GT4XP-IN, 45 portlu gigabit bir yönetilebilir switch'tir.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 45 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

NSW5130 Series is compatible with non-multiplexed SFP interfaces to enable high density Gigabit access and protect users’ investment.
Multiple services. NSW5130 Series supports multicast protocols such as IGMP, IGMP Snooping , FRRP (fast ring network recovery) protocol and FLRP (fast link recovery protocol).
Sound security control policy. NSW5130 Series provides multiple authentication modes based on MAC address, 802.1x, and Portal. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN,
Rich QoS policy. NSW5130 Series supports traffic identification on interfaces. It provides multiple stream classifications based on source MAC address, destination MAC address, source IP address, destination IP address,
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, NSW5130 Series provides CLI command lines and a Web management interface.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	NSW5130-48GT4XP-IN
Ürün Tanımı (Üretici)	48GE Ethernet Switch

Donanım Özellikleri 12 satır

Port Tipi	4810/100/1000Mbps RJ45 port,; 410Gbps SFP+ port
Anahtarlama Kapasitesi	176Gbps
İletim Performansı	130.9Mpps
MAC Adres Tablosu	24K
Maks. Güç	39W
Güç Kaynağı	AC100-240V
Soğutma Fanı	1
Gösterge	PWR, LINK/ACT
Boyutlar (G×D×Y)	440mm330mm44mm
Ağırlık	3.5kg
Çalışma Sıcaklığı	0℃~40℃
Çalışma Nemi	5% to 95%, non-condensing

Yazılım Özellikleri 10 satır

MAC Adres Tablosu	Support static, dynamic, black hole MAC entries; Support source MAC address filtering
Ethernet	Support port aggregation, port mirroring, RSPAN, port isolation, port traffic identification
VLAN	Support 4K 802.1Q VLAN; Support VLAN based on MAC/ IP subnet/authentication policy/interface VLAN; Support GVRP; Support QinQ
Maintenance	Support real-time temperature detection and alarm; Support SNMP, CLI, Web management,; Support local and remote output of system logs, operation logs, debugging information
Güvenlik	Support authentication modes based on MAC, 802.1x, and Portal; support local and support local and centralized authentication; Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection; Support port isolation, port security; Support broadcast storm suppression; Support SSH2.0
QoS	Support 8 priority queues per port; Support traffic classification based on 802.1p/DSCP/TOS; Support speed limit on ports and streams; Support SP, WRR, SP + WRR queue scheduling
Reliability	Support STP, RSTP, MSTP
DHCP	Support DHCP Client, DHCP Server, DHCP Snooping
Multicast	Support IGMP Snooping
IP Route	Support static routing, RIPV1/V2, OSPFv1/v2, Policy-Based Routing

Genel bakış

Uniview NSW5130-48GT4XP-IN kullanım alanları ve özellikleri.

Uniview NSW5130-48GT4XP-IN, switch modelidir. Öne çıkanlar: portlar 48*10/100/1000Mbps RJ45 port,; 4*10Gbps SFP+ port.

Üretici tanımı: 48GE Ethernet Switch

Öne Çıkan Özellikler

NSW5130 Series is compatible with non-multiplexed SFP interfaces to enable high density Gigabit access and protect users’ investment.
Multiple services. NSW5130 Series supports multicast protocols such as IGMP, IGMP Snooping , FRRP (fast ring network recovery) protocol and FLRP (fast link recovery protocol).
Sound security control policy. NSW5130 Series provides multiple authentication modes based on MAC address, 802.1x, and Portal. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN, and interface.
Rich QoS policy. NSW5130 Series supports traffic identification on interfaces. It provides multiple stream classifications based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN.
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, NSW5130 Series provides CLI command lines and a Web management interface.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NSW5130-48GT4XP-IN Managed Ethernet Switch.pdfPDF · NSW5130-48GT4XP-IN

Sık sorulanlar

NSW5130-48GT4XP-IN hakkında kısa yanıtlar.

NSW5130-48GT4XP-IN kaç portlu?

NSW5130-48GT4XP-IN 45 porta sahiptir.

NSW5130-48GT4XP-IN fiyatı ne kadar?

NSW5130-48GT4XP-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
