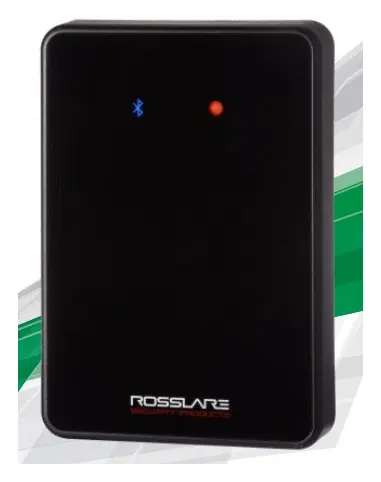

Rosslare AY-H6255BT CSN SMART Smart Card Reader with NFC-ID and BLE-ID Kart Okuyucu

The innovative AY-H6255BT reader from Rosslare’s CSN SMART™ series features support for three types of credentials – Rosslare BLE-ID™, Rosslare NFC-ID™, and 13.56 MHz RFID contactless UID. Featuring IP-65 (all-weather potted) construction, it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.

The AY-H6255BT advertises a BLE beacon with 2 services.

The BLE-ID to Wiegand service accepts Rosslare BLE-ID credential apps, and the BLE-Admin service accepts configuration connection from Rosslare BLE-Admin™ apps. The built-in 13.56 MHz reader can read the CSN of the most popular 13.56 MHz smart cards in the security industry, as well as Rosslare NFC-ID using Rosslare’s APP- A415 Rosslare NFC-ID credential app for Android. For higher security, dual factor authentication is possible by combining any BLE-ID and PIN Code, Card+ PIN. The LOCAL ONLY apps for Android and iOS smartphones are published on Google Play or App Store and recommended for general purpose access control applications. The AY-H6255BT produces selectable bit- length Wiegand format from 26-Bit to 64-Bit on a standard Wiegand wired connection and supports the Open Standard Device Protocol (OSDP) connection. Four individual control lines provide green LED control, red LED control, buzzer control, and optical tamper signals.

Main Features

• NFC-ID is supported with Rosslare’s APP-A415 NFC-ID Credential App for Android in Host Card Emulation (HCE) mode*
• BLE-ID is supported with Rosslare BLE-ID credential apps for iOS and Android OS*
• Eight keypad transmission formats are available
• Mounting options for US gang-box
• Sleek and modern design, superior mechanics, 10-wire 5-m cable.
• Addressable OSDP connectivity, up to 32 addresses using DIP switches
• Compatible with CS-HCT Hardware Configuration Tool for Windows application
• Two tri-colored LED indicators / 1 audible buzzer
• Optical wall tamper detection
• Blue backlit keypad with power saving options (On, Off, Dimming)
• IP68 rated and made of tough polycarbonate UV-resistant plastic

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• NFC-ID is supported with Rosslare’s APP-A415 NFC-ID Credential App for Android in Host Card Emulation (HCE) mode*
• BLE-ID is supported with Rosslare BLE-ID credential apps for iOS and Android OS*
• Eight keypad transmission formats are available
• Mounting options for US gang-box
• Sleek and modern design, superior mechanics, 10-wire 5-m cable.
• Addressable OSDP connectivity, up to 32 addresses using DIP switches
• Compatible with CS-HCT Hardware Configuration Tool for Windows application
• Two tri-colored LED indicators / 1 audible buzzer
• Optical wall tamper detection
• Blue backlit keypad with power saving options (On, Off, Dimming)
• IP68 rated and made of tough polycarbonate UV-resistant plastic
