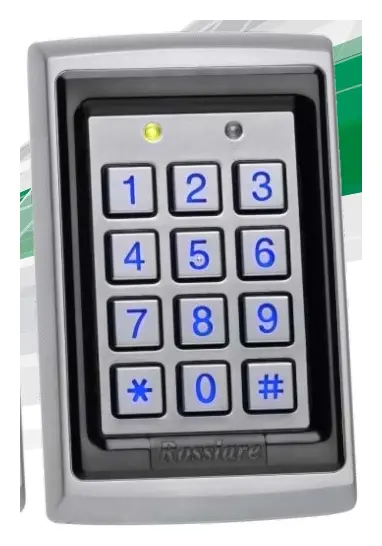

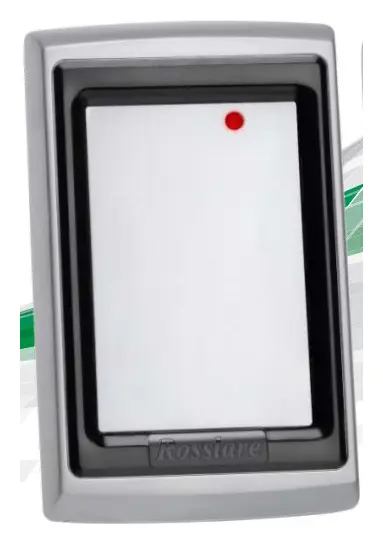

Rosslare AY-Q6360 Anti-Vandal MIFARE Classic EV1 Sector Readers Kart Okuyucu

The Sector Reader Family is a fully-featured smartcard contactless reader, ideal for highly secured facilities as well as other locations that wish to utilize smartcard based applications such as electronic wallets combined with access control or intrusion, Time & Attendance applications, and more. The AY-Q6260 and AY-Q6360 introduce a patented, industry first – 13.56 MHz technology encased in a metal body, thus combining smartcard technology with an anti-vandal metal shield, suitable for outdoor use in all weather conditions.

Programming of the reader is done by presenting a programmable Configuration Card, created using Rosslare’s Smart Card programmer (CP-R25).

The Reader scans information stored in a specific protected sector within a MIFARE Classic ® EV1 smartcard, sends the data to a connected access control system, and allows the integrator to set secret keys for different sectors within the card.

This establishes a unique network with proprietary cards, where no card can possibly have the same ID on the same location and with the same reader Key.

The readers meet IP65 and are suitable for both indoor and outdoor use. The 10-wire interface allows easy connection of the unit to a control panel and includes LED control, buzzer control and more.

These products have the capability of being customized for most major projects.

Main Features

• Advanced, secure, multi-application functionality for intelligent installations
• Configurable multi output format, supports Wiegand 26-Bit format and many others AY-Q6260 AY-Q6360 smartcard contactless reader, ideal other locations that wish to utilize electronic wallets combined with access applications, and more. patented, industry first – 13.56 MHz combining smartcard technology for outdoor use in all weather
• Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
• Multiple keypad transmission formats (AY-Q6360)
• Compatible with CP-R25 USB Desktop Card Programmer
• PC software for Master and User Card configuration (AS-B01)
• High strength design, epoxy potted, fully sealed within an all-metallic housing
• Reads MIFARE Classic EV1 ISO14443 Type A, Standard cards
• Dedicated LED and buzzer control inputs
• Optical tamper sensor for case and wall tamper detection
• ® Fully compatible with MIFARE Classic EV1 1K and 4K
• Reads card’s serial number with MIFARE Classic EV1 Ultralight and MIFARE ® DESFire ®
• Suitable for outdoor use and weather-resistant

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Advanced, secure, multi-application functionality for intelligent installations
• Configurable multi output format, supports Wiegand 26-Bit format and many others AY-Q6260 AY-Q6360 smartcard contactless reader, ideal other locations that wish to utilize electronic wallets combined with access applicat
• Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
• Multiple keypad transmission formats (AY-Q6360)
• Compatible with CP-R25 USB Desktop Card Programmer
• PC software for Master and User Card configuration (AS-B01)
• High strength design, epoxy potted, fully sealed within an all-metallic housing
• Reads MIFARE Classic EV1 ISO14443 Type A, Standard cards
• Dedicated LED and buzzer control inputs
• Optical tamper sensor for case and wall tamper detection
• ® Fully compatible with MIFARE Classic EV1 1K and 4K
• Reads card’s serial number with MIFARE Classic EV1 Ultralight and MIFARE ® DESFire ®
• Suitable for outdoor use and weather-resistant
