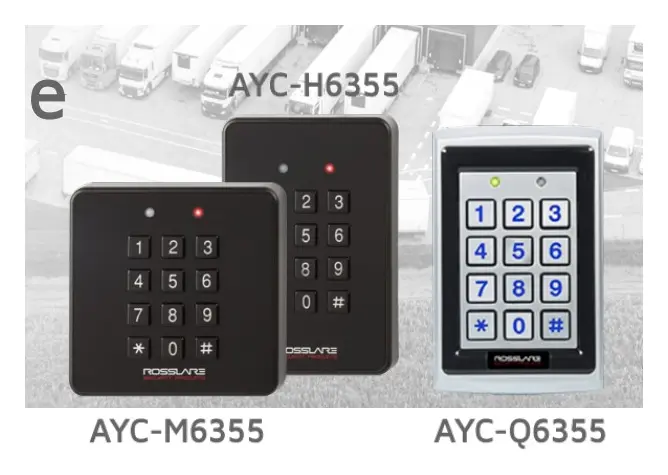

Rosslare AYC-M6355 CSN SELECT Convertible Smart Card Readers Kart Okuyucu

The CSN SELECT™ AYC-x6355 is a series of multi-credential technology contactless smart card (13.56 MHz) readers with backlit keypad for use in access control system solutions and includes Rosslare’s convertible technology. The readers have the flexibility to read the CSN from many smart card RFID standards, including MIFARE Classic Sector read, perfect for transitioning from one technology to another. They support access by an NFC compatible Android smartphone app. 1 The readers have a sleek, modern design and can be used comfortably in any indoor or outdoor installation environment.

The AYC-x6355 reader series are built to read the CSN of the most popular smart cards in the security industry, including MIFARE sector read, as well as NFC compatible Android smartphones, and output the CSN in Wiegand or OSDP protocols. Dual authentication is available when both RFID smart cards and keypad PIN entries are combined.

Four individual control lines provide green LED control, red LED control, and buzzer control inputs, as well as an output for the optical wall tamper detector.

AYC-x6355 readers support SIA Open Supervised Device Protocol (OSDP V2) including SCP mode (Secured Channel Protocol) to let the reader connect to any controller that supports OSDP.

With convertible technology, the AYC-x6355 can automatically become a 500-user secure standalone Rosslare Mobile Credentials SDK for each NFC supported Android smartphone.

www.rosslaresecurity.com 1 controller when attached to a MD-25TB secure relay module or PS-C25TB Power Management Enclosure with built in secure relay I/O module.

Main Features

• The reader settings can be configured with the CS-CCT Configuration Tool or locally with keyboard programming
• Eight keypad transmission formats are available can be locally selected via keypad programming
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security with extended range, up to 32 addresses
• MIFARE Classic EV1 Sector Read - Compatible with ISO 14443A 1K and 4K credentials
• Features Rosslare’s convertible technology
• 1 Supports NFC technology using Rosslare BLE-ID mobile app or SDK.
• Sleek and modern design
• Two tri-colored LED operation
• Optical wall tamper detection
• Blue backlit keypad with power saving options (On, Off, Dimming)
• Mounting options include US gangbox and UK/Asia gangbox
• Comes with mounting template and installation for easy installation
• Water and dust resistant
• IP68 for models without DIP switches
• IP65 for models with DIP switches
• IK08 vandal resistance (without the bezel)

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• The reader settings can be configured with the CS-CCT Configuration Tool or locally with keyboard programming
• Eight keypad transmission formats are available can be locally selected via keypad programming
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security with extended range, up to 32 addresses
• MIFARE Classic EV1 Sector Read - Compatible with ISO 14443A 1K and 4K credentials
• Features Rosslare’s convertible technology
• 1 Supports NFC technology using Rosslare BLE-ID mobile app or SDK.
• Sleek and modern design
• Two tri-colored LED operation
• Optical wall tamper detection
• Blue backlit keypad with power saving options (On, Off, Dimming)
• Mounting options include US gangbox and UK/Asia gangbox
• Comes with mounting template and installation for easy installation
• Water and dust resistant
• IP68 for models without DIP switches
• IP65 for models with DIP switches
