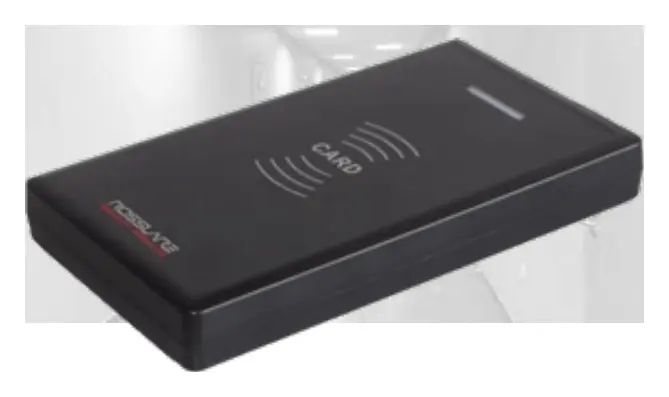

Rosslare DR-U955BT Multi-technology Desktop Reader Masaüstü Kart Okuyucu

The DR-U955BT is part of Rosslare’s UHF SMART™ series of products. It is an innovative USB enrollment station that features three-in-one access control credential technology, making it easier than ever to deploy the latest in access control systems. The DR-U955BT reads a wide range of 13.56 MHz multi- format smart cards, UHF EPC-Gen2-6C, and Rosslare BLE-ID™ credentials (Facility code, Credential ID), and transmits the credential to the connected access control software, such as Rosslare’s AxTraxNG™. Its configurable software allows you to choose a unique output for each system.

This credential enrollment device features a very low power radio, which can read UHF tags (up to 5 cm), BLE-ID (up to 12 m) and 13.56 MHz smart cards (up to 5 cm) for enrolling the physical credentials to the networked physical access control system (PACS).

The DR-U955BT has a slim design with an RGB LED and indication buzzer. It features a fixed one-meter cable with a USB-type A serial connector. It is quick and easy to install and runs without any additional power source.

It is designed to sit safely on any desktop. The DR-U955BT is sturdily built with surface-gripping rubber feet. With its flat form factor, it is suitable for integration into any front panel (turnstiles and third- party devices).

When used with AxTraxNG™ v27.6.1.x and above, this device is plug-n-play and enables the end user to deploy multiple enrollment stations within the organization. The DR-U955BT comes with two utility software programs for Windows - Rosslare B-Converter www.rosslaresecurity.com 1 top (to manually convert Rosslare BLE-ID to any supported Wiegand format) and the HCT Hardware Configuration Tool.

Main Features

• Enrolls 13.56 MHz smart card Unique ID (UID) and can read the UID of a range of credentials
• Enrolls UHF-ID – Reads a wide range of passive transponders with ISO 18092 (NFCIP-1) and ISO/IEC 18000-6C credential support
• Enrolls Bluetooth – Rosslare BLE-ID credential directly into AxTraxNG Server or directly into third- party software systems
• Supports USB 2.0 Standard (compatible with USB 1.1), meets the EIA Standard
• One-meter cable and USB Type A Connector – powered by USB host PC
• SW supports the following operating systems: Windows 10 (32-bit and 64-bit), Windows 7 (32-bit and 64-bit), Windows Vista and Vista 64-bit, Windows XP and XP 64-bit, Server 2003, XP and Server 2008
• Enables access control with multi-credential authentication factors

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.
