Rosslare

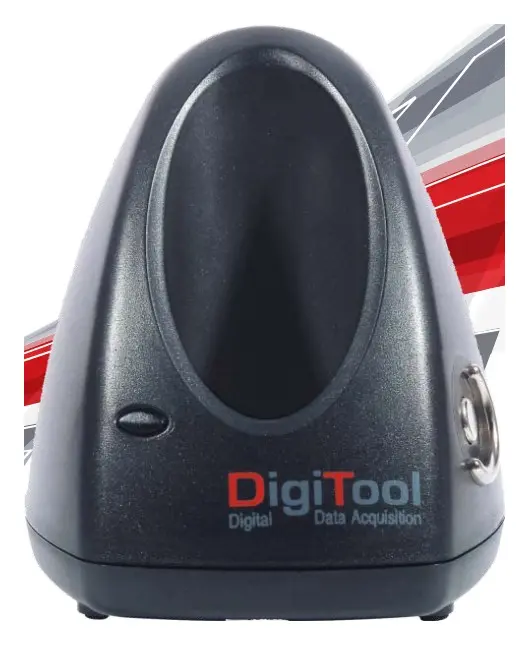

Rosslare GC-02 Data Acquisition Reader Base Bekçi Tur Okuyucusu
Rosslare GC-02 Data Acquisition Reader Base Bekçi Tur Okuyucusu — görsel 2
1 / 2
Kartlı & Parmak İzli Geçiş Guard Patrol

Rosslare GC-02 Data Acquisition Reader Base Bekçi Tur Okuyucusu

ModelGC-02

Rosslare GC-02 bekçi tur okuyucusu: Spring-loaded contacts for easy docking of the GC-01, Built-in AC-DC adapter and fast charger for the GC-01’s 1800 mAh lithium-ion battery, AC-DC wall transformer included, Built-in ID chip reader for enrollment and recording of locations, events, and user tag.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Spring-loaded contacts for easy docking of the GC-01
  • Built-in AC-DC adapter and fast charger for the GC-01’s 1800 mAh lithium-ion battery
  • AC-DC wall transformer included
  • Built-in ID chip reader for enrollment and recording of locations, events, and user tag data
  • Flexibility with the option to select models with Dallas iButton ID chip (GA-01/AT-32B)
  • Rotating RS-232 9-pin serial port with a 3 mm Barrel socket
  • Full duplex RS-232 communication at 9600 baud
  • Small desktop footprint with rubber feet

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 2 satır
Çalışma Gerilimi Aralığı9-12 VDC Standby: 0.1 mA
Input Current, Max.Maximum: 500 mA
Çalışma Özellikleri 6 satır
Docking indicatorBeeps once when GC-01 reader is inserted or removed
Battery charging timeFully charges the GC-01 battery in 3 hours Orange: GC-01 reader is not docked
Battery LED indicatorsRed: battery is being charged Green: GC-01 battery is full Reads location, event, and user tags
ID chip readerAutomatically “learns” location ID number when PC software is in learn mode
RS-232 Connector to PC9-pin serial port, 9600 baud rate
Product modelsDallas iButton : GC-02 Generic numeric ID: GC-02F
Çevresel Özellikler 4 satır
Çalışma Sıcaklığı-20°C to 60°C (-4°F to 140°F)
Çalışma Nemi0 to 95% (non-condensing)
Kullanım OrtamıIndoor use ABS plastic with nickel-plated contacts and water-resistant
Construction Materialsgrommets Water, dust, and dirt-resistant design
Fiziksel Özellikler 3 satır
Boyutlar (Y x G x D)100 x 82 x 80 mm (3.94 x 3.23 x 3.15 in.)
Ağırlık180 g (0.40 lbs) (including ballast weight for enhanced stability)
Guard Patrol KitsGCK-01 – DigiTool Starter Kit GCK-02 – DigiTool Basic Remote Kit GCK-03 – DigiTool Guard Patrol Upgrade Kit GCK-04 – DigiTool Guard Patrol Basic Kit
Genel 2 satır
Sistem BileşenleriThis product integrates with other DigiTool family of Guard Patrol products: GC-01 Data Acquisition Reader GC-03 Data Acquisition Reader Charger GC-50 Communicator Station GA-01 Location tag, available in several colors GA-02 Event Wallet GA-12 Digital Event Wallet AT-32B Guard personal tag
Garanti2-Year Limited Product Warranty

Genel bakış

Rosslare GC-02 kullanım alanları ve özellikleri.

Rosslare’s DigiTool ® GC-02 Base is designed with a focus on high quality and reliability as a top priority.

The GC-02 Base docking-station is made of rugged ABS plastic. It contains a nickel-plated steel iButton TM ID chip Reader, a built-in rapid charger with a unique swiveling DC power connection, and a rotating RS- 232 serial connector for wall or desktop mount.

The GC-02 Base facilitates data transfer from the GC-01 Reader to a single PC for report generation and data analysis using DigiTool ® GS-01 Reports Light or GS-02 DCC DigiTool ® Call Center remote monitoring software.

The flexibility of the GC-02 models to read Dallas iButton TM ID chips allows you to tailor your system even more to suite your specific needs.

Main Features

  • Spring-loaded contacts for easy docking of the GC-01
  • Built-in AC-DC adapter and fast charger for the GC-01’s 1800 mAh lithium-ion battery
  • AC-DC wall transformer included
  • Built-in ID chip reader for enrollment and recording of locations, events, and user tag data
  • Flexibility with the option to select models with Dallas iButton ID chip (GA-01/AT-32B)
  • Rotating RS-232 9-pin serial port with a 3 mm Barrel socket
  • Full duplex RS-232 communication at 9600 baud
  • Small desktop footprint with rubber feet
  • Wall-mount option helps save desktop space
  • Integrates with the GCK-01 Kit, the GC-50 PSTN remote station communicator, and the Guard Patrol product family
  • Interface compatibility with the GC-50 modem communicator to facilitate upgrading

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

  • Spring-loaded contacts for easy docking of the GC-01
  • Built-in AC-DC adapter and fast charger for the GC-01’s 1800 mAh lithium-ion battery
  • AC-DC wall transformer included
  • Built-in ID chip reader for enrollment and recording of locations, events, and user tag data
  • Flexibility with the option to select models with Dallas iButton ID chip (GA-01/AT-32B)
  • Rotating RS-232 9-pin serial port with a 3 mm Barrel socket
  • Full duplex RS-232 communication at 9600 baud
  • Small desktop footprint with rubber feet
  • Wall-mount option helps save desktop space
  • Integrates with the GCK-01 Kit, the GC-50 PSTN remote station communicator, and the Guard Patrol product family
  • Interface compatibility with the GC-50 modem communicator to facilitate upgrading

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · GC-02
