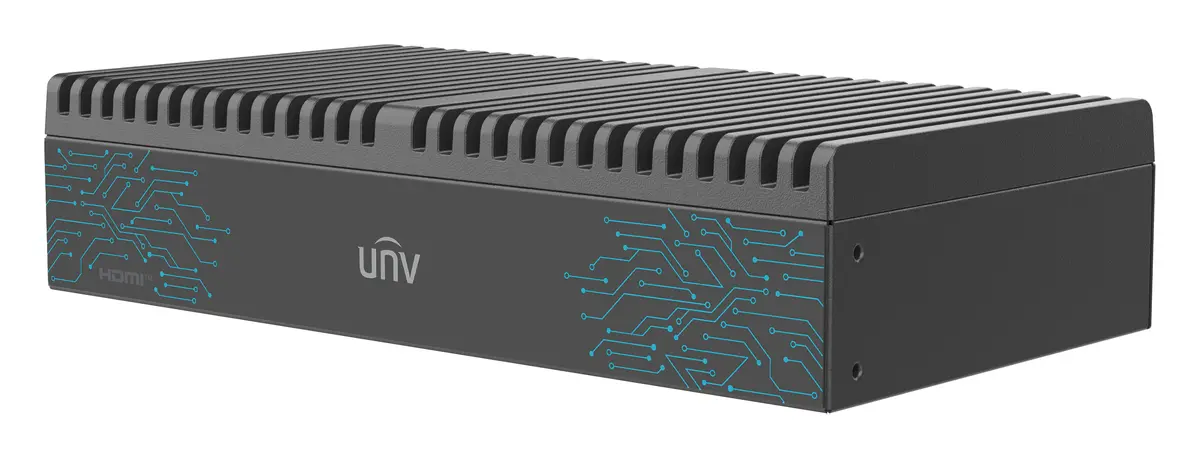

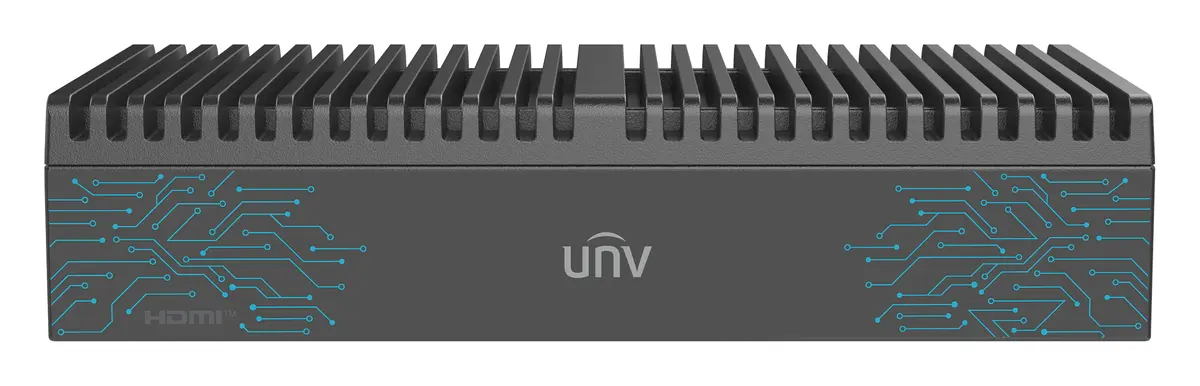

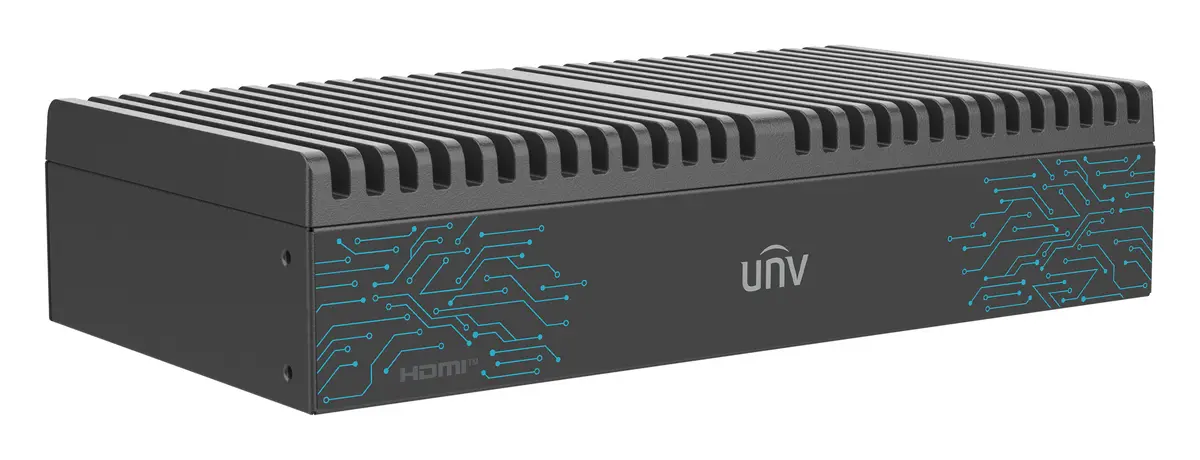

Uniview ECS-508S-SF-HA Yapay Zeka Analiz Kutusu
Model
ECS-508S-SF-HAUniview ECS-508S-SF-HA yapay zeka analiz kutusu: Supports real-time analysis of 4/8/16-ch 2MP video streams., Built-in over 100 behavior algorithms., Supports local algorithm warehouse mode, enabling selection of any 20 for deployment., Supports face-behavior linkage (identifying the person after detecting a.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Supports real-time analysis of 4/8/16-ch 2MP video streams.
- Built-in over 100 behavior algorithms.
- Supports local algorithm warehouse mode, enabling selection of any 20 for deployment.
- Supports face-behavior linkage (identifying the person after detecting an abnormal behavior) .
- Supports generating alarm videos/images and reporting alarm information to third-party platforms via API.
- Supports standard H.264 and H.265 video streams.
- Supports integrating 4/8/16-ch third-party cameras via RTSP or Onvif.
- Dual Gigabit Ethernet ports enable dual-network IP configuration, adapting to diverse networking environments.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 2 satır
| Model | ECS-508S-SF-HA |
|---|---|
| Ürün Tanımı (Üretici) | 8 Channels 1 Hard Disk Intelligent Edge small station |
VCA 1 satır
| Smart | 1, General functions: face detection, Intrusion Detection (support pedestrians, motor vehicles, and nonmotorized vehicles), Overcrowding Detection, Area People Counting, Tripwire People Counting, Preset Marker Detection, Enter Area, Leave Area, Cross Line Detection; 2, Environmental safety: Fire Detection, Fume Detection, Evacuation Route Obstruction, Object Removed, Rat Detection, Dog Detection, Uncovered Soil Detection, Improper Stacking Of Materials, Trash Bin Open Detection, Trash Bin Overfl |
|---|
Özellikler 9 satır
| Yüz Algılama | 8-channel; (Face detection and behavior analysis cannot be enabled simultaneously on the same channel) |
|---|---|
| analysis | 8-channel |
| Face library capacity | 128 face libraries, total 20,000 face images |
| Work clothes library capacity | 8 work clothes libraries, a single storage capacity of 50 images |
| Algorithm self-learning | Support self optimization of some algorithms : Intrusion Detection Cross Line Detection Absence Detection Climbing Detection Long Stay Detection |
| İşletim Sistemi | Linux |
| Operation entry | Web, HDMI, Recommend Web |
| Supported languages | English, Japanese |
| Video input | 8-channel; 2MP-8MP H.265 or H.264 cameras |
Depolama 2 satır
| DDR RAM | 8GB DDR4 |
|---|---|
| Hard disk | 2.5-inch, 128GB SSD included |
Alarm capacity 2 satır
| Alarm image | Max 20,000 alarm images, |
|---|---|
| Alarm video | Max 20,000 alarm video clips |
Electrical property 7 satır
| Çalışma Sıcaklığı | -40~70℃ |
|---|---|
| Çalışma Nemi | 5% to 90% (non-condensing) |
| Depolama Sıcaklığı | -40~70℃ |
| Depolama Nemi | 5% to 95% (non-condensing) |
| Güç Tüketimi | ≤20W |
| Ağırlık | ≤1.5KG (with SSD) |
| Boyutlar | 56.3mm(H)×251.3mm(D)×137.7mm(W) |
Harici Arayüz 6 satır
| Ağ Arayüzü | 2 x 10M/100M/1000M adaptive Ethernet interfaces (RJ45) |
|---|---|
| USB Arayüzü | 2 x USB2.0, 1 x USB3.0 |
| Alarm input | 4-ch |
| Alarm output | 4-ch |
| Serial interface | 1 x RS-485 (phoenix connector) |
| Güç Kaynağı | 12 V/2 A |
Data Dock 3 satır
| Websocket mode | √ |
|---|---|
| HTTP/HTTPS mode | √ |
| HTTP/HTTPS live | √ |
Uyumluluk 1 satır
| NDAA Uyumlu | Support |
|---|
Genel bakış
Uniview ECS-508S-SF-HA kullanım alanları ve özellikleri.
Uniview ECS-508S-SF-HA, yapay zeka analiz kutusu modelidir.
Üretici tanımı: 8 Channels 1 Hard Disk Intelligent Edge small station
Öne Çıkan Özellikler
- Supports real-time analysis of 4/8/16-ch 2MP video streams.
- Built-in over 100 behavior algorithms.
- Supports local algorithm warehouse mode, enabling selection of any 20 for deployment.
- Supports face-behavior linkage (identifying the person after detecting an abnormal behavior) .
- Supports generating alarm videos/images and reporting alarm information to third-party platforms via API.
- Supports standard H.264 and H.265 video streams.
- Supports integrating 4/8/16-ch third-party cameras via RTSP or Onvif.
- Dual Gigabit Ethernet ports enable dual-network IP configuration, adapting to diverse networking environments.
- Supports up to 128 face libraries with 100, 000 face imagesin total.
- Lightweight, fanless structure, flexible deployment, suitable for harsh conditions (including dusty, oily, extremely hot or extremely cold environments) .
Tüm özellikler
- Supports real-time analysis of 4/8/16-ch 2MP video streams.
- Built-in over 100 behavior algorithms.
- Supports local algorithm warehouse mode, enabling selection of any 20 for deployment.
- Supports face-behavior linkage (identifying the person after detecting an abnormal behavior) .
- Supports generating alarm videos/images and reporting alarm information to third-party platforms via API.
- Supports standard H.264 and H.265 video streams.
- Supports integrating 4/8/16-ch third-party cameras via RTSP or Onvif.
- Dual Gigabit Ethernet ports enable dual-network IP configuration, adapting to diverse networking environments.
- Supports up to 128 face libraries with 100, 000 face imagesin total.
- Lightweight, fanless structure, flexible deployment, suitable for harsh conditions (including dusty, oily, extremely hot or extremely cold environments) .
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
ECS-508S-SF-HA hakkında kısa yanıtlar.
ECS-508S-SF-HA fiyatı ne kadar?
ECS-508S-SF-HA için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
