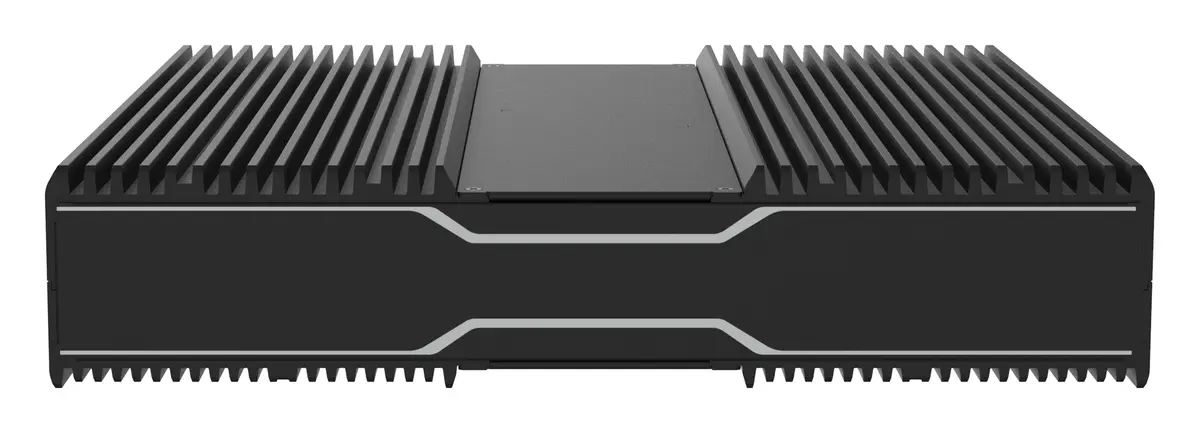

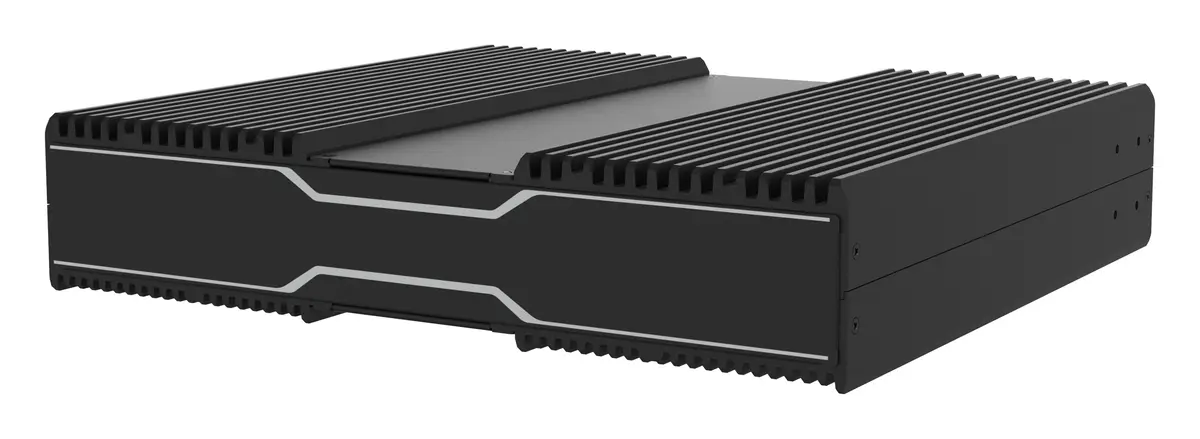

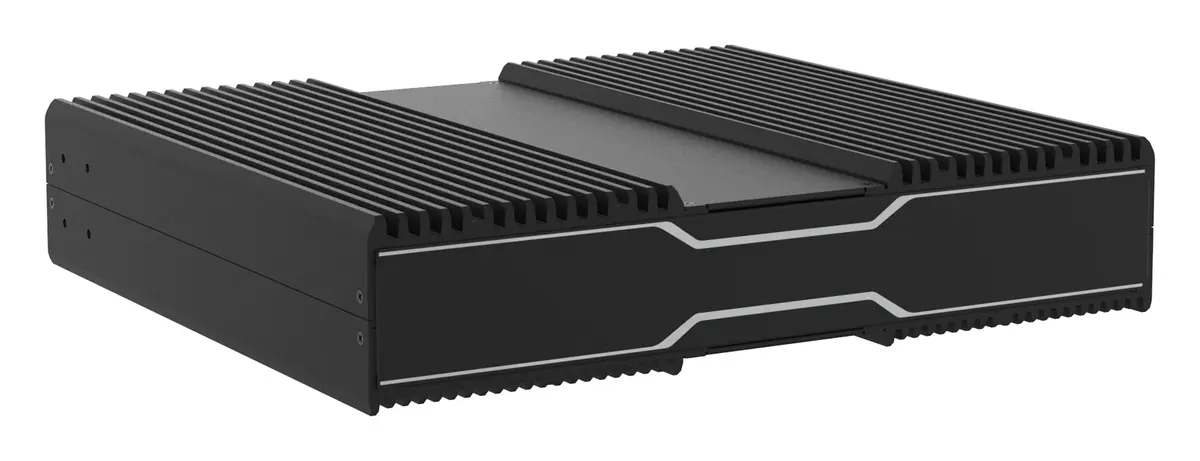

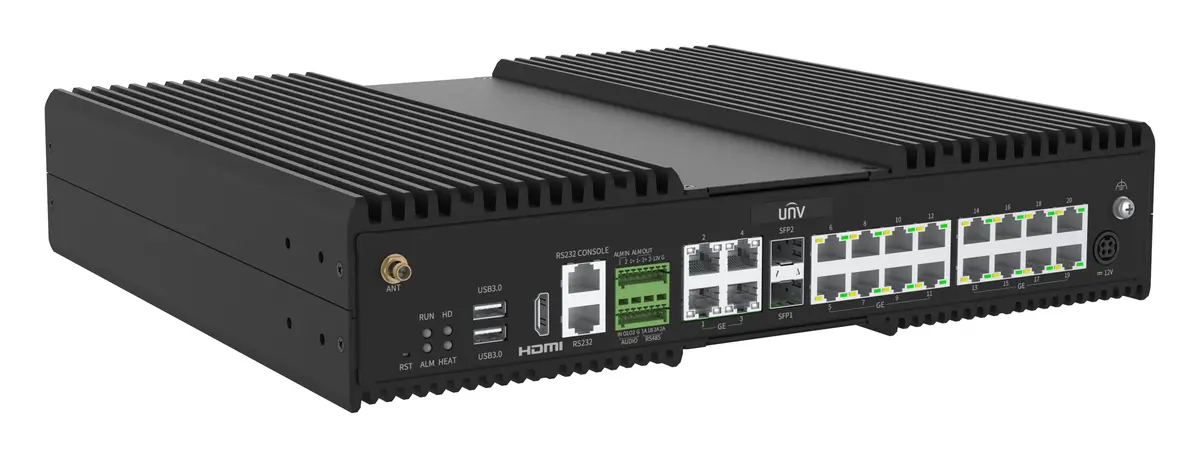

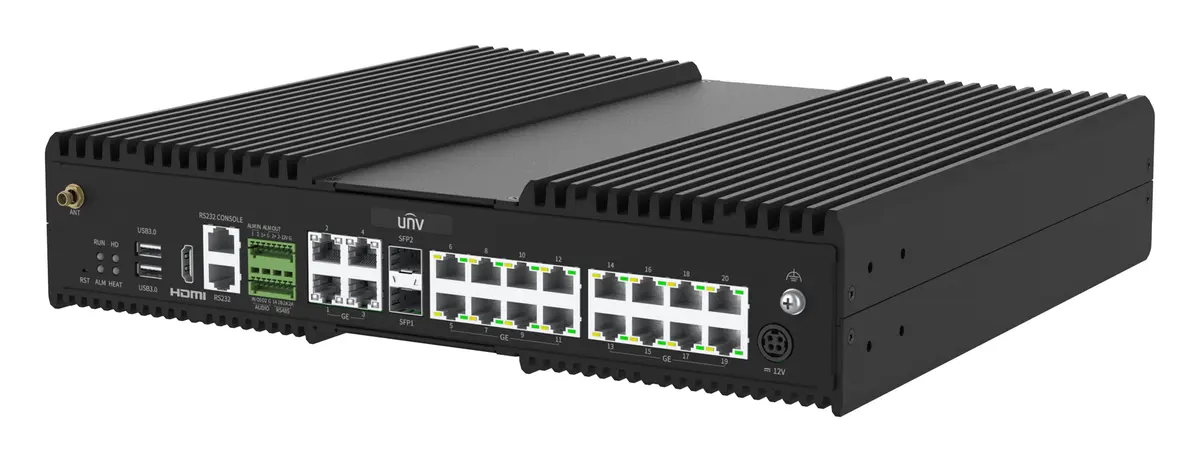

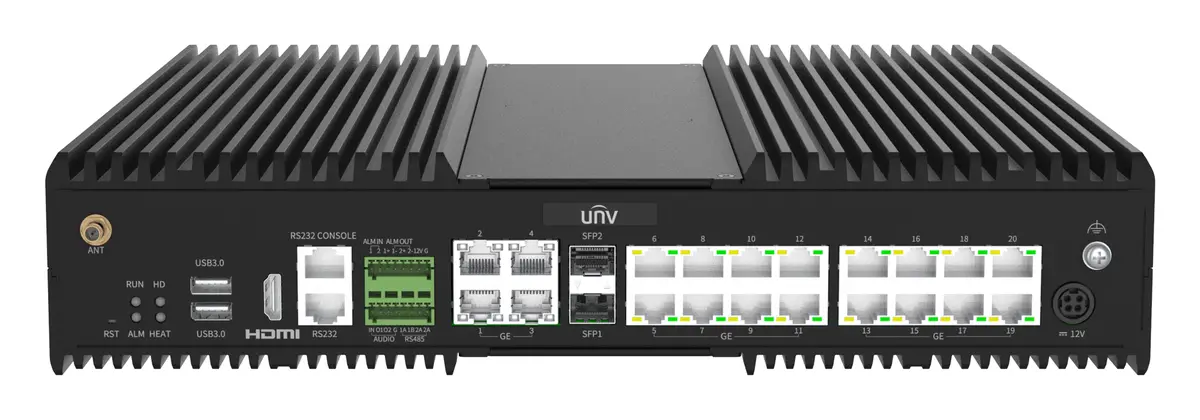

Uniview IVT2600@A-A16S-OS Trafik Terminali
Model
IVT2600@A-A16S-OSUniview IVT2600@A-A16S-OS trafik terminali: Embedded Linux OS, 24/7 stable operation, better protection against hacker and virus attacks., Dual NICs allow two physical networks., 20 * Gigabit Ethernet interfaces (RJ45) and 2 * Gigabit optical interfaces., Supports CIF, D1, 720P, 1080P, 2K, and 4K video.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Embedded Linux OS, 24/7 stable operation, better protection against hacker and virus attacks.
- Dual NICs allow two physical networks.
- 20 * Gigabit Ethernet interfaces (RJ45) and 2 * Gigabit optical interfaces.
- Supports CIF, D1, 720P, 1080P, 2K, and 4K video input.
- Powerful video processing functions, supports decoding mainstream video compression formats including H.265 and H.264.
- Supports text OSD, including plate numbers, time, location, etc.
- Supports composition of multiple images.
- Supports direct iSCSI block storage, instant video retrieval and playback.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 2 satır
| Model | IVT2600@A-A16S-OS |
|---|---|
| Ürün Tanımı (Üretici) | 16-CH Traffic Recording Terminal Server |
Device Specifications 6 satır
| Video decoding | H.264, H.265 |
|---|---|
| Camera connection | Max 16 channels |
| Image composition | Supports composition of 2, 3, 4, or 6 images |
| Image operations | Image storage, search, view, export, and uploads |
| Image OSD | Text OSD including plate number, time, location, etc., on single or composite images |
| Hard disk storage | Supplied with 1*4TB hard disk; Expansion to 4 * 3.5” SATA disk, up to 8TB each |
External interfaces 7 satır
| Ağ Arayüzü | Dual NICs with support for dual-network isolation dual-network interconnection.; NIC1: 16 * Gigabit Ethernet interfaces (RJ45).; NIC2: 2 * Gigabit optical interface, 4 * Gigabit Ethernet interfaces (RJ45). |
|---|---|
| USB Arayüzü | 2 * USB 3.0, compatible with USB 2.0 |
| Serial interface | 2 x RS-232, 2 x RS-485 |
| Alarm input | 2 x alarm input (phoenix connector) |
| Alarm output | 2 x alarm output (phoenix connector) |
| Güç Çıkışı | DC12V, 500mA |
| Power input | DC12V, 10A |
Hardware Parameter 5 satır
| Güç Tüketimi | < 30W (with 1 HDD, and heating module off); < 85W (with 1 HDD, and heating module on); < 110W (with HDD fully configured, and heating module on) |
|---|---|
| Çalışma Sıcaklığı | -30ºC to 70ºC |
| Çalışma Nemi | 5% to 95% (noncondensing) |
| Ağırlık | With 1 supplied HDD: < 7kg; Fully loaded with HDD: < 9kg |
| Boyutlar | 350mm(W) × 320mm(D) × 72mm(H) |
Sertifikalar 2 satır
| EMC | CE EMC：; EN 55032: 2015+A11:2020+A1:2020; EN 55035: 2017+A11:2020; EN 61000-3-3: 2013+ A1:2019+A2:2021; EN IEC 61000-3-2: 2019+A1:2021 |
|---|---|
| Güvenlik Sertifikası | CE LVD：EN IEC 62368-1:2020+A11:2020 |
Genel bakış
Uniview IVT2600@A-A16S-OS kullanım alanları ve özellikleri.
Uniview IVT2600@A-A16S-OS, trafik terminali modelidir.
Üretici tanımı: 16-CH Traffic Recording Terminal Server
Öne Çıkan Özellikler
- Embedded Linux OS, 24/7 stable operation, better protection against hacker and virus attacks.
- Dual NICs allow two physical networks.
- 20 * Gigabit Ethernet interfaces (RJ45) and 2 * Gigabit optical interfaces.
- Supports CIF, D1, 720P, 1080P, 2K, and 4K video input.
- Powerful video processing functions, supports decoding mainstream video compression formats including H.265 and H.264.
- Supports text OSD, including plate numbers, time, location, etc.
- Supports composition of multiple images.
- Supports direct iSCSI block storage, instant video retrieval and playback.
- Supports image storage, search, view, export, and upload.
- Supports data acquisition through serial port.
- Supports S.M.A.R.T.
- Supplied with 1*4TB hard disk.
- Die-cast aluminum chassis with elegant appearance, effective shields electromagnetic interferences to ensure stable and reliable operation.
Tüm özellikler
- Embedded Linux OS, 24/7 stable operation, better protection against hacker and virus attacks.
- Dual NICs allow two physical networks.
- 20 * Gigabit Ethernet interfaces (RJ45) and 2 * Gigabit optical interfaces.
- Supports CIF, D1, 720P, 1080P, 2K, and 4K video input.
- Powerful video processing functions, supports decoding mainstream video compression formats including H.265 and H.264.
- Supports text OSD, including plate numbers, time, location, etc.
- Supports composition of multiple images.
- Supports direct iSCSI block storage, instant video retrieval and playback.
- Supports image storage, search, view, export, and upload.
- Supports data acquisition through serial port.
- Supports S.M.A.R.T.
- Supplied with 1*4TB hard disk.
- Die-cast aluminum chassis with elegant appearance, effective shields electromagnetic interferences to ensure stable and reliable operation.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
IVT2600@A-A16S-OS hakkında kısa yanıtlar.
IVT2600@A-A16S-OS fiyatı ne kadar?
IVT2600@A-A16S-OS için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
