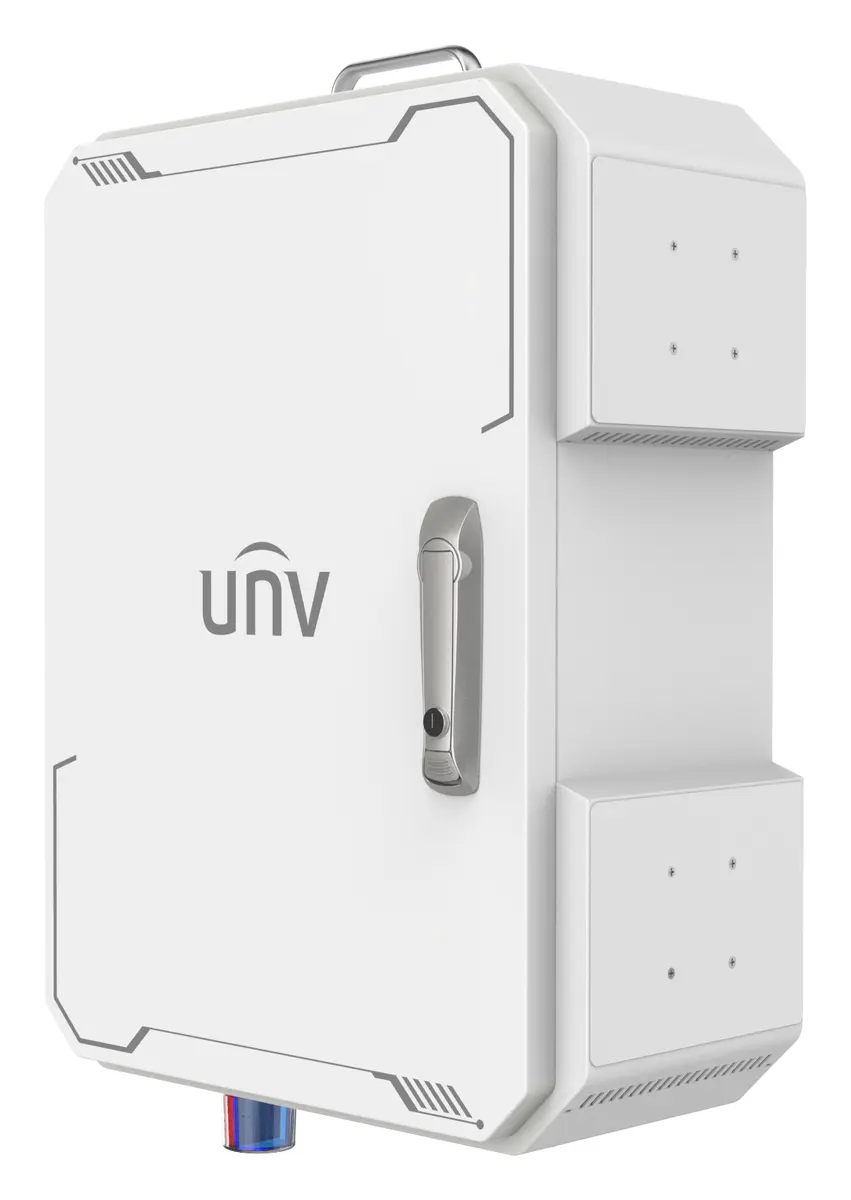

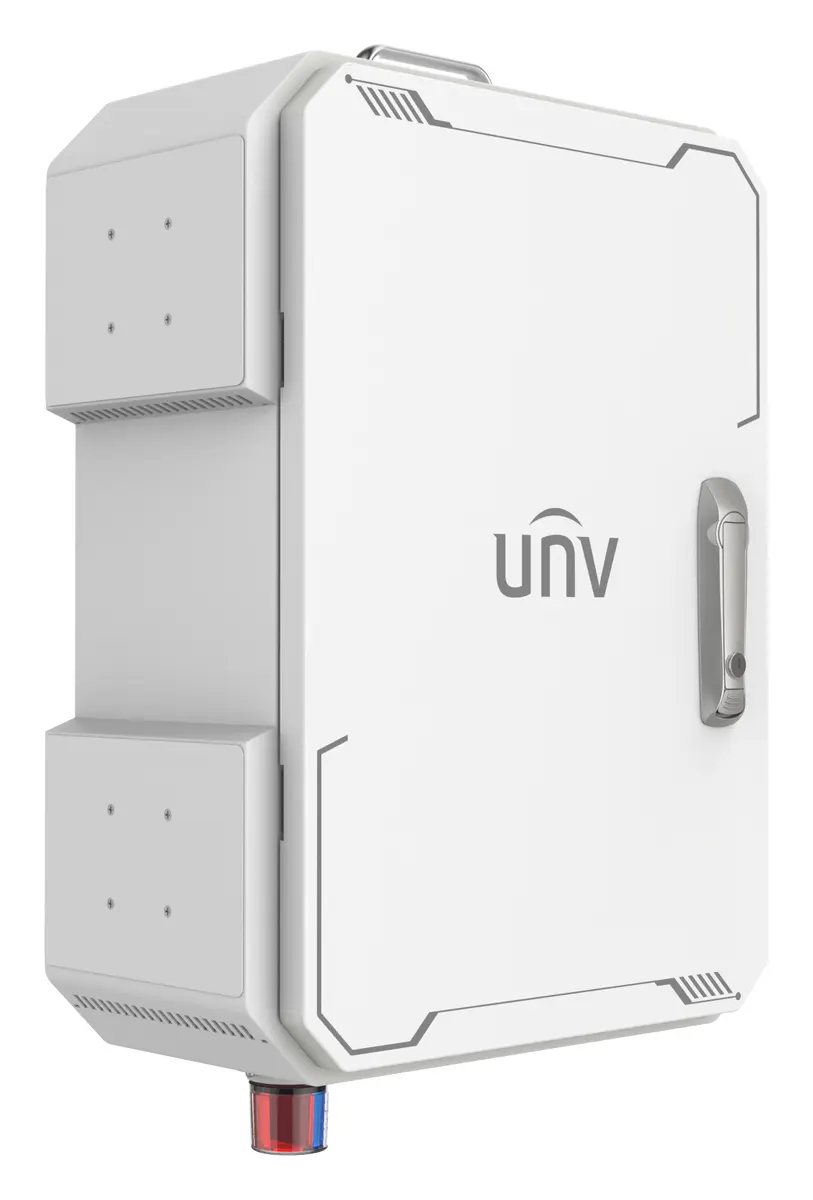

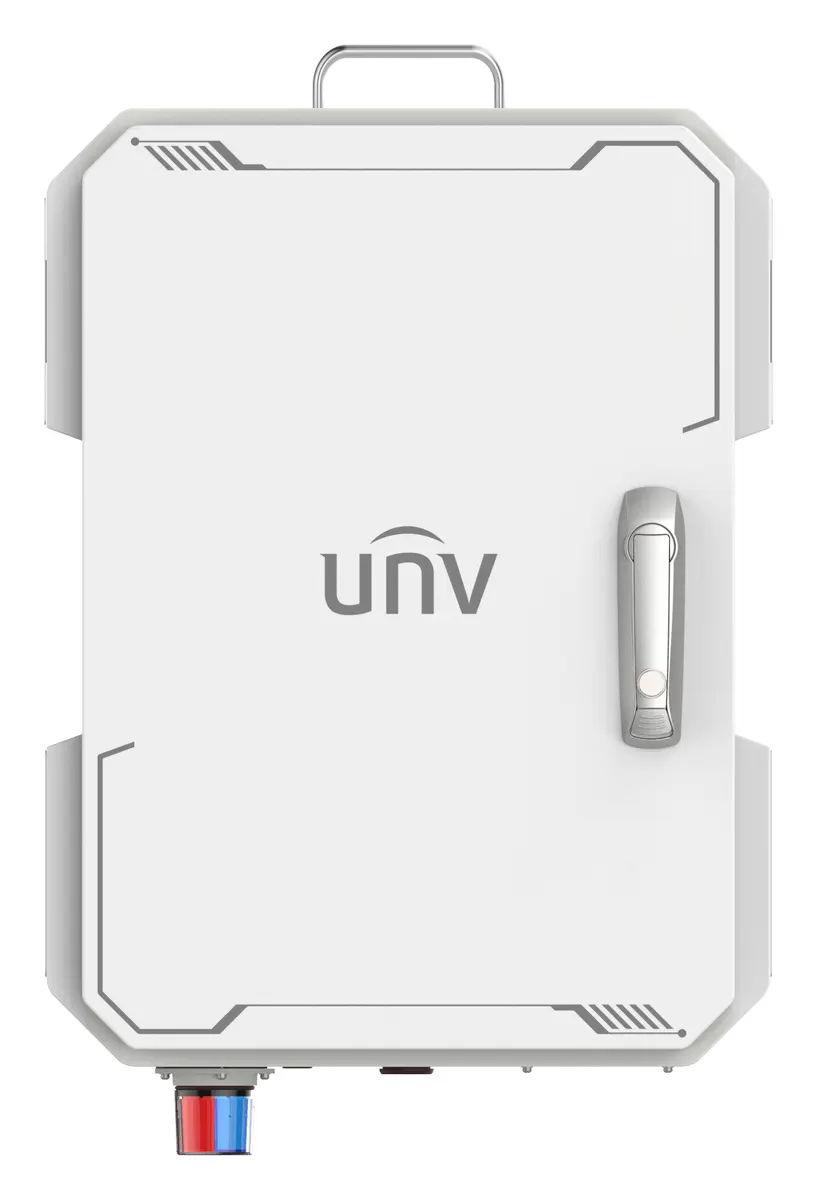

Uniview SMBOX01-R-EU Akıllı Enerji / Dağıtım Kutusu
Model
SMBOX01-R-EUUniview SMBOX01-R-EU akıllı enerji / dağıtım kutusu: Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box., Users can remotely monitor the working status.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box.
- Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud.
- Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them.
- Supports manual restart of PoE port. If devices such as IPC or IP Speaker are faulty, users can manually restart the PoE power output port of the cloud management server via mobile app and EZCloud.
- Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent.
- Integrated design eliminates the need for manual wiring, simplifying installation for users.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 9 satır
| Model | SMBOX01-R-EU |
|---|---|
| Aşırı Gerilim Koruması | 6 kV |
| Çalışma Sıcaklığı | When using HDDs: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉); When using SSDs: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Çalışma Nemi | ≤ 90% RH (non condensing) |
| Weight (Without Camera) | ≤ 16 kg (35.27 lb) |
| Boyutlar | 650 (H) × 424 (W) × 230 (D) mm |
| Slot dimensions | The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 2 LAN ports. |
| Rating | IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements. |
| Sertifikalar | CE-EMC, FCC |
Power Input 2 satır
| Input Type | AC 100 V to 240 V |
|---|---|
| Input Port | 3-pin Connector, For the final installation, a UL 489-certified, 20-ampere circuit breaker must be be installed at the front end. |
Power Output 5 satır
| Socket | 1-ch 5A, EU socket |
|---|---|
| DC 12V | 1-ch 2.5A, DC5521, Used for powering the router |
| PoE | 8 RJ45 10M/100M self adaptive Ethernet Interface |
| PoE Power | Max 30 W for single port, Max 75 W in total |
| PoE Standardı | IEEE 802.3at, IEEE 802.3af |
Dedicated Power Interface (Pre-Wired Internal Cabling) 5 satır
| Fan Power Interface | DC12V, 2.5A |
|---|---|
| Heater Power Interface | AC 100 ~ 240V to DC 12V, 8A |
| NVR Power Interface | AC 100 ~ 240V to DC 48V, 2.3A |
| Router Power Interface | DC12V, 2.5A |
| Warning Light Power Interface | DC12V, 2.5A |
Fonksiyonlar 1 satır
| System Functional Description | Overvoltage and Overload Protection,Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Thermostatic Heater,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis |
|---|
SMSERVER 24 satır
| Kod Çözme Formatı | Ultra 265, H.265, H.264 |
|---|---|
| Kod Çözme Kapasitesi | Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30; Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30 |
| Ses Sıkıştırma | G.711A, G.711U |
| Bandwidth | 80 Mbps |
| Protokoller | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| IP Video Girişi | 8-ch |
| FTP/Zamanlı/Olay Anlık Görüntü | 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| Kayıt Çözünürlüğü | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Kamera Tabanlı Akıllı Analiz | Face Detection,Face detection,Vehicle Detection,SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area),Ultra Motion Detection (UMD),Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection),People Counting (People Flow Counting, Crowd Density Monitoring),Video Metadata,Traffic Monitoring |
| Smart by SMBOX | Face Detection,Face detection,Ultra Motion Detection (UMD),Smart Intrusion Prevention (SIP) |
| VCA Arama | Face detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch |
| face detection by SMBOX with face detection cameras | 8-ch |
| face detection by SMBOX with normal cameras | 2-ch |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by SMBOX | 4-ch |
| UMD by SMBOX | 8-ch |
| Capacity of Snapshot Records | 500 thousand records for face snapshot, One and a half millions records for SIP and vehicle |
| Genel Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion; Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Uyarı Alarmı | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk; Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| Ağ Arayüzü | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | 1 × USB2.0, 1 × USB3.0 |
| Alarm Girişi | 4-ch |
| Alarm Çıkışı | 2-ch |
| ONVIF | Support |
Sabit Disk 1 satır
| Hard Disk | 1 x SATA interface, up to 16TB HDD (2.5" or 3.5"), or up to 4TB SSD (2.5") |
|---|
Power Lightning Protector 3 satır
| Maximum discharge current | 40 kA |
|---|---|
| Rated discharge current | 20 kA |
| Response time | L-PE ≤ 25 ns, N-PE ≤ 25 ns |
Consumption 3 satır
| No-load power consumption | At ambient temperature of 25°C: 13.7 W (No HDD, No HDD heating, No Heater, No Fan, No Alarm Light) |
|---|---|
| Full-load power consumption | At ambient temperature of 25°C: 247.2 W (16T HDD, HDD Heating, Heater, Full POE Output (75W), Fan, Alarm Light) |
| SMSERVER power consumption | At ambient temperature of 25°C:; ≤8W (No HDD+ No POE Output); 96.5W (Full POE Output + 16T HDD); 122.2W (Full POE Output + 16T HDD + Heating Film) |
Adaptable Mounting Bracket 4 satır
| Left side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
|---|---|
| Right side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
| Bottom | Up to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ) |
| Top | Support the installation of an IP speaker, no mounting bracket required. |
Genel bakış
Uniview SMBOX01-R-EU kullanım alanları ve özellikleri.
Uniview SMBOX01-R-EU, akıllı enerji / dağıtım kutusu modelidir. Öne çıkanlar: IP kanal girişi 8-ch.
Öne Çıkan Özellikler
- Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box.
- Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud.
- Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them.
- Supports manual restart of PoE port. If devices such as IPC or IP Speaker are faulty, users can manually restart the PoE power output port of the cloud management server via mobile app and EZCloud.
- Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent.
- Integrated design eliminates the need for manual wiring, simplifying installation for users.
