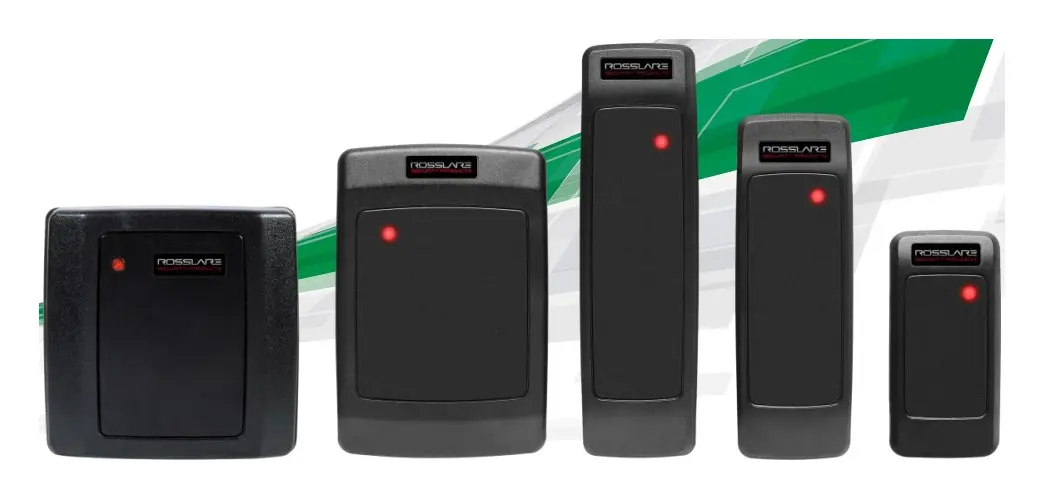

Rosslare AY-K25B Outdoor MIFARE Classic EV1 Contactless Smart Card Readers Kart Okuyucu

ModelAY-K25B

Rosslare AY-K25B kart okuyucu: Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol, Read range between of 6 to 7 cm (2.4 to 2.8 in.) Smart Card Reader Family AY-H25B AY-L25B AY-J25B AY-K25B capable of reading MIFARE Classic ® EV1 smart access control system. With 7 selectable.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol
Read range between of 6 to 7 cm (2.4 to 2.8 in.) Smart Card Reader Family AY-H25B AY-L25B AY-J25B AY-K25B capable of reading MIFARE Classic ® EV1 smart access control system. With 7 selectable output reading only the req
Programmable output formats including standard Wiegand 26-Bit
Selectable LED control and buzzer control functions
Made of tough Polycarbonate plastic for improved performance in all weather conditions
Optical back tamper detection
Bi-colored LED and buzzer control input
Internal buzzer

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 3 satır

Çalışma Gerilimi Aralığı	5 to 16 VDC from a regulated power supply
Bekleme Akımı	35 mA
Maximum Input Current Open	55 mA collector, active low, max. sink current 16 mA

Çalışma Özellikleri 5 satır

Programmable Inputs	LED and buzzer control inputs, N.O, Dry Contact
Indicators Selectable transmission	Tri-colored LED indicators formats: Wiegand 26-Bit w/site code, Fixed 26-bit,
Output Format 32-Bit, Compatible	32-Bit reversed, 34-Bit, 40-Bit and Clock & Data Cards: MIFARE Classic EV1 Compatible ISO-14443A
Proximity Card Reader Range also depends 65 mm	on electrical environment and proximity to metal. 60 mm 70 mm 70 mm 60 mm
Max. Read Range (2.6 in.)	(2.4 in.) (2.8 in.) (2.8 in.) (2.4 in.)

Çevresel Özellikler 3 satır

Water Operating Environment	resistant, suitable for outdoor use (meets IP65)
Çalışma Sıcaklığı	-31°C to 63°C (-25°F to 145°F)
Çalışma Nemi	0% to 95% (non-condensing)

Fiziksel Özellikler 3 satır

89 x 89 x 15 120.0	x 42.0 x 110 x 75 x 15 145 x 43 x 20 80 x 40 x 12.8
Dimensions (H x W x D) mm (3.5 x 3.5 x 0.6 (4.7 in.) 109.1 g	14 mm mm mm mm x 1.7 x 0.6 (4.3 x 3.0 x 0.6 (5.7 x 1.7 x 0.8 (3.2 x 1.6 x 0.5 in.) in.) in.) in.) 90.2 g 116.9 g 111.1 g 68.5 g
Weight (3.8 oz.) The AY-x25B series of	(3.2 oz.) (4.1 oz) (3.9 oz) (2.4 oz) readers are compatible with a variety of Rosslare's controllers

Genel 1 satır

Garanti	5 yıl sınırlı garanti

Genel bakış

Rosslare AY-K25B kullanım alanları ve özellikleri.

Rosslare's AY-x25B is a family of reliable readers capable of reading MIFARE Classic EV1 smart card Contactless cards utilizing any standard access control system. With 7 selectable output formats, it is suited to most existing systems by reading only the required information from the card. The AY-x25B readers are fully potted, sealed, and made of rigid, UV resistant poly-carbonate housing, which make them highly suitable for outdoor use. With a 6- to 7-cm (2.4-2.8 in.) read range, the readers are a very simple, reliable, and cost-effective way to upgrade your system to the smart card standard.

The AY-x25B series of readers are contactless MIFARE Classic EV1 readers supporting ISO14443A 13.56 MHz standard, capable of reading card serial number and sending it to a control panel using either Wiegand or Clock & Data formats.

The adaptable AY-x25B is the answer for organizations seeking a uniform reader compatible with various international locations and mounting standards.

Made of tough polycarbonate UV plastic and completely waterproof, the durable readers can withstand harsh weather conditions as well as tamper attempts.

Main Features

Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol
Read range between of 6 to 7 cm (2.4 to 2.8 in.) Smart Card Reader Family AY-H25B AY-L25B AY-J25B AY-K25B capable of reading MIFARE Classic ® EV1 smart access control system. With 7 selectable output reading only the required information from and made of rigid, UV resistant poly-carbonate outdoor use. With a 6- to 7-cm (2.4-2.8 in.) read and cost-effective way to upgrade your system
Programmable output formats including standard Wiegand 26-Bit
Selectable LED control and buzzer control functions
Made of tough Polycarbonate plastic for improved performance in all weather conditions
Optical back tamper detection
Bi-colored LED and buzzer control input
Internal buzzer
PC software and programming adapter (MD-08B) for easy configuration
Weather-resistant

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol
Read range between of 6 to 7 cm (2.4 to 2.8 in.) Smart Card Reader Family AY-H25B AY-L25B AY-J25B AY-K25B capable of reading MIFARE Classic ® EV1 smart access control system. With 7 selectable output reading only the req
Programmable output formats including standard Wiegand 26-Bit
Selectable LED control and buzzer control functions
Made of tough Polycarbonate plastic for improved performance in all weather conditions
Optical back tamper detection
Bi-colored LED and buzzer control input
Internal buzzer
PC software and programming adapter (MD-08B) for easy configuration
Weather-resistant

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-K25B

Sık sorulanlar

AY-K25B hakkında kısa yanıtlar.

AY-K25B fiyatı ne kadar?

AY-K25B için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
