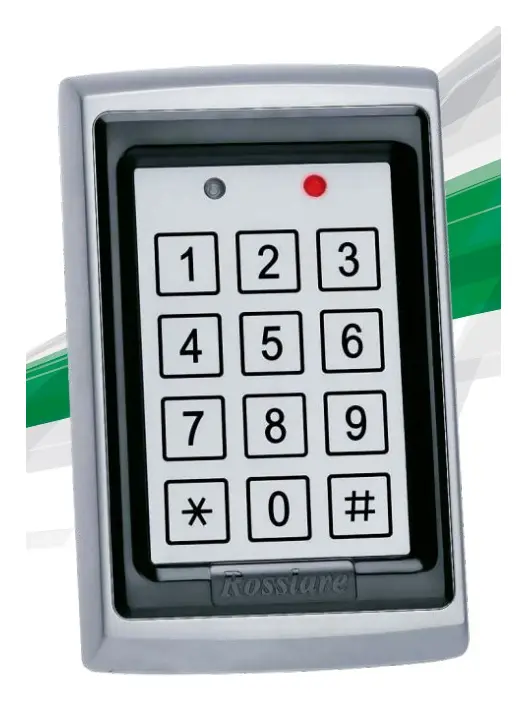

Rosslare AYC-Q65 Okuyucu / Kontrol Ünitesi

Part of the line of convertible readers/controllers, this unit can be operated as an outdoor proximity and PIN reader that connects to any standard controller, or it can convert into a fully-featured, 500-user standalone controller when connected to Rosslare’s PS-x25T family of intelligent power supply/relay units. This unit provides a most effective solution for indoor and outdoor access systems where proximity or PIN credentials are required. This attractive looking model features a unique blue illuminated piezoelectric keypad on a metallic, epoxy-filled, sealed housing.

For greater peace of mind, this sturdy access control unit provides a piezoelectric keypad with advanced access control features in an aesthetically designed housing.

The AYC-Q65 offers programmable Proximity & PIN transmission formats, LED control, and tamper detection, providing extra security and flexibility.

Come rain or shine, this unit can handle the challenge, with its extremely strong metallic housing and waterproof enclosure for maximum durability.

Main Features

• Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible piezoelectric keypad
• 2 tri-colored LEDs and an integral sounder for programming and operation this unit can be operated as that connects to any standard controller, 500-user standalone controller when intelligent power supply/relay units. for indoor and outdoor access are required. This attractive looking piezoelectric keypad on a metallic,
• User-friendly menu, based on LED and sounder indicators
• Back and cover optical tamper detection and output.
• Multi-format reader (Wiegand 26-Bit/Clock & Data/Card & PIN)
• Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
• 9 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 3x4 Matrix
• Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
• 60 cm (23.6 in.) shielded interface cable

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible piezoelectric keypad
• 2 tri-colored LEDs and an integral sounder for programming and operation this unit can be operated as that connects to any standard controller, 500-user standalone controller when intelligent power supply/relay units. fo
• User-friendly menu, based on LED and sounder indicators
• Back and cover optical tamper detection and output.
• Multi-format reader (Wiegand 26-Bit/Clock & Data/Card & PIN)
• Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
• 9 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 3x4 Matrix
• Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
• 60 cm (23.6 in.) shielded interface cable
