Kartlı & Parmak İzli Geçiş Proximity Readers (125KHz)

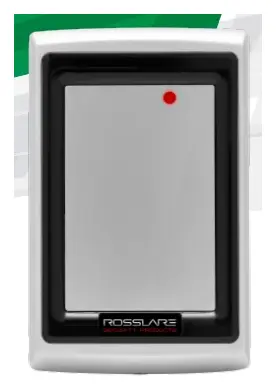

Rosslare AY-K12C Proximity Readers Series – 125 kHz Kart Okuyucu

ModelAY-K12C

Rosslare AY-K12C kart okuyucu: Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data, Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.), Wide range operating voltage: 5 to 16 VDC, 45 cm (18 in.) pigtail cable AY-H12C AY-L12C AY-K12C AY-Q12C RFID proximity card r.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
Wide range operating voltage: 5 to 16 VDC
45 cm (18 in.) pigtail cable AY-H12C AY-L12C AY-K12C AY-Q12C RFID proximity card readers of EM are highly flexible with behavior a tough UV-resistant and water- suited for indoor and outdoor use.
RF Modulation: ASK at 125 kHz
Internal sounder with external control option
Tri-color LED with external control inputs
External reader hold control

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 6 satır

Çalışma Gerilimi Aralığı	5–16 VDC, from a regulated power supply
Bekleme Akımı	60 mA @ 12 V
Maksimum Giriş Akımı	120 mA @ 12 V Maximum read range*: 8 cm (3.2 in.) to 10 cm (3.9 in.) Modulation: ASK at 125 kHz
Proximity Kart Okuyucu	Compatible cards: 26-Bit EM cards * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal.
Tamper Çıkışı	Open collector, active low, max. sink current 16 mA
LED Kontrol Girişi	Dry Contact, N.O.

Çalışma Özellikleri 3 satır

Çıkış Formatı	Wiegand 26-Bit, RS-232, or Clock & Data
Sesli / Görsel Gösterge	Tri-colored LED indicator, built-in sounder Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh
Tasarım	environments.

Çevresel Özellikler 3 satır

Kullanım Ortamı	Water resistant, suitable for outdoor use (IP65)
Çalışma Sıcaklığı	-31ºC to 63ºC (-25ºF to 145ºF)
Çalışma Nemi	0% to 95% (non-condensing)

Fiziksel Özellikler 2 satır

Boyutlar (Y x G x D)	(3.5 x 3.5 x 0.6 (4.3 x 3.0 x 0.6 (5.7 x 1.7 x 0.8 (3.2 x 1.6 x 0.5 (4.7 x 3.0 x 0.8 in.) in.) in.) in.) in.)
Ağırlık	109 g (3.9 oz) 100 g (3.5 oz) 116 g (4.1 oz) 70.5 g (2.5 oz) 480 g (17.0

Genel 2 satır

Sistem Bileşenleri	The AY-x12C series is compatible with a variety of Rosslare's controllers, as well as with many third-party access control systems. A mounting spacer is available for installations over metallic surface for selected models.
Garanti	5-Year Limited Product Warranty

Genel bakış

Rosslare AY-K12C kullanım alanları ve özellikleri.

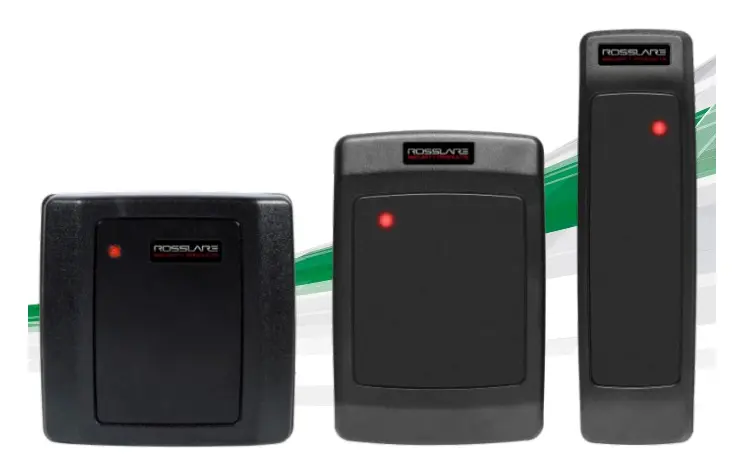

Rosslare's AY-x12C is a series of powerful RFID proximity card readers of EM 4102 125-kHz cards and tags. The readers are highly flexible with behavior control options. With a sleek design and a tough UV-resistant and water- resistant casing, the AY-x12C are equally suited for indoor and outdoor use.

The AY-x12C with selectable output formats (Clock & Data or Wiegand 26-Bit) reduce stocking costs, while offering various control options such as hold, buzzer and multi-LED color control.

The units are designed for easy mounting with hidden screws (security screws may be used to enhance strength). Optical tamper adds protection against wall removal, and the buzzer adds audible RFID card read notification. LED control provides system based information to the end user.

Main Features

Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
Wide range operating voltage: 5 to 16 VDC
45 cm (18 in.) pigtail cable AY-H12C AY-L12C AY-K12C AY-Q12C RFID proximity card readers of EM are highly flexible with behavior a tough UV-resistant and water- suited for indoor and outdoor use.
RF Modulation: ASK at 125 kHz
Internal sounder with external control option
Tri-color LED with external control inputs
External reader hold control
Optical wall tamper detection
Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications
Made of tough polycarbonate UV-resistant plastic
Comes with mounting template for easier installation

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
Wide range operating voltage: 5 to 16 VDC
45 cm (18 in.) pigtail cable AY-H12C AY-L12C AY-K12C AY-Q12C RFID proximity card readers of EM are highly flexible with behavior a tough UV-resistant and water- suited for indoor and outdoor use.
RF Modulation: ASK at 125 kHz
Internal sounder with external control option
Tri-color LED with external control inputs
External reader hold control
Optical wall tamper detection
Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications
Made of tough polycarbonate UV-resistant plastic
Comes with mounting template for easier installation

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-K12C

Sık sorulanlar

AY-K12C hakkında kısa yanıtlar.

AY-K12C fiyatı ne kadar?

AY-K12C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
