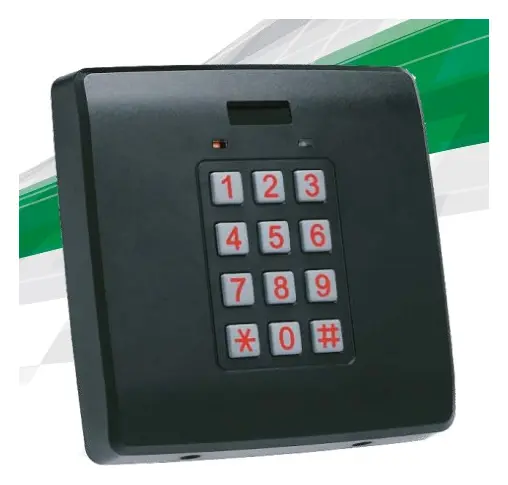

Rosslare AY-V64B Medium-Range Backlit Proximity & PIN Reader Kartlı ve Şifreli Okuyucu

The AY-V64B Medium-Range Backlit Proximity & PIN Reader is part of a highly sophisticated line of proximity card and keypad readers developed by Rosslare. Encased in an attractive modern shell, this advanced reader packs features such as keypad backlight, optical tamper detection, and an internal buzzer. The AY- V64B supports multiple proximity card and keypad formats, and provides a high level of compatibility and connectivity with host controllers.

Rosslare’s AY-V64B Proximity & PIN Reader is designed with a focus on high quality and reliability.

Easy to install and operate, the AY-V64B Proximity & PIN Reader features state-of-the art design and a comparatively small footprint.

Versatile and user friendly, the unit can be programmed to transmit proximity card data in 26-Bit Wiegand, Clock & Data, or Wiegand Card plus PIN format.

The backlit keypad can also be programmed to output eight different data formats. For added convenience, the reader contains two LED indicators that show the unit’s status during standby mode as well as during programming.

Main Features

• Programmable output format: 26-bit Wiegand, Clock & Data, Wiegand Card + PIN
• Read range of 22 cm (9 in.)
• Built-in red backlit keypad for PIN code entry
• LED control input PIN Reader Proximity & PIN Reader is part of a highly keypad readers developed by Rosslare. this advanced reader packs features such and an internal buzzer. The AY- and keypad formats, and provides a with host controllers.
• Programmable Facility code
• 8 programmable keypad transmission formats
• Built-in 125 kHz, ASK type EM RFID proximity reader
• Two tri-colored LEDs
• Internal buzzer provides audible feedback when a key is pressed
• Case and optical back tamper output
• 46-cm (18”) pigtail cable
• Weather-resistant with epoxy potting (meets IP54)
• Installation kit included
• Comes with a convenient mounting template

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Programmable output format: 26-bit Wiegand, Clock & Data, Wiegand Card + PIN
• Read range of 22 cm (9 in.)
• Built-in red backlit keypad for PIN code entry
• LED control input PIN Reader Proximity & PIN Reader is part of a highly keypad readers developed by Rosslare. this advanced reader packs features such and an internal buzzer. The AY- and keypad formats, and provides a wi
• Programmable Facility code
• 8 programmable keypad transmission formats
• Built-in 125 kHz, ASK type EM RFID proximity reader
• Two tri-colored LEDs
• Internal buzzer provides audible feedback when a key is pressed
• Case and optical back tamper output
• 46-cm (18”) pigtail cable
• Weather-resistant with epoxy potting (meets IP54)
• Installation kit included
• Comes with a convenient mounting template
