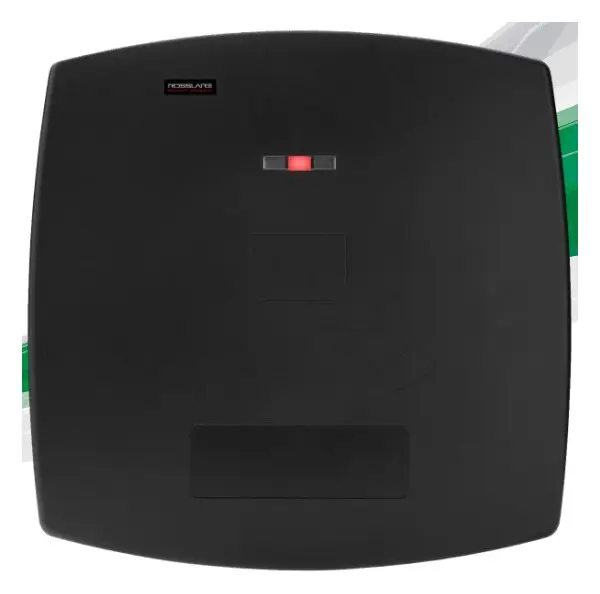

Rosslare AY-Z12A Long Range Outdoor Proximity Reader Uzun Mesafe Okuyucu

The AY-Z12A is the low-cost solution for security PROFFESIONAL GRADE FEATURES situations that require a relatively compact, Long- RF Modulation: ASK at 125 kHz Range proximity reader.

Compatible with standard, passive EM type, cards The state-of-the-art design and small footprint is and tags ideal for indoor/outdoor access control that is both easy to install and easy to use. Internal buzzer The AY-Z12A features an output format of standard LED control input Wiegand 26 Bits, which will allow it to work with Optical wall tamper detection most common controllers. For added convenience, Made of tough polycarbonate UV-resistant plastic the reader also contains tri LED indicators that provide the unit’s status upon power up and the status for card reading attempts.

Main Features

• Wiegand 26 Bit output format
• RFID read range:
• Up to 60 cm (23.6 in.) in single mode
• Up to 45 cm (17.7 in.) in multiple mode
• Operating voltage range of 10 to 16 VDC
• 60 cm (23.6 in.) shielded interface cable

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.
